Installing the Device

3-6

Installation

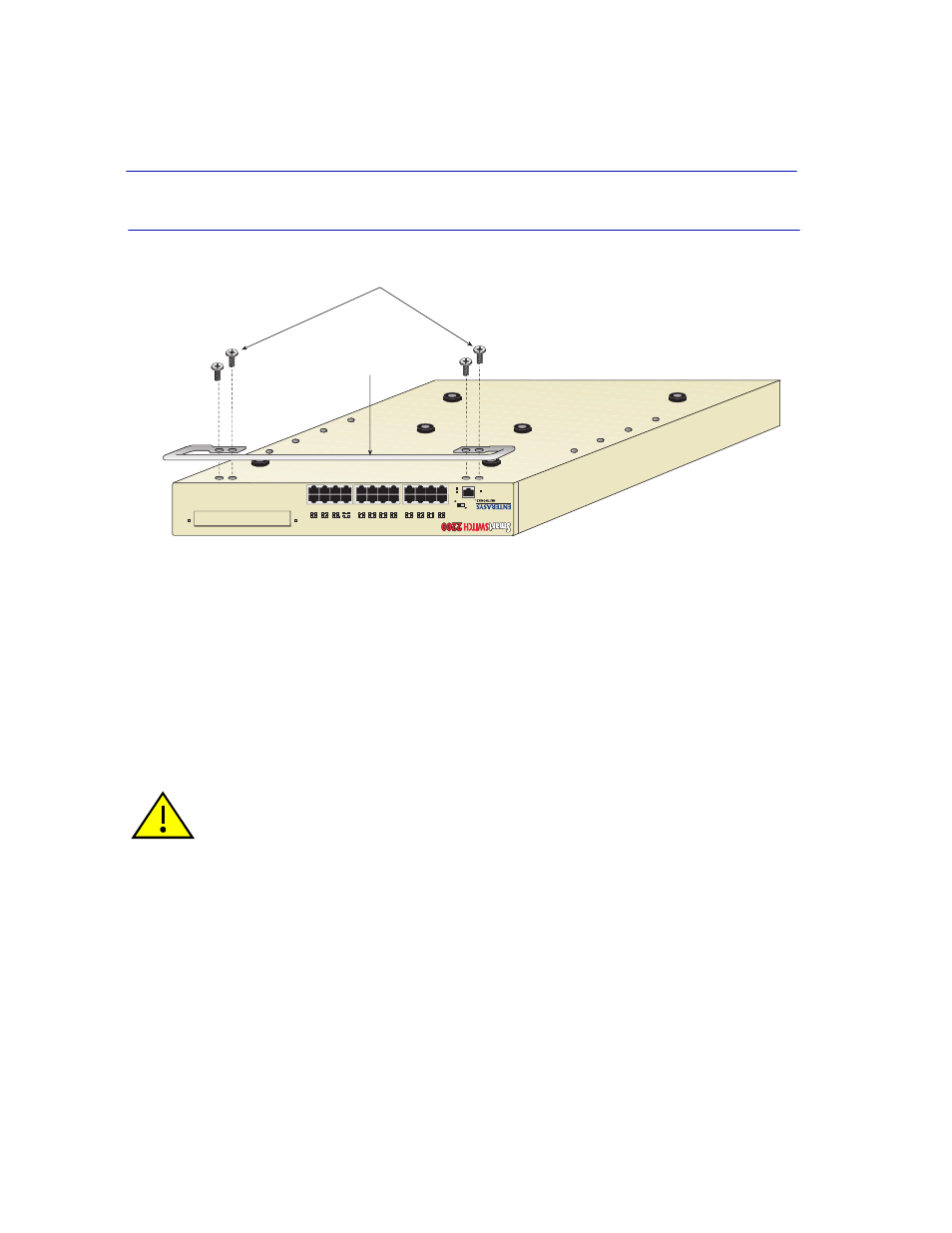

Figure 3-2

Attaching the Strain-Relief Bracket

Rack Mounting the 2H252-25R

Proceed as follows to install the 2H252-25R into a 19-inch rack:

1. There are several mounting holes in the rackmount brackets and the bottom of the chassis so that

each mounting bracket may be adjusted forward or backward to mount the device further into,
or out of the rack, depending on the installation requirements. Position the rackmount brackets
over the appropriate holes.

2. Locate the four 6-32 x 1/4-inch flathead screws in the rackmount kit. Use these screws to attach

the rackmount brackets to the bottom of the 2H252-25R as shown in

Figure 3-3

CAUTION: Do not attempt to attach the rackmount brackets with screws other than the

6-32 x 1/4-inch flathead

screws shipped with the 2H252-25R. Use of longer screws may

damage the unit.

Strain-Relief

Bracket

Strain-Relief

Bracket Screws

4005_00_03

RESET

COM

PWR

CPU

2H252-25R

2X 4X 6X 8X 10X 12X 14X 16X 18X 20X 22X 24X

1
2

3
4

5
6

7
8

15
16

21
22

23
24

11
12

19
20

17
18

13
14

LED

MODE

RX-TX

DPX-SPD

FAST ETHERNET WORKGROUP

SWITCH
