11

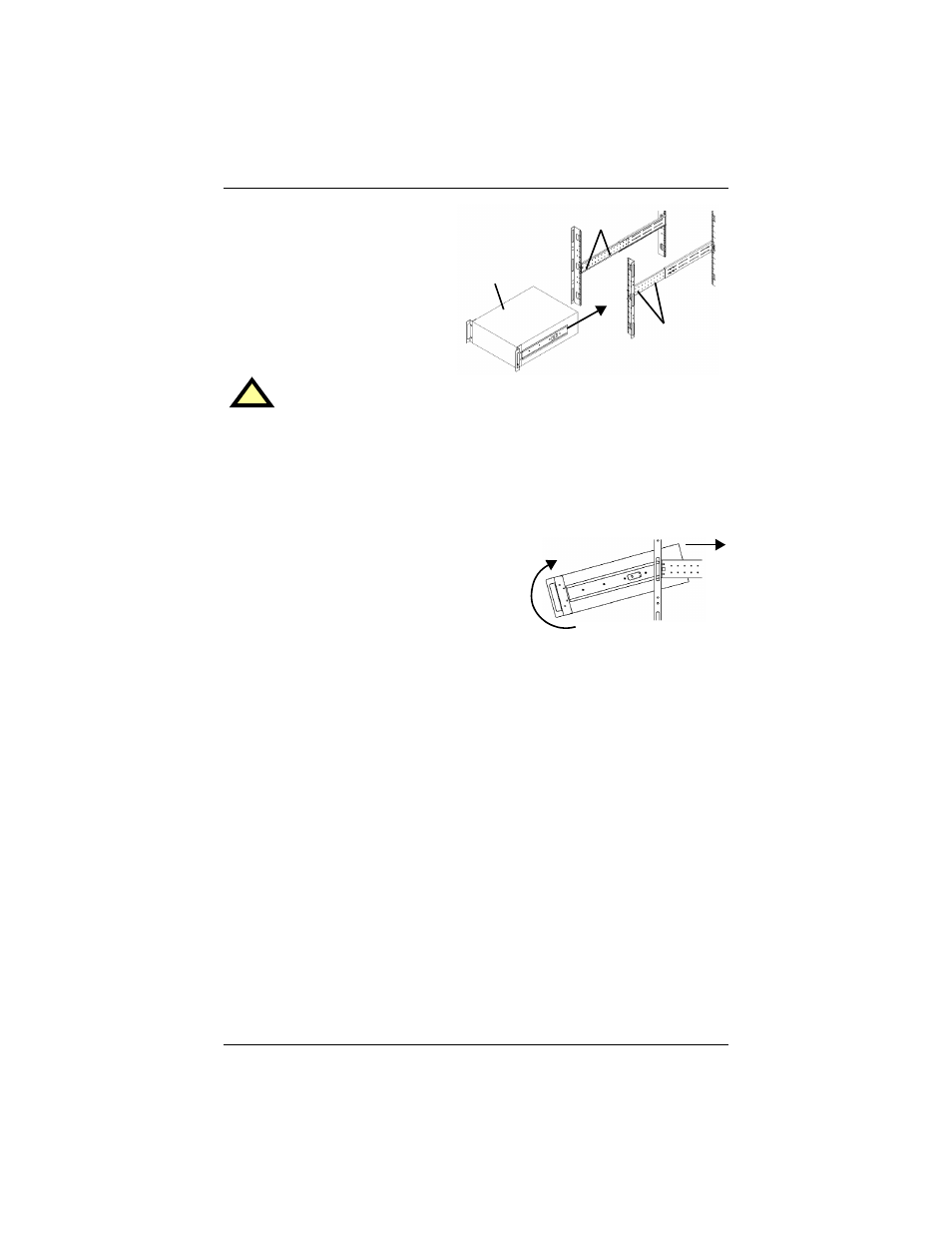

6. Open grease packet provided
in this kit. Apply a 1" long
bead of grease four (4) places
inside the bottom, curved
tracks of front members as
shown at right. The grease
will allow the equipment to
slide into the bracket assem-
blies more easily.
7. Insert the equipment, with inner members attached from Step 5, into
bracket assemblies by inserting top and bottom edges of inner members
into the top and bottom, curved tracks of front members and sliding the
equipment into rack (see figure in Step 6). Ends of inner members are
tapered to allow rear of the equipment to be angled upward before inser-
tion, if space allows.
Then the rear, bottom edges of inner mem-
bers can be placed into front edge of bottom
tracks, and the front of the equipment can
be tipped up into horizontal position to
insert the top edges of inner members
before sliding the equipment into rack (see
figure at right). The equipment should
move smoothly into bracket assemblies. If not, recheck alignment of front
and rear members from Steps 3 and 4.
8. Secure front of the equipment to rack mounting rails to prevent the equip-
ment from sliding out of position. If securing holes are provided on front of
the equipment that align with the center holes on return flange of front
members, you can use the four (4) extra M5 screws provided in this kit to
secure the equipment. Otherwise, the equipment should be secured to front
of rack mounting rails with four (4) customer-supplied fasteners.
!
CAUTION
Lifting equipment into rack may be a two-person job, depending
on weight of equipment. See equipment’s user manual.
UPS or
battery
cabinet
Apply
grease
(inside)
Apply
grease
