F IRE B ALL -MP I NSTALLATION & U SER ’ S G UIDE - M22002-01A1
C HAPTER 2 - S ETTING U P F IRE B ALL -MP
Connecting to Ethernet Networks
FireBall-MP has an Ethernet jack which is used to connect to the FireBall server and to
allow internet access through your Ethernet LAN.

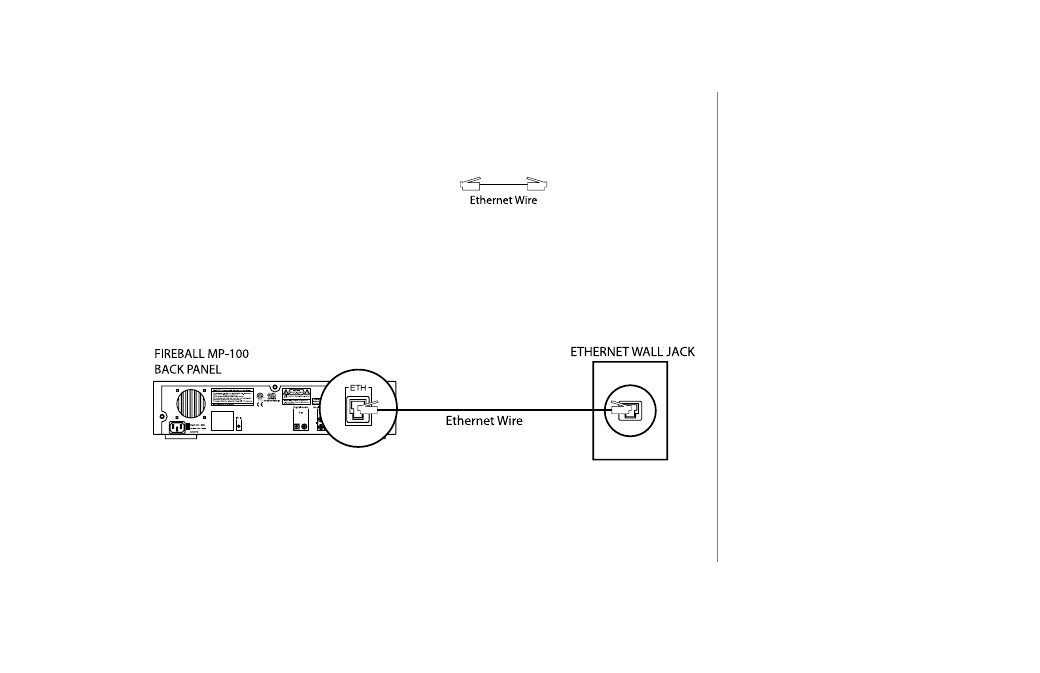

u Use the Ethernet Cable.
(Can be identified by see-through connectors. This
is the larger of the two cables with see-through
connectors, also known as an RJ-45 cable)
v
Connect one end of the ethernet cable to the FireBall-MP Ethernet jack.
w Connect the other end of the ethernet cable to an Ethernet network.
