Escient MP-100 - Manual (Page 26)

P AGE 26
F IRE B ALL -MP I NSTALLATION & U SER ’ S G UIDE - M22002-01A1
C HAPTER 2 - S ETTING U P F IRE B ALL -MP

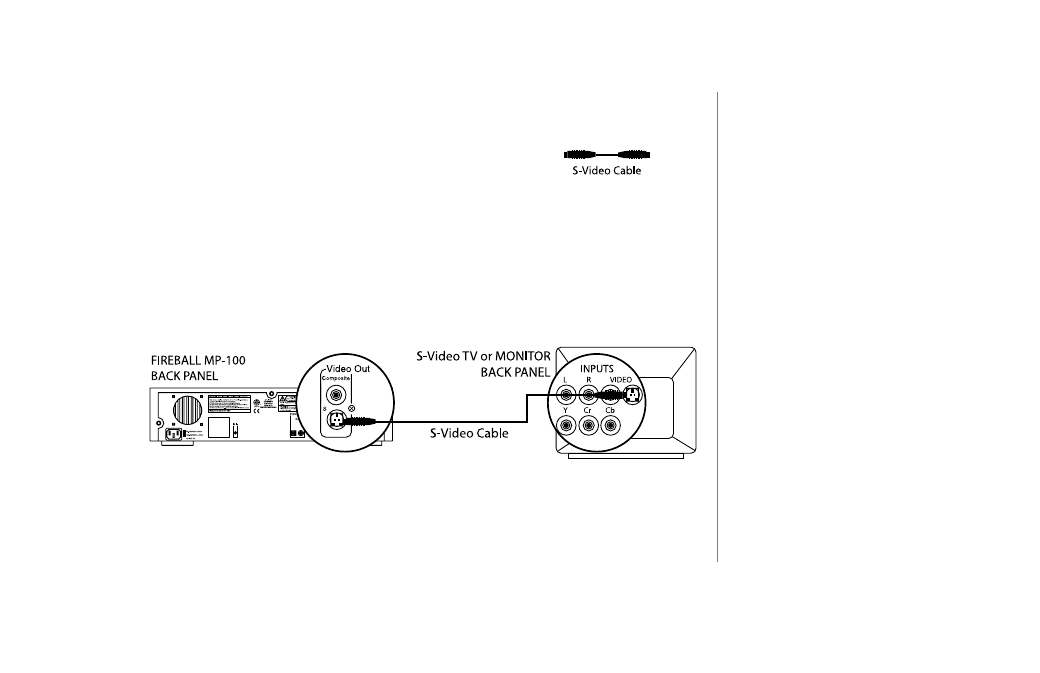

Connecting FireBall-MP to an S-Video TV or Monitor
u
Use the S-Video Cable, which can be identified as a
gold cup connector with tiny pins inside.
v
Connect one end of the cable to the FireBall-MP Video Out (S-Video) port.
w
Connect the other end of the cable to the S-Video In port on your TV or AV
Receiver.
2
Whenever possible, use the S-
Video cable to connect FireBall-MP
to a TV or AV Receiver. S-Video
will provide better image quality
than Composite video.
