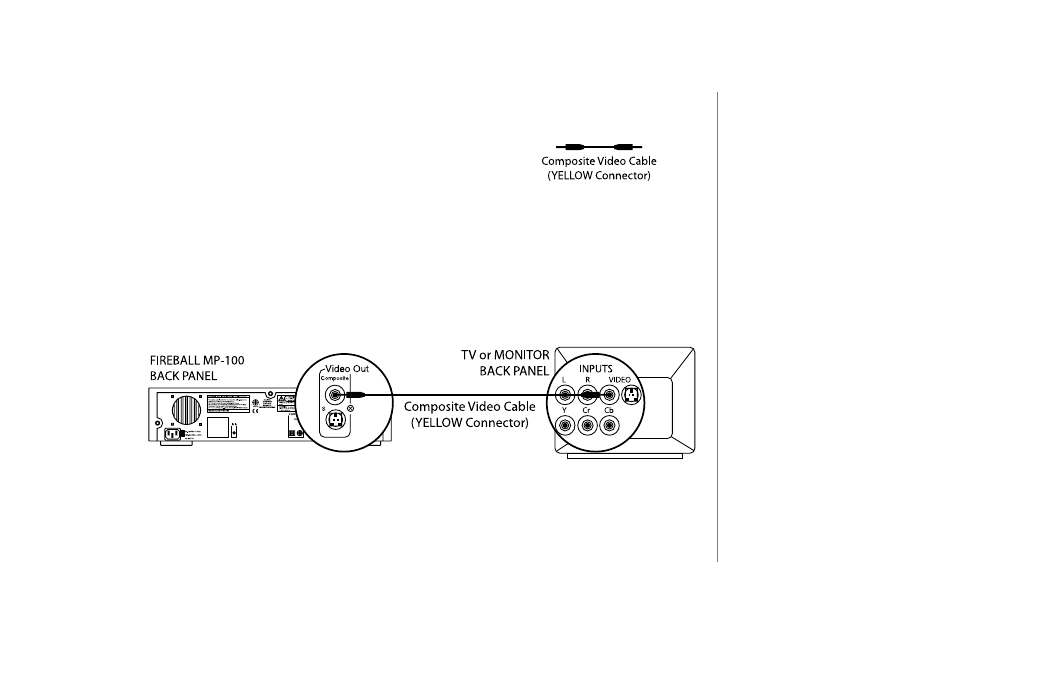

Connecting FireBall-MP to a Composite TV or Monitor
u
Use the Composite Video Cable, which can be
identified through its yellow colored connectors.
v
Connect one end of the cable to the FireBall-MP Video Out (Composite) port.
w
Connect the other end of the cable to the Video In (Composite) port on your
TV or AV Receiver.
2
The cables you receive are black.
The connectors on the cables are
the only portions that are “colored.”
2
If connecting FireBall-MP to a
TV or AV Receiver, there may be
several VIDEO IN ports. Use a
VIDEO IN port that is not currently
being utilized.
