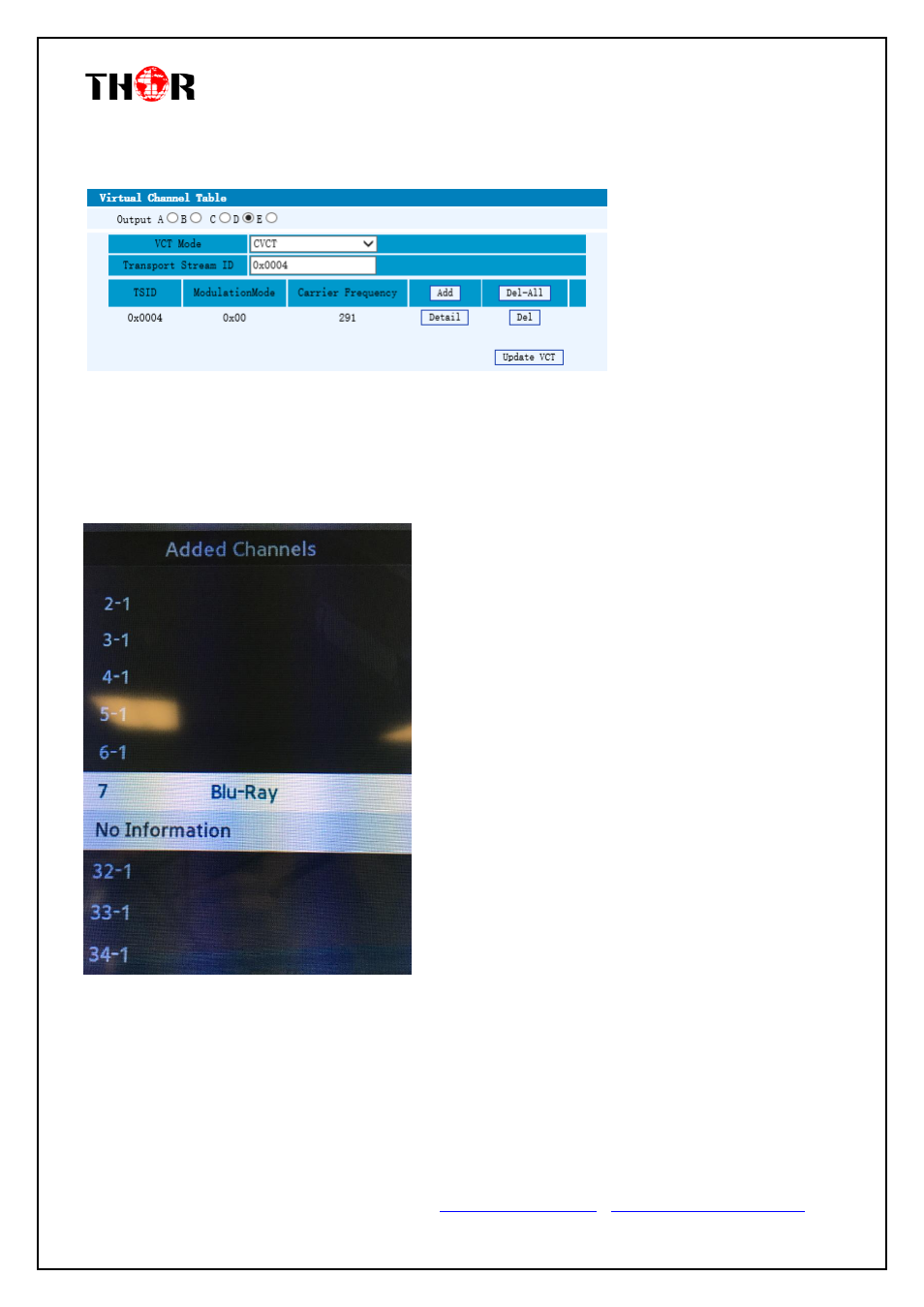

VCT Table should look like this:
Now when you fire up the television and begin scrolling through the channel list you’ll see our newly created VCT
Channel, as shown below 7, 32, 33, & 34
Again this is just an example, but you can see that there is no
channel 35, because it has been digitally remapped to appear
as channel 7 from Channel 35 or frequency 291.
Also note that because we added a title in – Blu Ray appears
by channel # 7 on the TV set channel list
When you are scrolling through the TV channels we notice
how under Channel 7 Blu-Ray also appears above it.
