1. OVERVIEW
Supplied with the CL Companion:
Field bag, carrying strap or side strap
(depending on the model), lens-cleaning
cloth, soap, brush.
The strap is not attached to the CL Com-
panion during delivery. You can easily
attach the strap or special accessories.

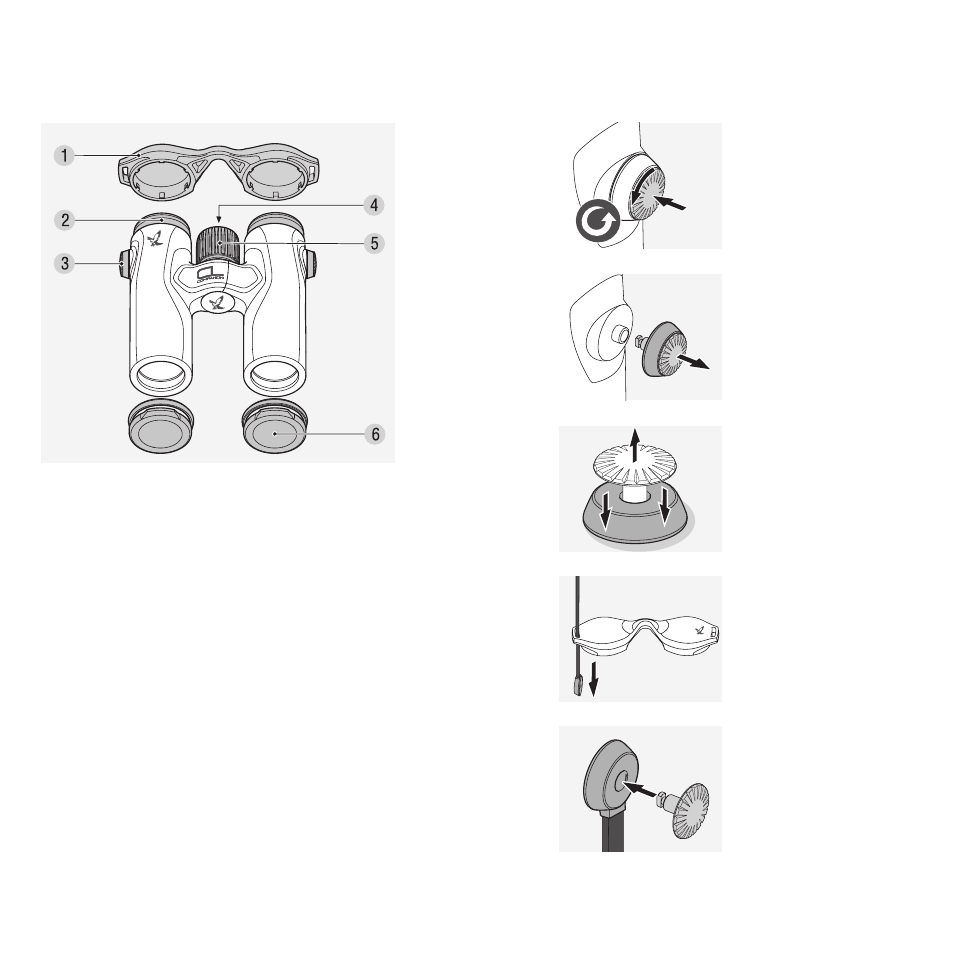

1 Eyepiece cover
2 Twist-in eyecup
3 Strap connector
cover
4 Dioptric
compensation
5 Focusing wheel
6 Objective lens cover
2. ATTACHING THE STRAP
Press the button in-
wards and turn it coun-
terclockwise (90°).
Pull out the button.
Detach the pin from
the ring.
To attach the eyepiece
cover, first pull the
strap through the loop
of the cover.
Align the button pin
with the strap connec-
tor ring and press until
it clicks.
click
