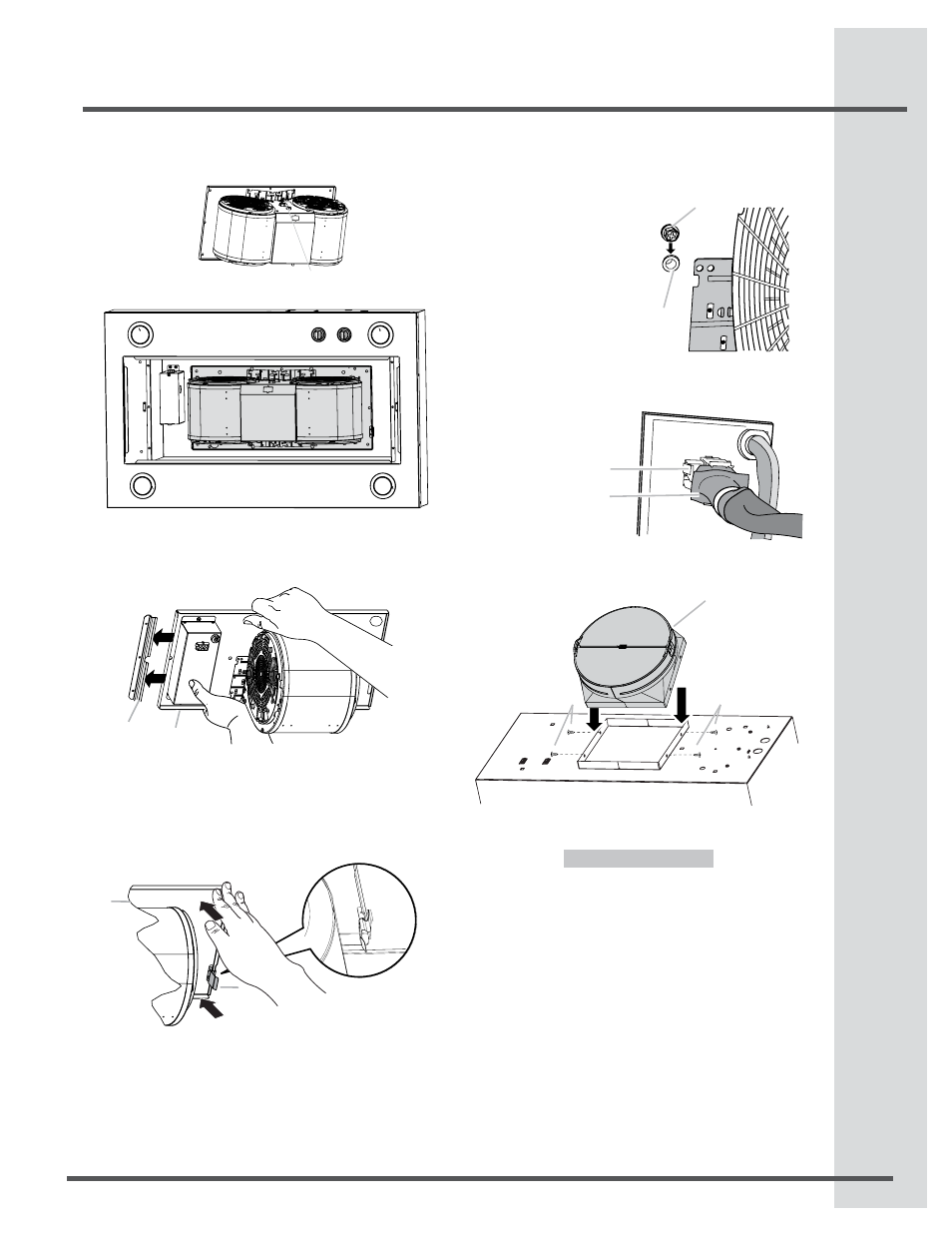

To install blower motor assembly, slide the left
mounting plate flange under the motor mounting
bracket.
Push the right end of the motor mounting plate
down and snap it into the spring tab.
NOTE: The spring tab should be outside the slot
in the mounting plate.
6.
7.
A
Align mounting holes and install 6 x 16 mm
bolts and 6.4 mm lock washers.
Attach power cord connector from the hood insert
to connector on wiring box.
Install 10” round ducting damper with 4 - 4.2 x 8
mm mounting screws.
Continue to Prepare the Location on page 12.
8.
9.
10.
11.
A.Motor mounting bracket
B.Mounting plate left flange
B
A
A. Motor mounting plate
B. Spring clip
A
B
A. Bolt with lock washer
B. Mounting hole
A
B
B
A
A. 10” round ducting damper
B. Installation screws
Blower Motor Systems Installation
A.Wiring connection
Dual Blower Motor Assembly
A
B B
A. Wiring Box Connector
B. Hood Insert Connector
