Install the 6 mm clip nuts to the outside top
of the hood insert at the proper location for the
selected motor system.
Two 6 mm nuts are required for 600 CFM
(single motor) Blower Motor Assembly.
Clip nuts into the small square notches
located at the left and right end of the
square vent opening.
Four 6 mm nuts are required for 1200 CFM
(dual motor) Blower Motor Assembly. Clip
nuts into the small square notches, located
at the left and right ends of the square vent
opening.
Install the hood insert blower motor assembly
inside the hood insert canopy with the wiring
connection to the left for the single motor system
and to the front or top for the dual motor system
4.
•
•
5.
Blower Motor Systems Installation
Install Hood Insert Internal
Blower Motor
The internal blower system can be mounted for top
venting.The mounting bracket and spring clip that
comes with the blower system will mount to the top
panel of the hood insert.
Internal Blower System Installation into Hood Insert
IMPORTANT: Perform steps 1-10 before mounting the
hood insert into the cabinet.
NOTE: Mounting hardware is included with the Blower
Motor System.
Remove grease filters from hood insert. See the
“Cleaning” section in the Use and Care Guide.
Install the motor support bracket using three 4.2 x
8 mm screws. Screw bracket to the inside top,
toward the left side of the hood insert (see step 2 figure).
Install motor spring clip using two 4.2 x 8 mm
screws. Screw spring clip to the inside top of the
hood insert at the proper location for the selected
motor system. Slide the mounting tab of the
spring clip through the slot in the panel and secure
with the screws (see step 3 figure).
1.
2.
3.
A. 4.2 x 8 mm screws (3) for motor support bracket
B. 4.2 x 8 mm screws (2) for motor spring clip
C.Motor support bracket
D.Motor spring clip (single motor assembly location)
E.Motor spring clip (dual motor assembly location)
F. Terminal Box
* In model EI30HI55KS is located on the right side
A
A.Wiring connection
A. 6mm Clip Nut
B. Clip nut locations for single motor assembly (2)
C. Clip nut locations for dual motor assembly (4)

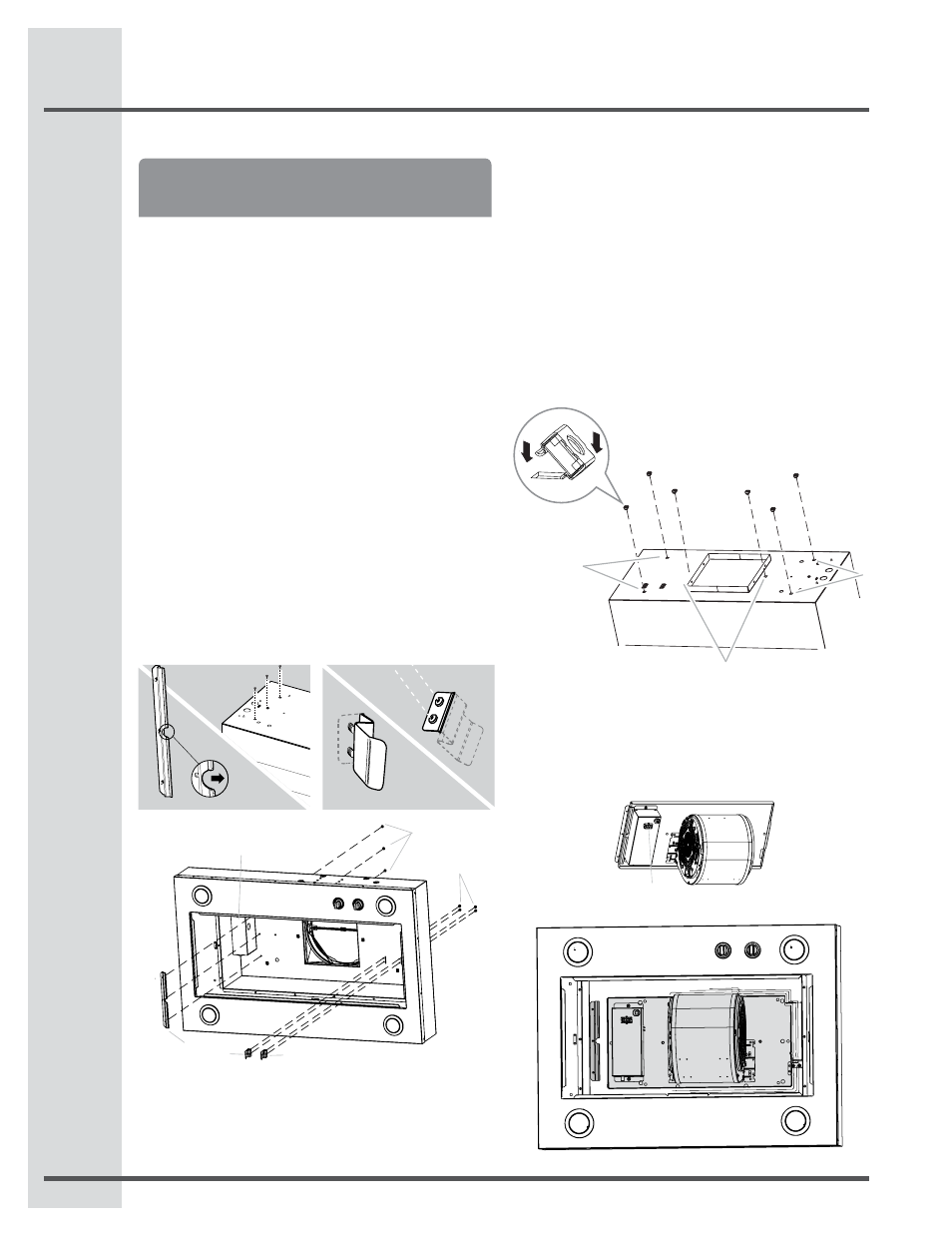

STEP 2 STEP 3
Outside the hood insert Outside the hood insert
Inside the hood insert Inside the hood insert
C
A
F*
B
D E
Single Blower Motor Assembly
B
C
C
A
