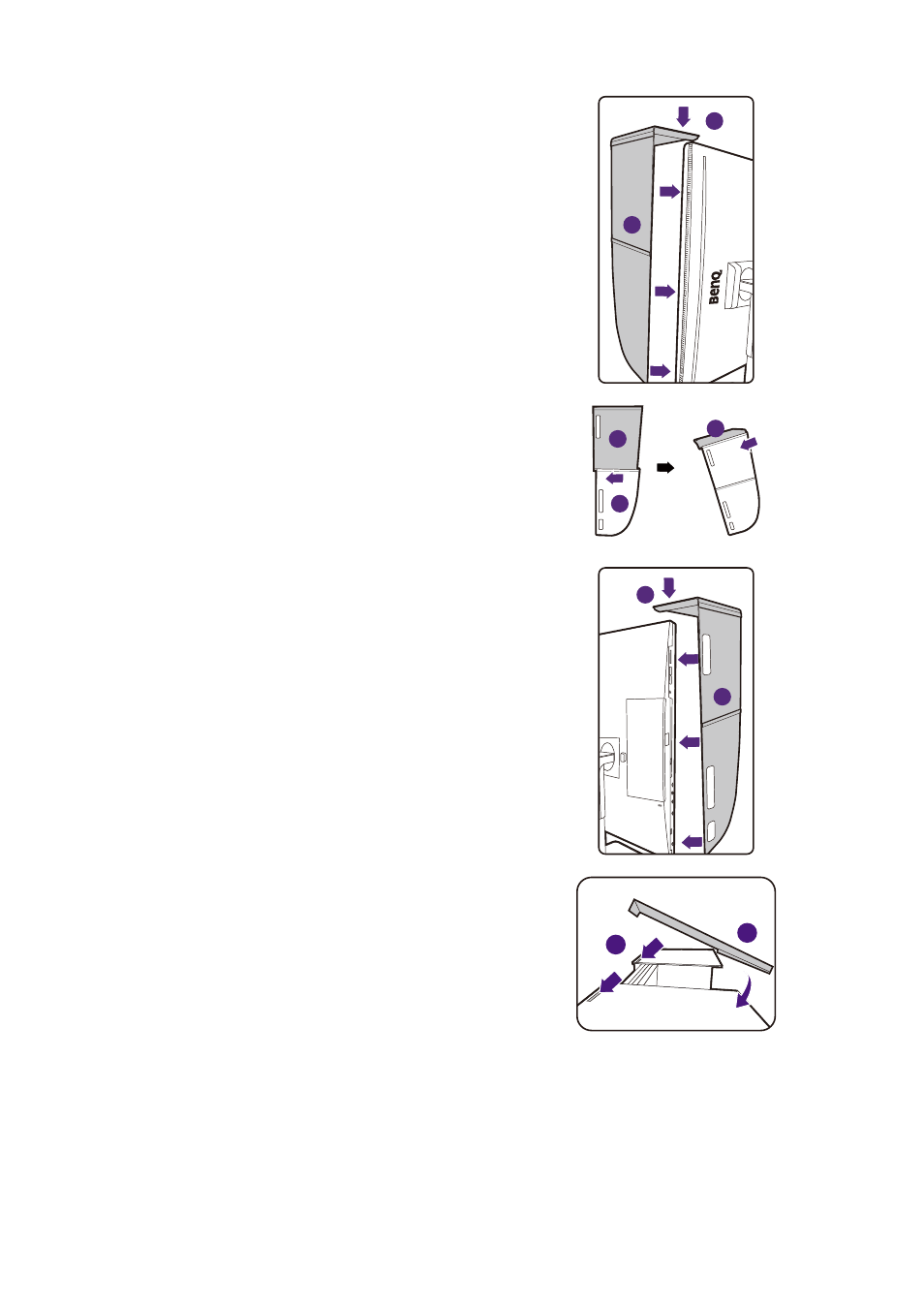

3. Attach to the right side of the
monitor.
Align the hooks on the hood with the holes on the
right side of the monitor, and insert the hooks. After
that, press down plate (Rt) to fix it firmly.
4. Install the left hoods.
Align the arrow on plate (L1) with the one on plate
(L2) and attach them together. Slide plate (L2) to
the end as illustrated.
Align the arrow on plate (Lt) with the one on plate
(L1) and attach them together. Slide plate (L1)
along with plate (L2) to the end as illustrated.
5. Attach to the left side of the
monitor.
Align the hooks on the hood with the holes on the
left side of the monitor, and insert the hooks. After
that, press down plate (Lt) to fix it firmly.
6. Install the top plate.
Hook the top plate on plate (R2) and plate (L2) as
illustrated, and the top plate to the notch on the top
of the other plates.
2
1
L1
L2
Lt
2
1
1
2
top plate
