14 2021-12-22 #:180-9151-1
B
D
Required Mounting
Screws
Four M8 screws
(17.4mm long)
Display Size A B C D E F
55"
11.81"
(300mm)
7.87"
(200mm)
18.65"
(474mm)
4.61"
(117mm)
1.61"
(41mm)
3.11"
(79mm)
65"
11.81"
(300mm)
7.87"
(200mm)
22.89"
(582mm)
5.42"
(138mm)
1.61"
(41mm)
3.11"
(79mm)
75"
15.75"
(400mm)
7.87"
(200mm)
25.27"
(642mm)
7.45"
(189mm)
2.00"
(51mm)
4.01"
(102mm)

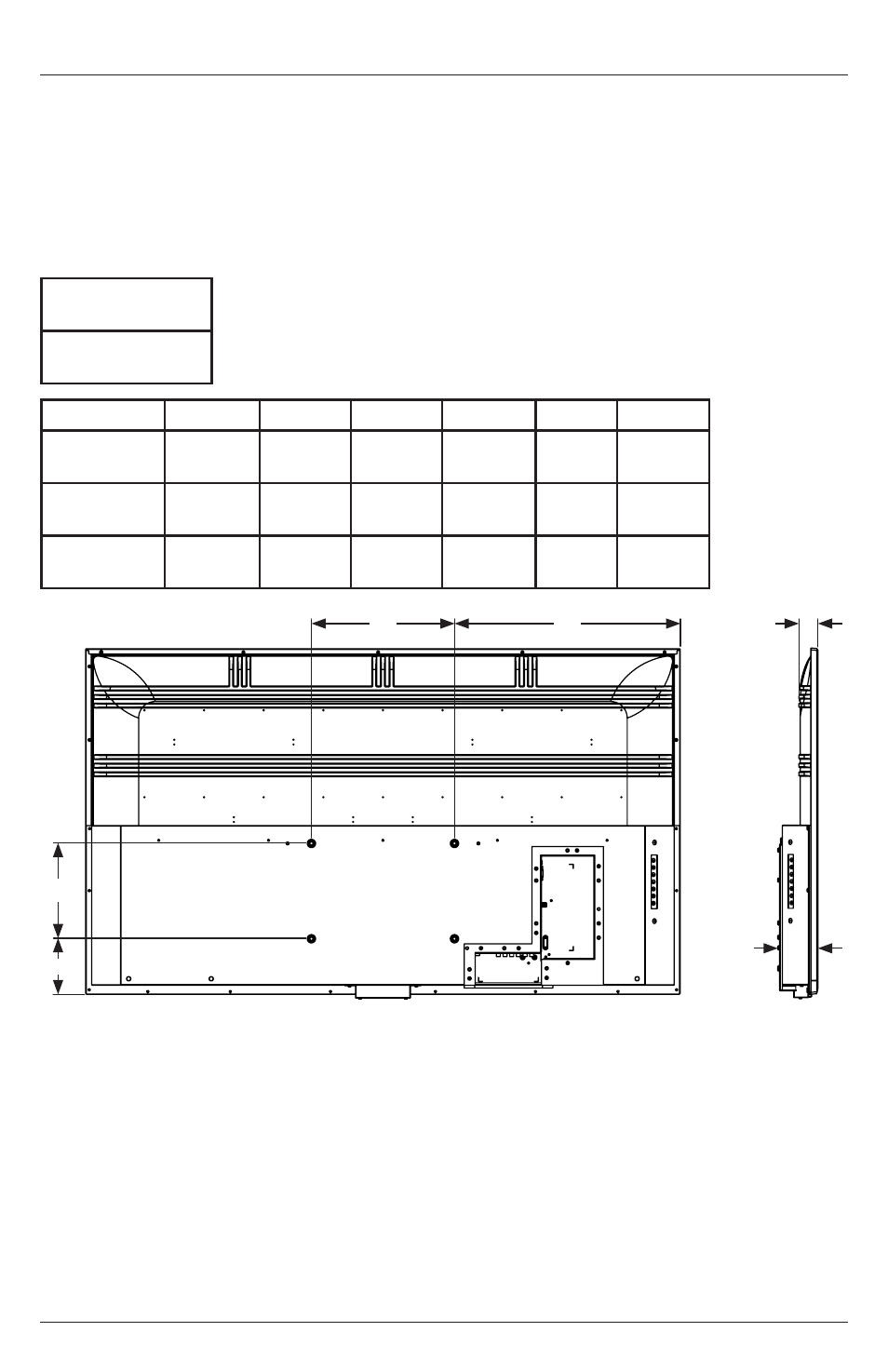

REAR VIEW SIDE VIEW
A
F
C E
Prepare the Display for Mounting
Install cords to your display before mounting. Input panel may be obstructed once the display is
mounted.
For your safety, only install on an outdoor-rated mount that is suitable for the application and supports
the weight of the display. When mounting a display outdoors, use environmentally rated mounts to
ensure longevity in harsh environments.
Examine the chart below to determine the mounting specifications for your display.
