4.2 Port Configuration
In Port page, it has five parts of setting
„ Port control
„ Port mirror
„ Bandwidth control
„ Port statistics
„ Port trunk.
We will describe the configure detail in following.
4.2.1 Port Control
This section introduces detail settings of per port on Switch; the screen in Figure 4-2-1 appears and following table
descriptions the Port Configuration objects of the Switch.

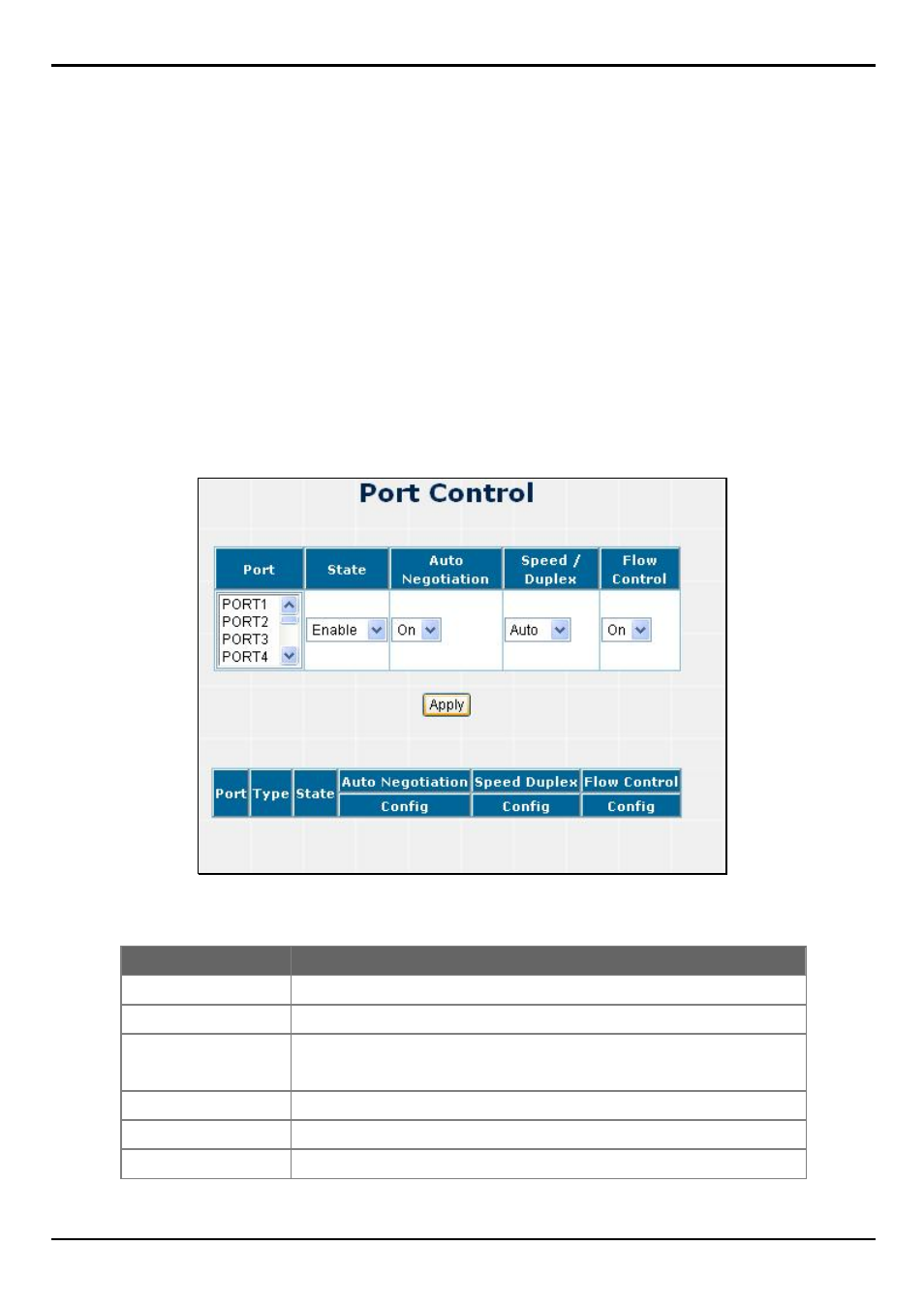

Figure 4-2-1 Port Control screenshot
Object Description
Port Select the port by scroll the list in Port column.
State User can disable or enable this port control.
Auto Negotiation User can set auto negotiation mode is Auto, N-way (specify the speed/duplex on
this port and enable auto-negotiation), Force of the port.
Speed/Duplex Set the speed and full-duplex or half-duplex mode of the port.
Flows Control Set flow control function is ON or OFF in Full Duplex mode.
Apply button Press the button to apply all configurations.
When you select the port, you can see port current configure shows in below.
