MVC 121 • Quick Start Guide
Quick Start Guide — MVC 121
QS-1
Step 1
Disconnect all power prior to installing the MVC 121.
Step 2

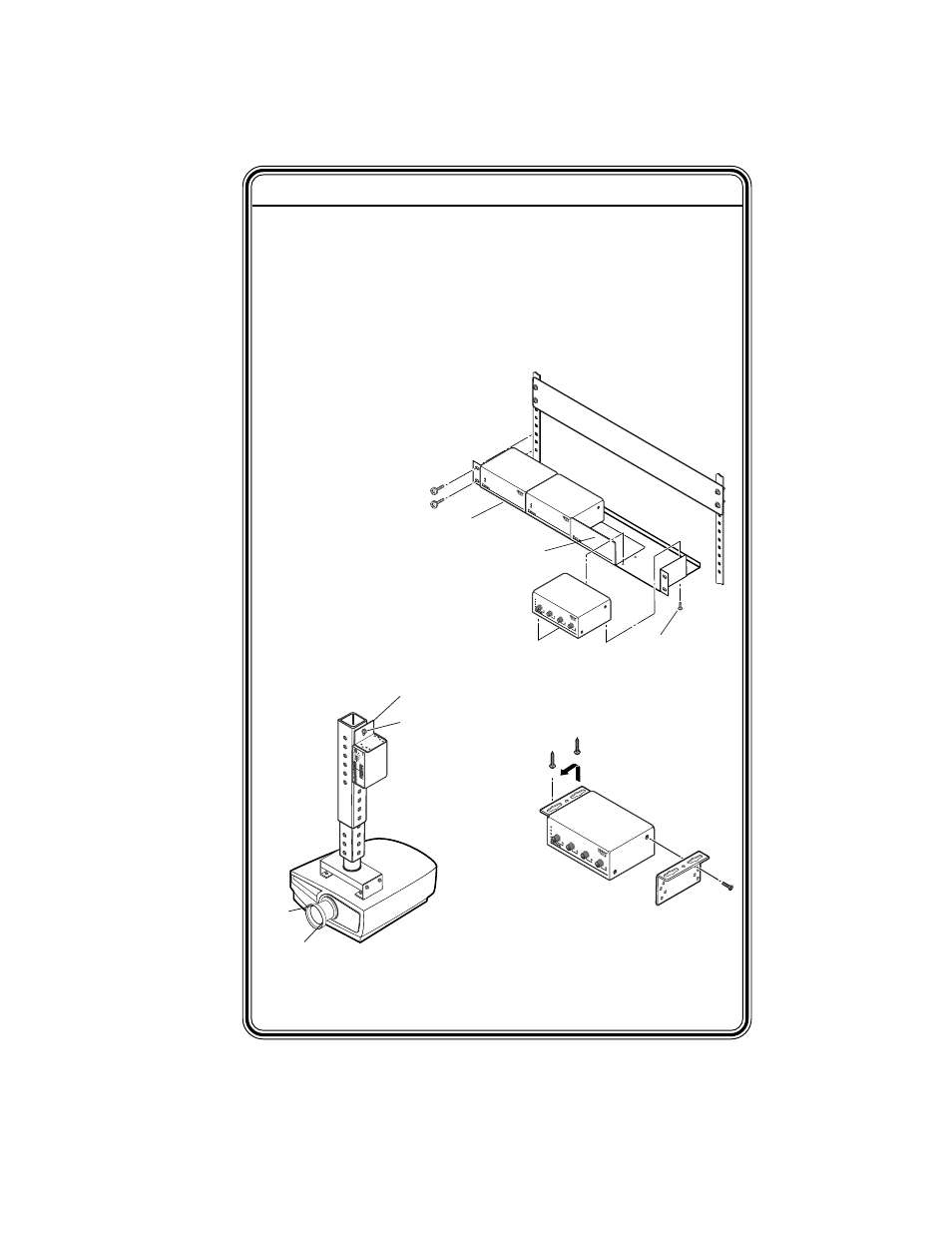

Mount the MVC (if applicable) or affix the rubber feet to the bottom
of the MVC for tabletop use. The MVC can be mounted in a rack
shelf
, under furniture, or to a projector mount. See chapter 2,
“Installation and Operation”, for details.
MIX ER /VO LU ME C ON TR OL LE R
MIC 1
VO L
MIC 2
MA IN 3
MA ST ER
Under furniture
(2) 4-40 x 3/16" screws
Use 2 mounting holes
on opposite corners
VersaTools Rack Shelf
1/4 Rack Width
False Front Face Plate
DIS TR IBU TIO N A MP LIF IER
DIS TR IBU TIO N A MP LIF IER
MIX ER /VO LU ME CO NT RO LLE R
MIC 1
VO L
MIC 2
MA IN 3
MA ST ER
Rack shelf mounting
Projector
PMK 100
MVC 121
ON INPUT S
OU TP UT S
LE VE L 48V ON OFF
MAIN 3
LINE MIC
R S -2 3 2 MUTE
Tx Rx
PO WER 12V 0.5A MAX
L
1 2
R
3
1 2 3 4
1
2
1
2 MIXER/V O LUME
CONTR O LLER
FIXED L
R
MIC 1
MIC 2
V A RIABLE L
R
Mounting
Bolt
To a projector mount
