MVC 121 • Installation and Operation
Rack mounting
For optional rack mounting, do not install the rubber feet.
Mount the MVC on a VersaTools
® 19" 1U rack shelf (Extron
RSF 123, part #60-190-20; Extron RSB 123, part #60-604-20), or a
standard Universal 1U or Basic rack shelf (Extron RSU 129, part
#60-190-01; Extron RSB 129 or #60-604-01). On the standard rack
shelf, the MVC mounts in one of four locations to the rear of the
rack or in one of four locations to the front of the rack.
1 . If rubber feet were previously installed on the bottom of
the MVC, remove them.
2 . Mount the MVC on the rack shelf, using two 4-40 x 3/16"
screws in opposite (diagonal) corners to secure the MVC
to the shelf.
(2) 4-40 x 3/16" screws
Use 2 mounting holes
on opposite corners
VersaTools Rack Shelf
1/4 Rack Width
False Front Face Plate
DISTRIB UTION AMPLIFIER
DISTRIB UTION AMPLIFIER
MIXER/V
OLUME CO
NTR OLLER
MIC 1
VO L
MIC 2
MA IN 3
MA ST ER

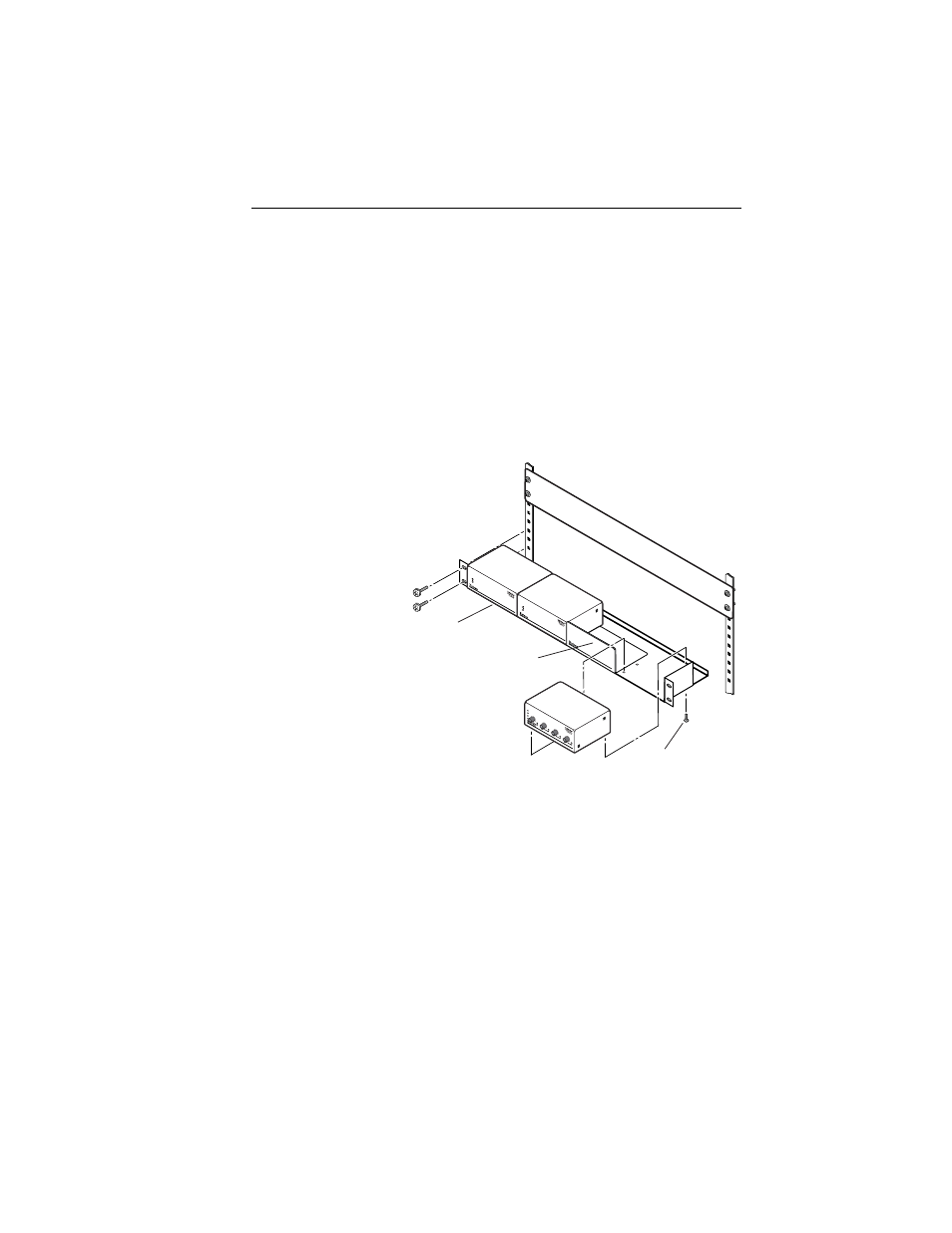

Mounting the MVC on a VersaTools rack shelf
2-3
