MVC 121 • Installation and Operation
Installation and Operation, cont’d
2-10
Unbalanced Input
Tip
Sleeve
Tip
Sleeve
Balanced Input
LR LR Tip
Ring
Sleeve (s)
Tip
Ring

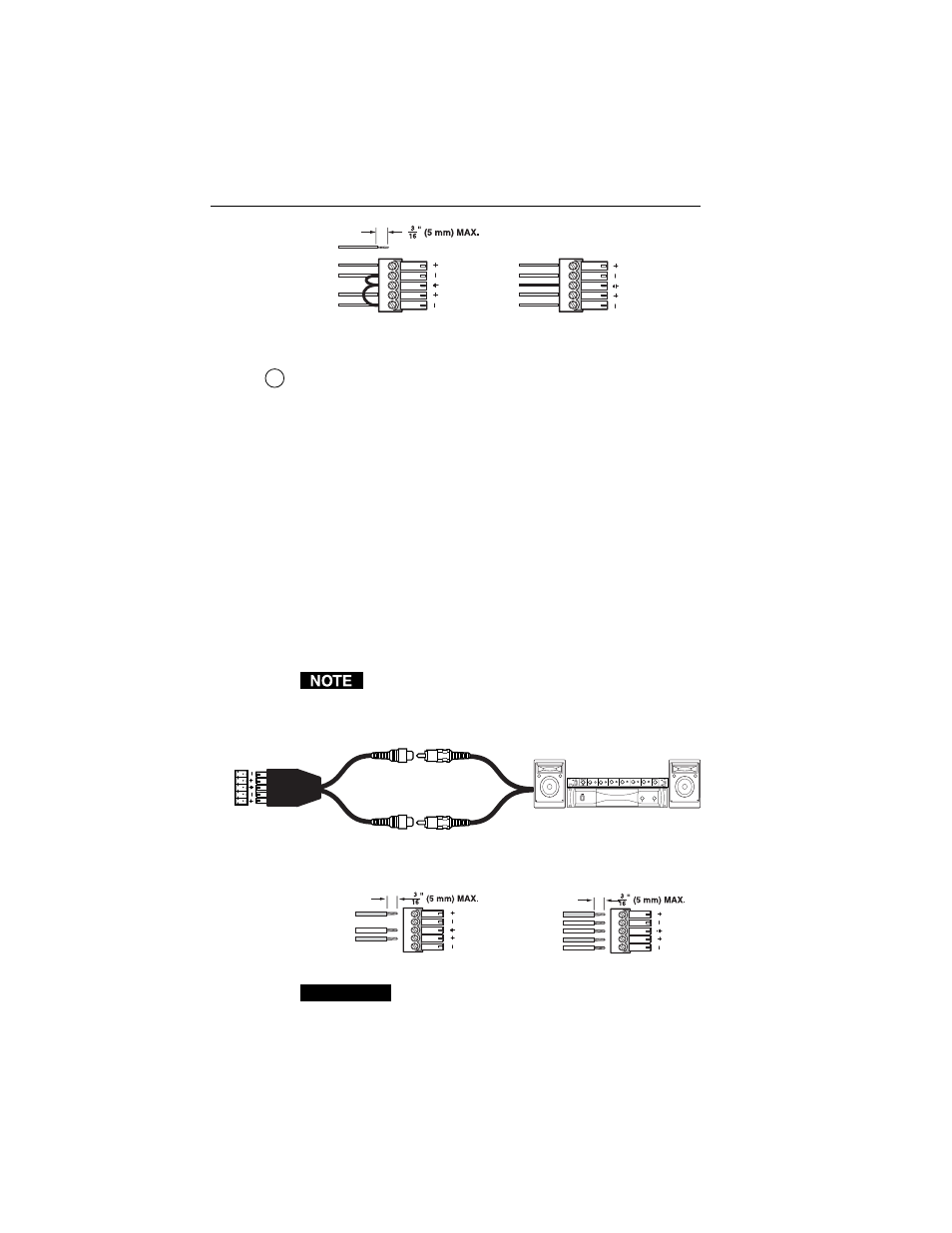

5 Variable output connector — The balanced/unbalanced stereo
output to an amplifier from the 5-pole 3.5 mm captive screw
connector (see the diagrams below) is controlled by the Master
volume control knob on the front panel (see “Front Panel
Features” in this chapter). Adjust the speaker volume by using
the following sequence:
1. Adjust the amplifier’s volume down to its minimum
setting.
2. Adjust the Master volume control of the MVC to its default
level (volume = 80 when connecting to an unbalanced
consumer amp, or volume = 86 when connecting to a
balanced professional amp).
3. Adjust the amplifier’s volume to the desired level.
4. Make subsequent volume level adjustments by using the
MVC’s Master volume control.
Output devices cabled with two RCA male inputs may
be connected to the 5-pole 3.5 mm captive screw
connector using the Extron CSR 6 adapter,
part #26-575-01.
Sound System Extron CSR 6 Adapter
V ARIABLE
LR
Example using the Variable output connected to an
amplified sound system
Unbalanced Output Balanced Output
Tip
NO GROUND HERE
Sleeve (s)
Tip
NO GROUND HERE
Tip
Ring
Sleeve (s)
Tip
Ring
LR LR
CAUTION Connect the sleeve to ground (Gnd). Connecting
the sleeve to a negative (-) terminal will damage the
audio output circuits.
