Figure 3-4. status reporting structure, 4 multiple logical instruments, Multiple logical instruments -14 – KEPCO MST 488 Programmer User Manual

Page 40: Status reporting structure -14

Text mode
Original mode

3-14

MST488-27 013004

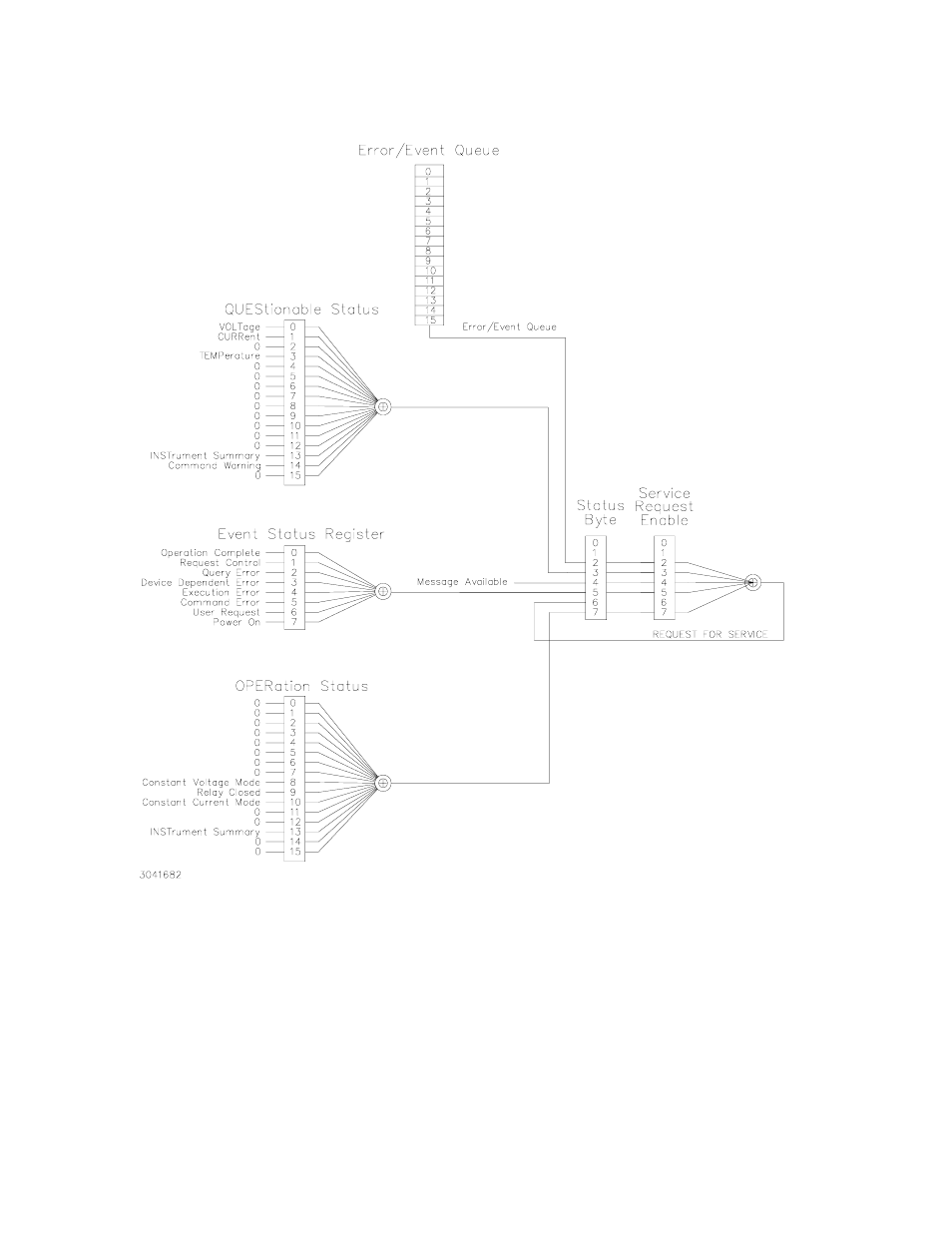

FIGURE 3-4. STATUS REPORTING STRUCTURE

3.4.8.4

MULTIPLE LOGICAL INSTRUMENTS

The MST 488-27 is a SCPI device that supports multiple logical instruments; it allows a choice
between two methods of status reporting. The status reporting default upon powerup treats the
unit as a single channel instrument. When multiple channels are in use, a SCPI compliant status
structure can be selected which provides an INSTrument summary status register and an indi-
vidual instrument ISUMmary for each logical instrument. These registers are equivalent to the
Status Questionable register of a single channel instrument and are also found in the STATus
