Elation Professional 5R User Manual
Page 11
Platinum Spot 5R™
©Elation Professional, Los Angeles Ca.
11
www.ElationLighting.com

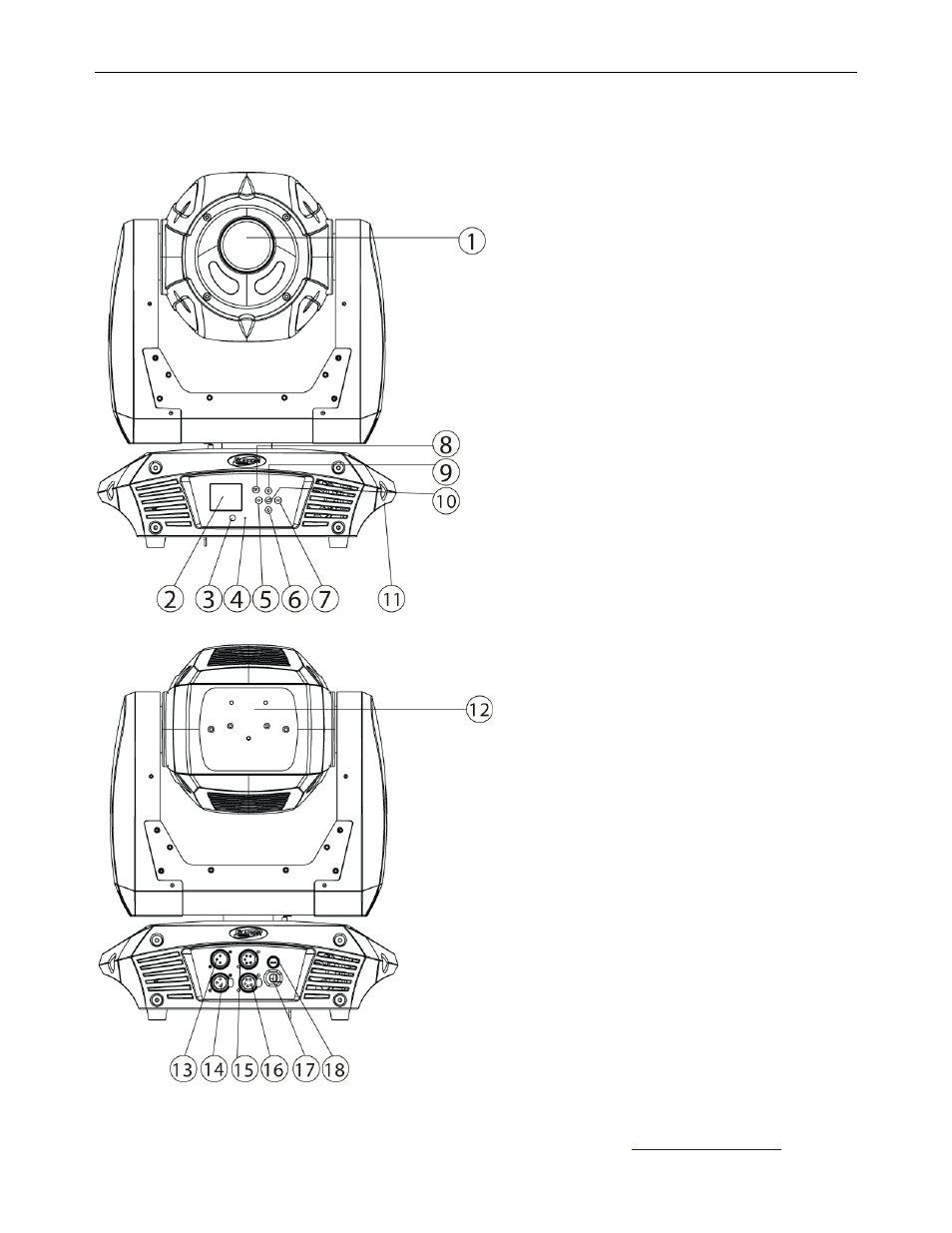

5. FIXTURE OVERVIEW
1: Lens
2: Display
3: DC Switch
4: Microphone
5: Left Button
6: Down Button
7: Right Button
8: Mode/Esc Button
9:
Up Button
10:
Enter Button
11: Handle
12: Lamp Access Panel
13: 3-Pin DMX in
14: 3-Pin DMX out
15: 5-Pin DMX in
16: 5-Pin DMX out
17: Power Cord
18: Fuse
