Elation Professional Design Par 575D - Manual

Design Par 575D
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
TECHNICAL SPECIFICATIONS
• DMX Channels: 6 DMX channels default or
4 DMX channels user selectable
• Control: USITT DMX-512, 3 pin XLR serial input/output
• Optical System: Parabolic glass reflector, includes
medium lens. (Lens options: very narrow, narrow,
medium, wide)
• IP Rating: IP 20
• Power Supply: 98V 50Hz
• Power consumption: 700W
• Ballast: Electronic
• Lamp: ZB-MSR 575/2 575W Discharge
• Lamp Life: 575W, 7200° K, 1,000 hrs. life
• Dimensions: ( L x W x H ) 14.25” x 17” x 19.4” /
362mm x 431.8mm x 492.8mm
• Weight: 51 lbs / 23 kg
• Rigging: Flight case: DRC-250DS
2 x 1/4 turn Omega clamps
Safety cable
3-pin data cable
FEATURES
• 575W discharge opti par moving head fixture
• Gel frame holder included
• Glass Dichroic Reflector for Even Lamp Output
• Anti-Reflective Coated Lenses
• Includes 4 Lens options: very narrow,
narrow, medium & wide
• 40° beam angle
• Auto test for all functions
• Pan 630° or 540° (User selectable) / Tilt 265°
• Fine Pan & Tilt, Built-in programs
• Automatic Pan/Tilt Correction
• 3 operation modes: DMX controlled,
stand alone or sound activated
• Control board with 4-digit display and foil-keyboard
• Digital display can be turned 180° to fit different
installation position
• On Board Lamp Dimmer (H ver)
• Built In lamp control via DMX
• Value of each DMX-channel can be displayed
• Uses 6 DMX Channels (16-bit mode)
• User Selectable Power Supply (Internal)
The Design Par 575D by Elation Professional is a 575W discharge opti par moving head fixture featuring glass
dichroic reflector for even light output, anti-reflective coated lens and built in lamp control via DMX. The Design
Par 575D includes a gel frame holder and 4 lens options: very narrow, narrow, medium and wide. This fixture is fan
cooled with an estimated lamp life of 1,000 hours . The Design Par 575D is operable via 6 DMX channels and has
3 operation modes: DMX controlled, stand alone or sound activated. This unit produces a standard beam angle
of 40° and is rated IP 20, ideal for indoor applications. Control data input is via 3 pin DMX data first in and out
connections. This unit is fully operational in two different mounting positions, hanging upside-down from a ceiling,
or set on a flat level surface. Other features include user selectable internal power supply and a digital display that
can be turned 180° to fit different installation positions.
Design Par 575D™
©Elation Professional® 51
Design Par 575D™

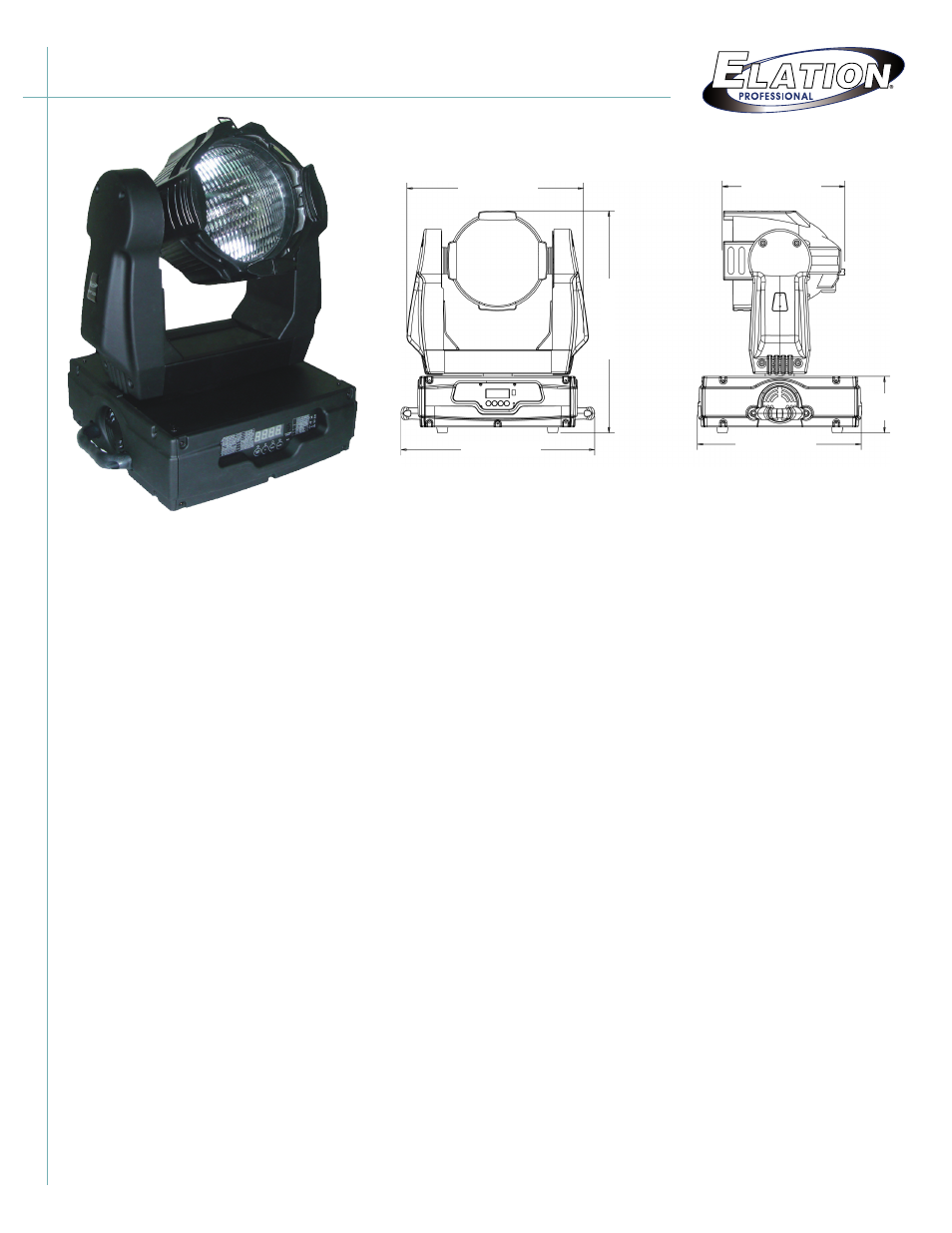

16. DIMENSIONAL DRAWINGS:
Design Par 575D Dimensions
15.4” / 390 mm 10.7” / 271 mm
14.3” / 362 mm
4.9”
125 mm
16.9” / 429 mm
19.4” / 492 mm
