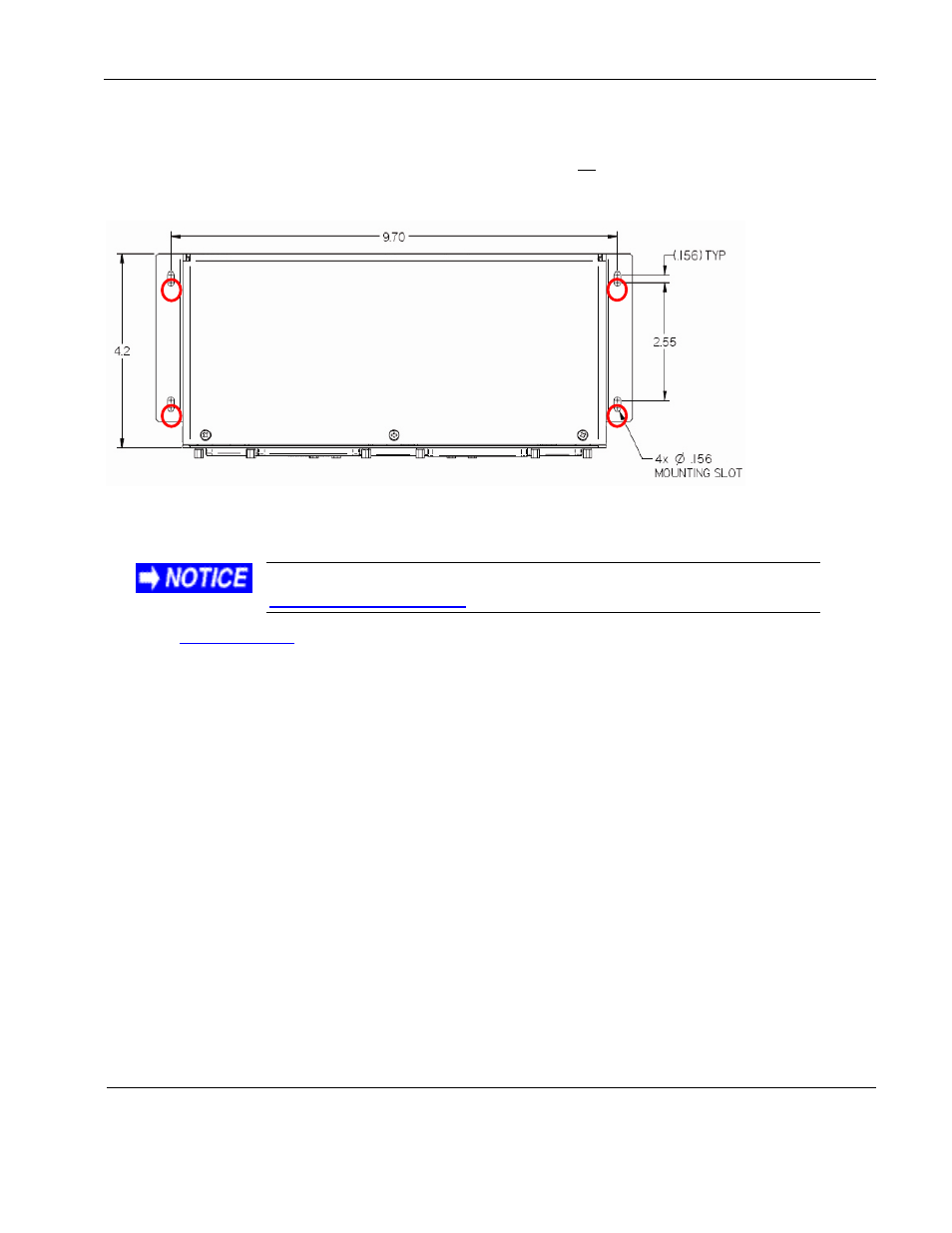

5. MOUNTING
Mount the Video Distribution Amplifier in any orientation using all four mounting slots in the flange
brackets on the exterior housing. Refer to Note 3 on the Outline and Installation Drawing
(P/N 0700-006-CD).
6. TECHNICAL REFERENCES AND SUPPORT
The Outline & Installation drawing is also available at
www.rosenaviation.com .
From the Rosen Aviation home page, select Products ÆAccessories, and look for the product name
under the Accessories category.
6.1. Definitions
AGC Automatic Gain Control
DIP Dual in-line package
RGB Red, Green, Blue – abbreviation commonly used for analog computer
graphics video in which the 3 primary colors are transmitted on separate
wires
SS Source select switch
SW Switch – used to reference specific DIP switch numbers
VDA Video Distribution Amplifier
Vpp Volts peak-to-peak
