Page 7
- 6 -
Air-Oxygen Blender
Gas Outlets
The Primary and Auxiliary Outlets are DISS male adapters with check valves.

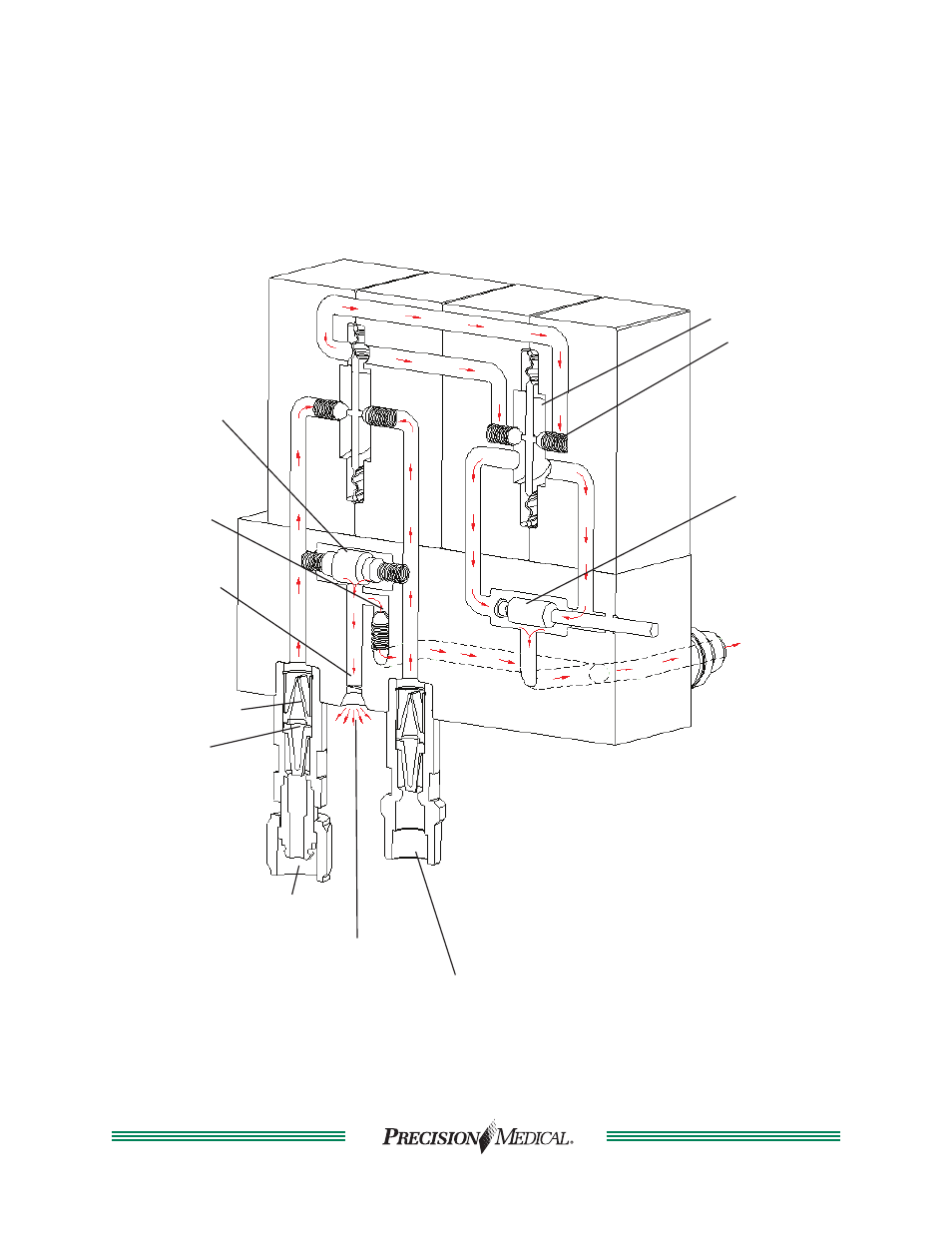

AIR / OXYGEN FLOW PATH INDICATION DIAGRAM
AIR
(DISS
shown
)
DIAPHRAGM
DIAPHRAGM
CHECK
VALVE
DUCK BILL
CHECK VALVE
FILTER
PROPORTIONING
VALVE
ORIFICE
BYPASS CHECK
VALVE
ALARM BYPASS
VALVE
O
2
(DISS
shown
)
AUDIBLE
ALARM
