Operation, cont’d
CrossPoint Matrix Switchers • Operation 3-10
that the selected output LED, the tied input LED (input 5), and the output
LEDs light for all of the outputs that are tied to the input.
E Press and release the RGBHV button to toggle the Video LED off (figure 3-10).
If audio is broken away, the Audio LED stops blinking and lights.
If audio ties are established for input 5, the output LEDs for all audio outputs
tied to input 5 light. If no ties are established for input 5, all output LEDs turn
off.
1
1
2
2
3
3
4
4
5
5
6
INPUTS
ENTER
OUTPUTS
6
7
7
8 9 10 11
PRESET VIEW ESC RGBHV AUDIO
12
8
CONTROL I/O
AUDIO
E
8 3
RGBHV
E
LED key: = off, = on
Press

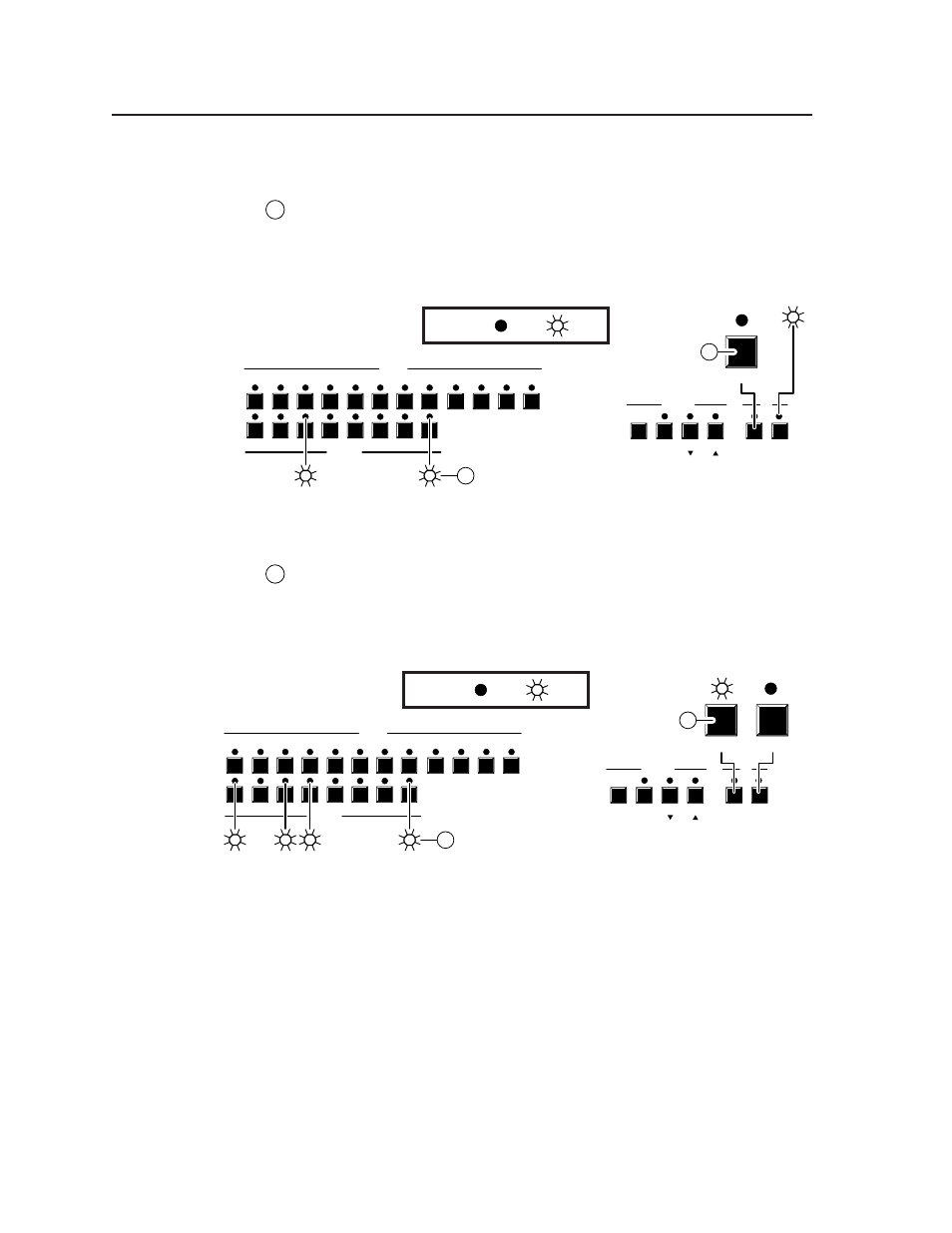

Figure 3-10 — Example 4, step E: Viewing the current configuration,
audio-only
F Press and release the RGBHV and Audio buttons to toggle the Video LED on
and the Audio LED off (figure 3-11).
If video ties are established for input 5, the output LEDs for all video outputs
tied to input 5 light. If no ties are established for input 5, all output LEDs turn
off.
1
1
2
2
3
3
4
4
5
5
6
INPUTS
ENTER 6
7
7
8 9 10 11
PRESET VIEW ESC RGBHV AUDIO
12
8
CONTROL I/O
OUTPUTS
F
8 3 1 4
LED key: = off, = on
RGBHV AUDIO
F
Press Press
Figure 3-11 — Example 4, step F: Viewing the current configuration,
video-only
Muting and unmuting video and/or audio
Individual outputs can be muted or unmuted by doing the following:
1 . Press the Esc button to clear any input LEDs, output LEDs, or control LEDs
that may be on.
2 . Press and release the View button.
3 . Select video, audio, or both to mute or unmute by pressing the RGBHV
and/or Audio buttons.
4 . One at a time, press and hold the output button(s) for the desired output(s)
for approximately 2 seconds. The output LED(s) for the selected output(s)
