tion, press the „menu“ key ( ), then chose
“system” and then press the „display“ softkey.
Then use keys A and B to select either „gain
reduction“ or „curve“ to change the resolution of
the corresponding graphs. Use the gain / data
controller ( ) to alter values.
LCD Contrast
To change the display contrast, press the
“menu” key ( ), then “system, then “display”.
Press key D to activate „LCD Contrast“. Adjust
contrast with the gain / data encoder.

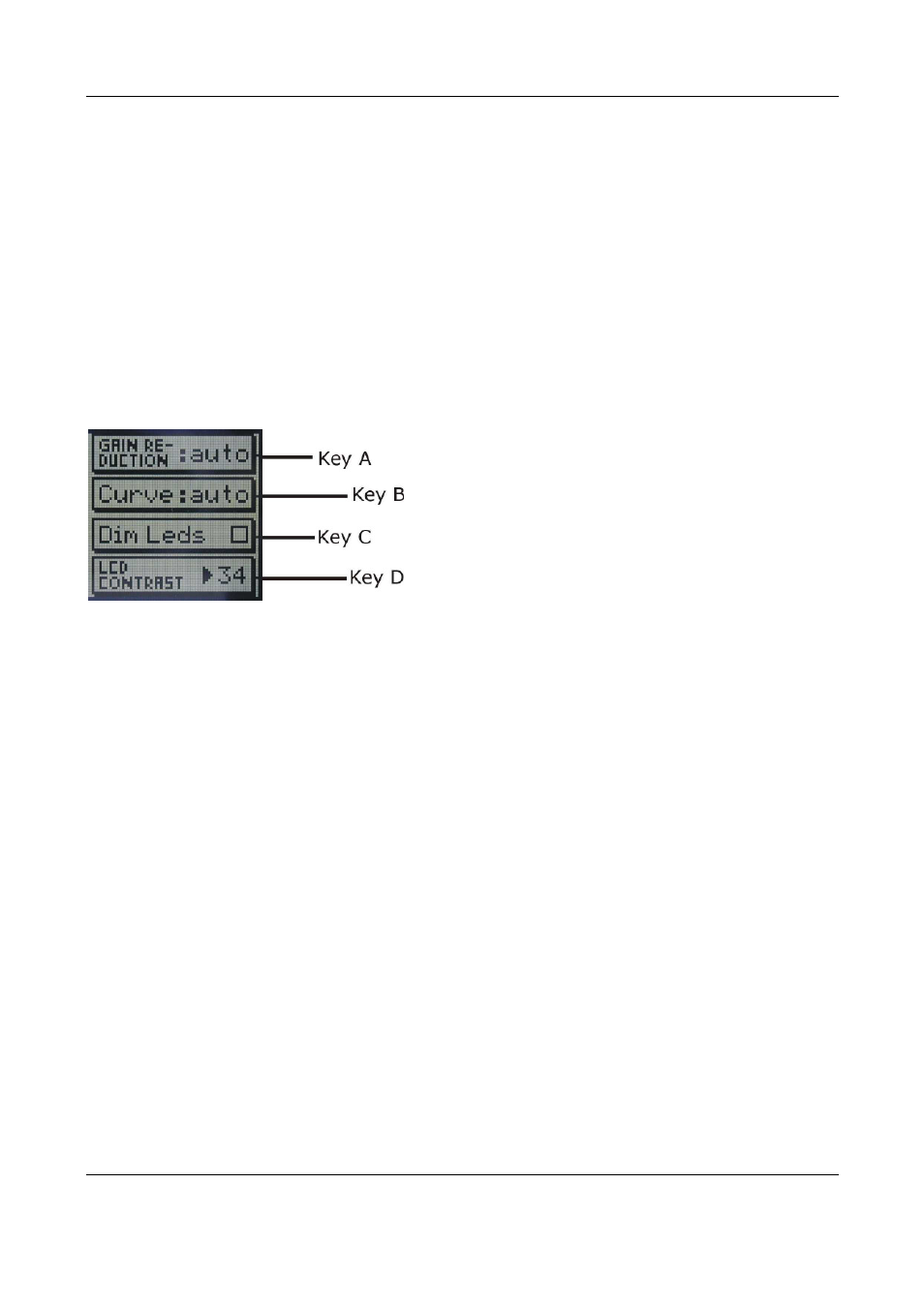

Graphic 33: Display menu
Bypass
The DS1-MK3 can be completely bypassed with
the green “bypass” key below the mains switch.
If the “bypass” key is lit, the DS1-MK3 is abso-
lutely transparent, making the output signal bit
equal to the input signal. However, the overall
delay (see chapter Delay) is still active.
While bypass is active (key is lit), the DS1-MK3
works in preview mode. This allows you to
change parameters without actually affecting the
audio signal.
Remote Control
All band parameters as well as control settings
can be set externally.
To see remote control status refer to the status
display ( , see Status Display p. 7).
Protocol
To select a remote control protocol, press key C
from the status display menu. Select either “RS
232”, “RS 422” or “MIDI”. This will determine
which port at the rear of the DS1-MK3 is active.
The other inactive ports will be ignored.
Press the “menu” key to return to the status
display if you do not want to change remote on/
off status.
When selecting a port other than MIDI you have
to specify the baud rate. Refer to the remote
control software manual for correct settings. The
set baud rate is displayed to ensure proper set-
up.
Channel
To change the remote control channel number,
press key C (adjacent to the remote control
field). Use the gain / data controller ( ) to
select a value between 1 and 16. Press the
“menu” key to return to the status display. Omni
mode (listening on all channels simultaneously)
is not supported.
On/ Off
To enable or disable remote control, press key C
(adjacent to the remote control field). Press it
again to toggle the “ON/ OFF”-value.
While remote control is off, data will still be sent
to the selected port. Also, the MIDI THRU output
will always mirror the MIDI IN input data regard-
less of “ON/ OFF” or protocol status.
