OPERATING INSTRUCTIONS FOR GAMBIT DE-ESSER/COMPRESSOR DS1-MK3
OPERATION
Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster
Page 13
+41 44 940 20 06 +41 44 940 22 14 http://www.weiss.ch
Note, the input and output meters on the trans-
fer graph (
) are connected after the crossover
and before the adder.

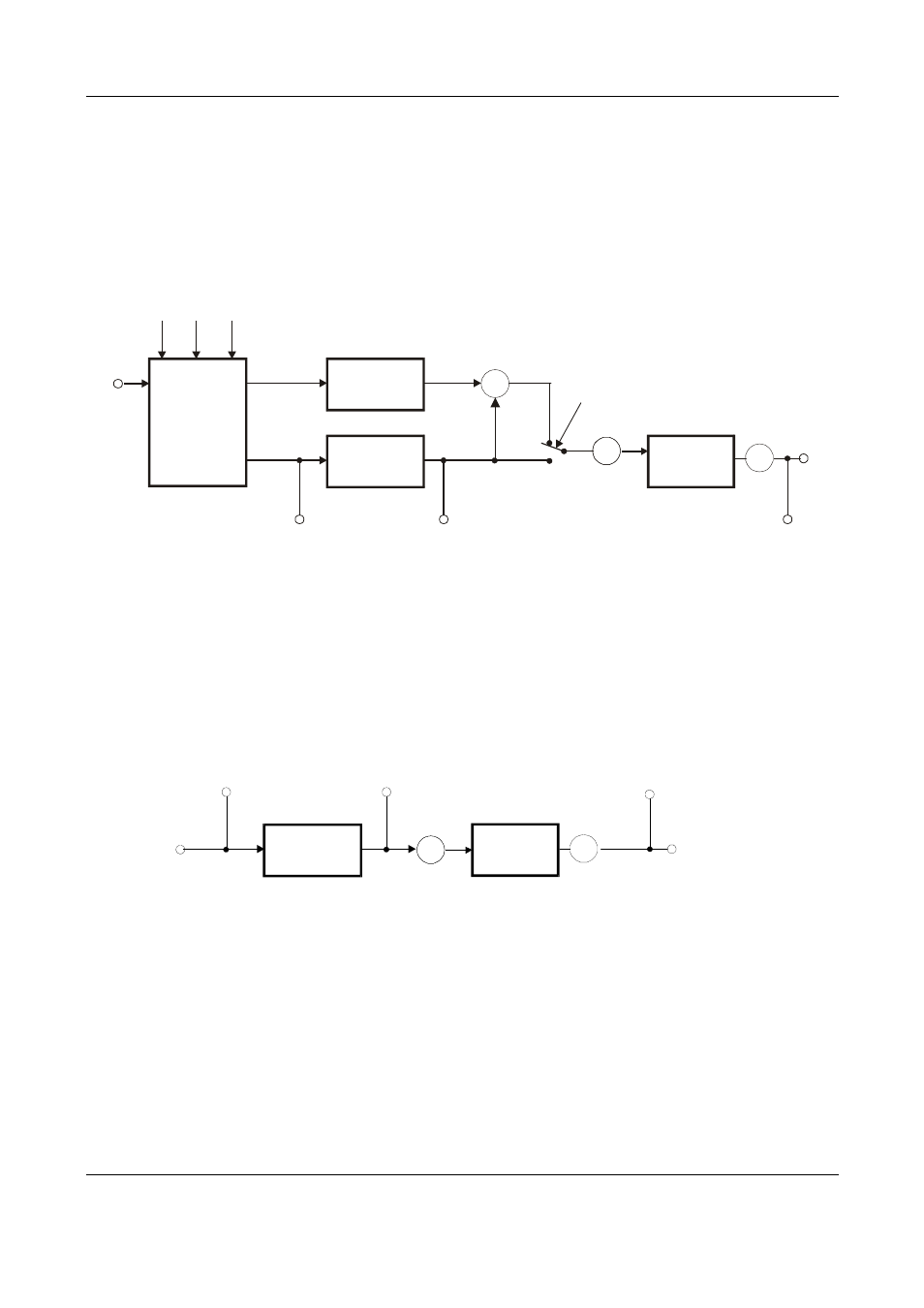

Full Range Mode (Graphic 17): In this mode
the compressor input meter is at the input of the
DS1-MK3. The crossover controllers and the
monitor key have no function.
Graphic 16: Band Selective Mode
Graphic 17: Full Range Mode
Cross-
over
filter-
type
In-
put
Out-
put
band-
width
centre
frequency
Delay
Comp.
band
pass
monitor
output
meter
input
meter
band
stop
peak / over
hold
Safety
Limiter
+
X
Gain
X
Gain
X
Output
Gain
In-
put
Comp.
output
meter
input
meter
peak / over
hold
Out-
put
Safety
Limiter
X
Gain
X
Gain
X
Output
Gain
