Installation
Appliance Installation:

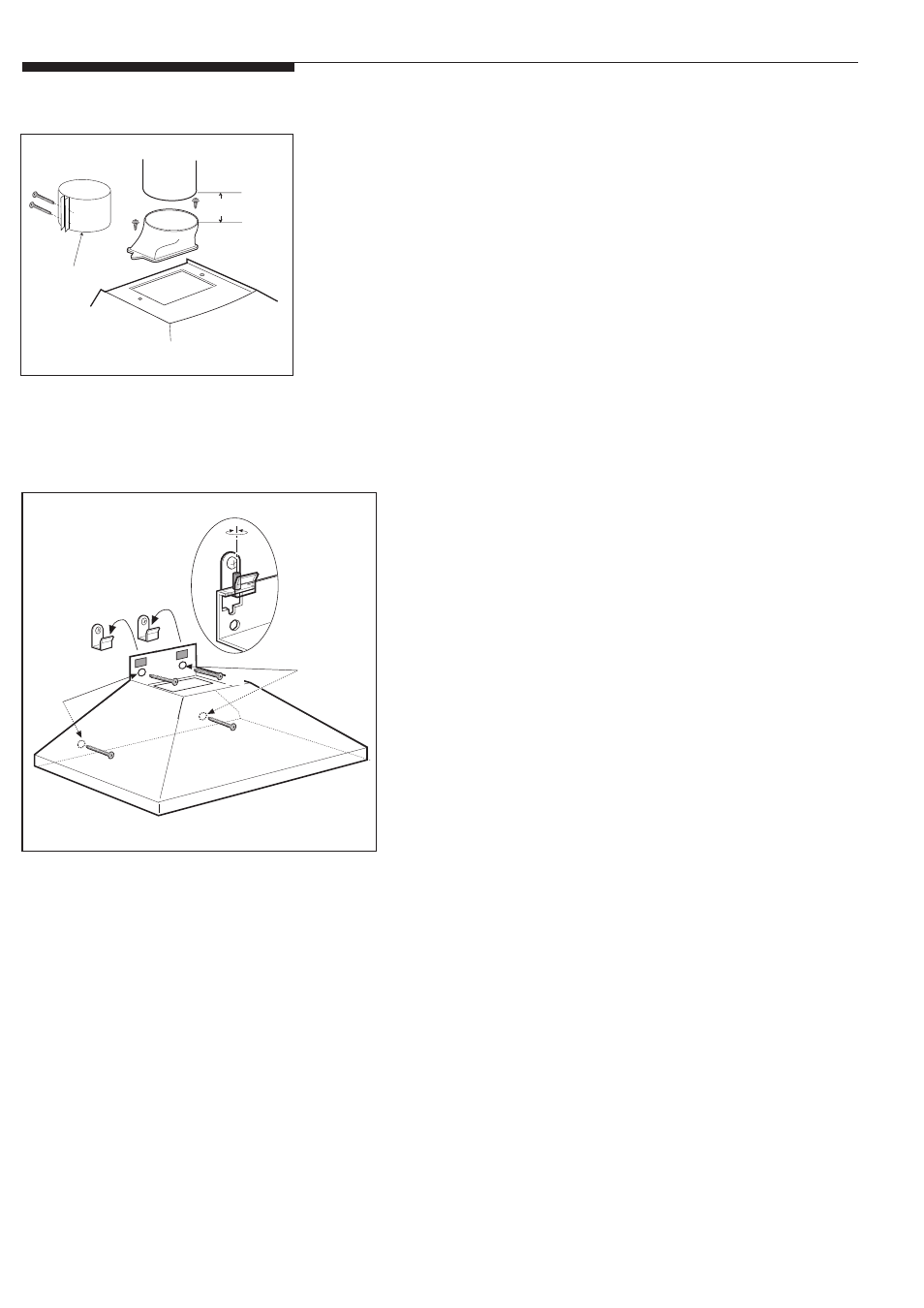

11. Install transition on top of hood if removed for shipping. Figure 4.
12. Hang hood on 2 mounting hooks through the rectangular cutouts on back of
hood. Figure 5
13. Level the appliance, using a carpenters level across bottom of hood with leveling
screws in mounting hooks or rectangular cutouts.
14. Secure hood with 2 screws on top and 2 screws on bottom. See Figure 5.
15. Connect ducting (Figure 4).
Note: for blower serviceability, leave a gap of 1" minimum between top of
transition and sheet metal duct and cover gap with a starting collar wrapped
around duct and transition. Locate collar screws so they fit into corner of duct
cover. Secure collar to transition and duct with three sheet metal screws each.
Seal with duct tape.
Do not use duct smaller than the transition.
Starting
Collar
1"
13
Figure 4
Figure 5
