Specifications, Parts, Accessories, Dimensions, cont’d
SCP 150 • Specifications, Parts, Accessories, Dimensions SCP 150 • Specifications, Parts, Accessories, Dimensions

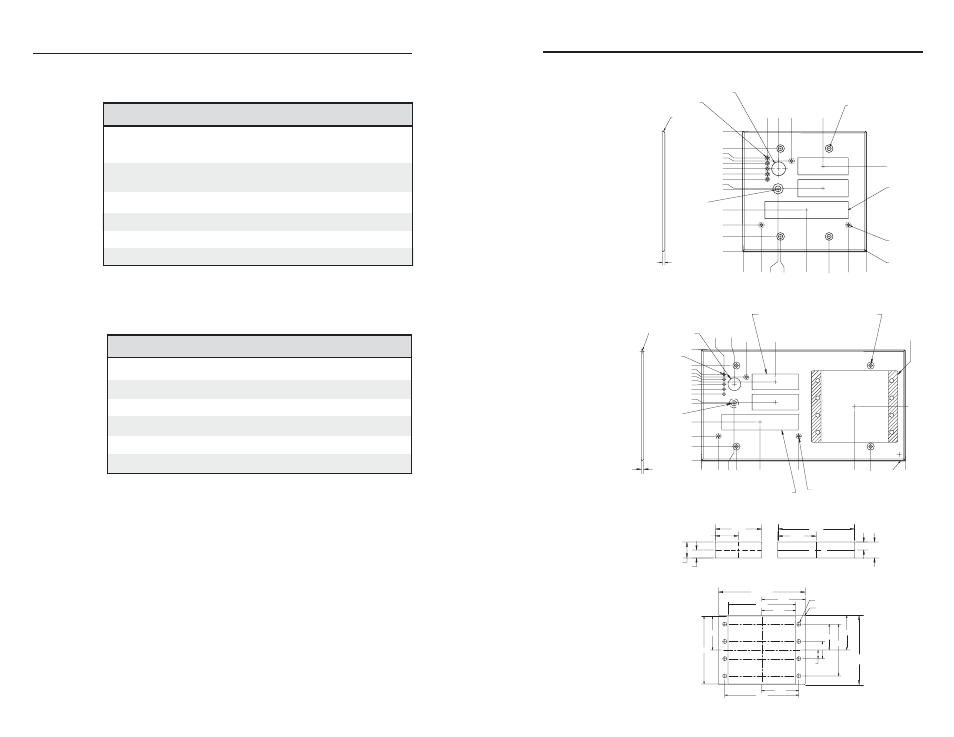

Panel Dimensions
SCP 150
R. 070 TOP
EDGE ALL
AROUND.
(.10 THK.)
Ø.219 THRU
wØ.392 x 82°
NEAR SIDE
.000
2X .576
2X 1.000
1.563
2X 3.858
4.500
.000 .675 2.360 3.925 4.600
4X R.25
2X 2.980 1.805
SEE DETAIL "B"
3.195
Ø.520 THRU
3.390
1.300
2.330
2.705
2.905
2X 3.105
3.305
3.505
2.375
5X .905 1.320
3X Ø.120 THRU
wØ.220 X 82°
(CODED 'F')
4X Ø.160 THRU
wØ.290 X 82°
(CODED "E")
2X 1.394 2X 3.206
5X Ø.125 THRU
wØ.180 X 90° FAR SIDE
SCP 150 AAP
DETAIL `A' DETAIL `B'
1.880
.940
.320
.640
3.110
1.555
.320
.640
2.100
2.810
+0.015-0.000
2.750
DETAIL `C'
3.000
1.500
.350
.700
8X Ø.170 THRU
3.520 +.010-.000
1.375
1.370
2.740
1.760
1.050
1.405
4x R.050
8.250
4.500
4X R.25
4X Ø.160 THRU w Ø.290 X 82°
(CODED E)
SEE DETAIL "C"
6.200 .000
.000
SEE DETAIL "B"
(.10 THK)
R.070 TOP
EDGE ALL
AROUND
2X 1.000
.675 3.925
2.200
2X 3.858
1.563
2X .576
2.360
2X 2.980
SEE DETAIL "A"
1.805
3.195
Ø.219 THRU wØ.392 X 82° NEAR SIDE
5X .903 1.320
3.390
2.330
2.705
2.905
2X 3.105
3.305
3.505
2.375
1.300
Ø.520 THRU
5X Ø.125 THRU
wØ.180 X 90° FAR SIDE
3X Ø.120 THRU
wØ.220 x 82° (CODED 'F')
2X 1.405 2X 6.845
A-4 A-5
Accessories
These items may be ordered separately:
Accessories Part number
2-gang mounting bracket (gray, black, white, RAL9010)
70-086-01, -11, -21, -25
4-gang mounting bracket (gray, black, white, RAL 9010)
70-086-03, -13, -23, -25
2-gang SMB surface mount box 60-640-02
4-gang SMB surface mount box 60-642-02
Button labels (international text) 33-956-01
IR 402 remote control 70-207-01
Cables
These cables may be ordered separately:
Comm-Link cable Part number
50 feet/15.2 meters long 26-461-01
100 feet/30.5 meters long 26-461-02
200 feet/61 meters long 26-461-03
400 feet/122 meters long 26-461-04
Bulk 500 feet/152.4 meters long 22-119-02
Bulk 1000 feet/304.8 meters long 22-119-03
