SCP 150 • Installation and Operation SCP 150 • Installation and Operation
Installation and Operation, cont’d
2-12

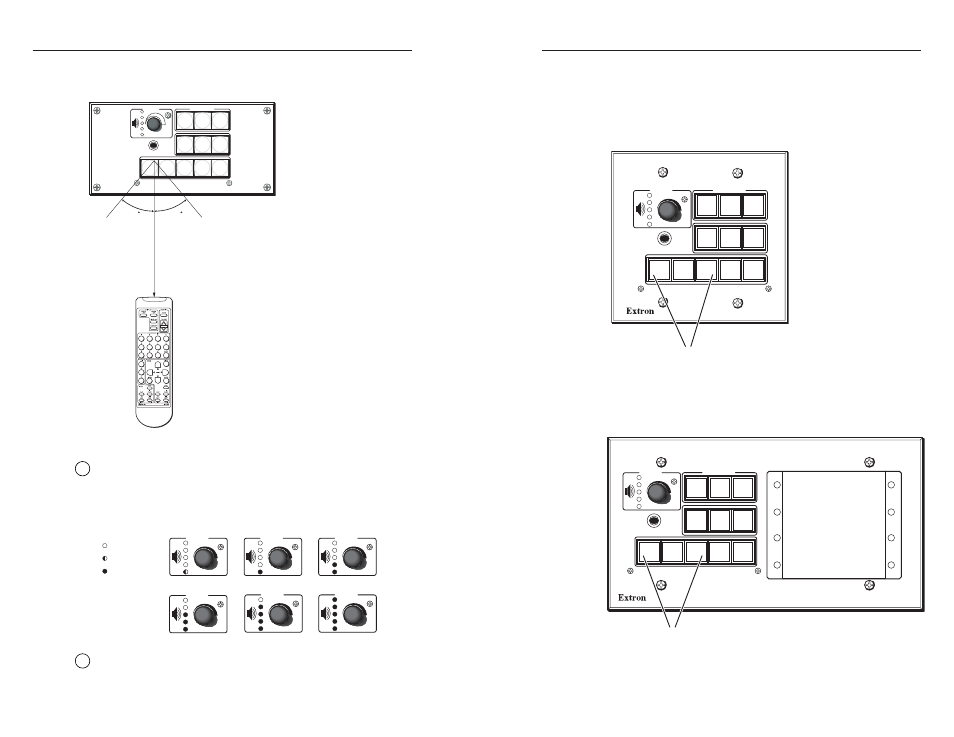

approximately 30 feet (9.14 meters) within 40 degrees on either
side of the axis. See the following illustration.
Extron
IR
VOLUME
PROJECTOR
ON
PROJECTOR
OFF
FUNCTION
BUTTON
LIGHTS ON LIGHTS OFF PC
INPUT
1
INPUT
2
INPUT
3
INPUT
4
INPUT
5
PROJECTOR
IR 402 Remote
SCP 150 L
40 40
30 feet
maximum
6 Volume knob and indicator LEDs — Turn this knob to adjust
the volume on the input that is currently selected. The five
LEDs indicate the current volume level, as shown in the
following illustration. The top LED is red and the others are
green.
VOLUME VOLUME
VOLUME VOLUME
LED Off
LED Blinking
LED On
0% (Min) or Mute 1-19% 20-39%
40-59% 60-89% 90-100% (Max)
VOLUME
VOLUME
7 AAP mounting spaces (SCP 150 AAP only) — Mount up to four
single-space AAPs or control modules (IRCMs, ACMs, RCMs)
here.
2-13
Resetting to Factory Firmware version
To reset the SCP to the firmware version with which it was
delivered from the factory, press and hold the buttons
numbered 1 and 3 on the front panel while applying power to
the unit. See the following three illustrations.
SCP 150
PROJECTOR
IR
VOLUME
T o reset, press these two buttons
simultaneously while applying power
to the SCP 150.
Resetting the SCP 150 to factory defaults
SCP 150 AAP
PROJECTOR
IR
VOLUME
T o reset, press these two buttons
simultaneously while applying power
to the SCP 150 AAP.
Resetting the SCP 150 AAP to factory defaults
