Gaining Access to Memory Modules
Matrix DFE-Gold Series PoE Module Hardware Installation Guide B-11
Installing the DIMM
To install a DIMM, refer to Figure B‐8 and proceed as follows:
1. Insert the DIMM down between the connector fingers.
2. Pivot the DIMM downward so the tabs on the connector arms align with the two
alignment notches. With the two connector arms spread outward, push the DIMM
down between the connector arms. Then release the two connector arms to lock the
DIMM into place.
3. Reinstall the safety cover. Refer to “ Reinstalling the Safety Cover ” on page B‐13 for
instructions.

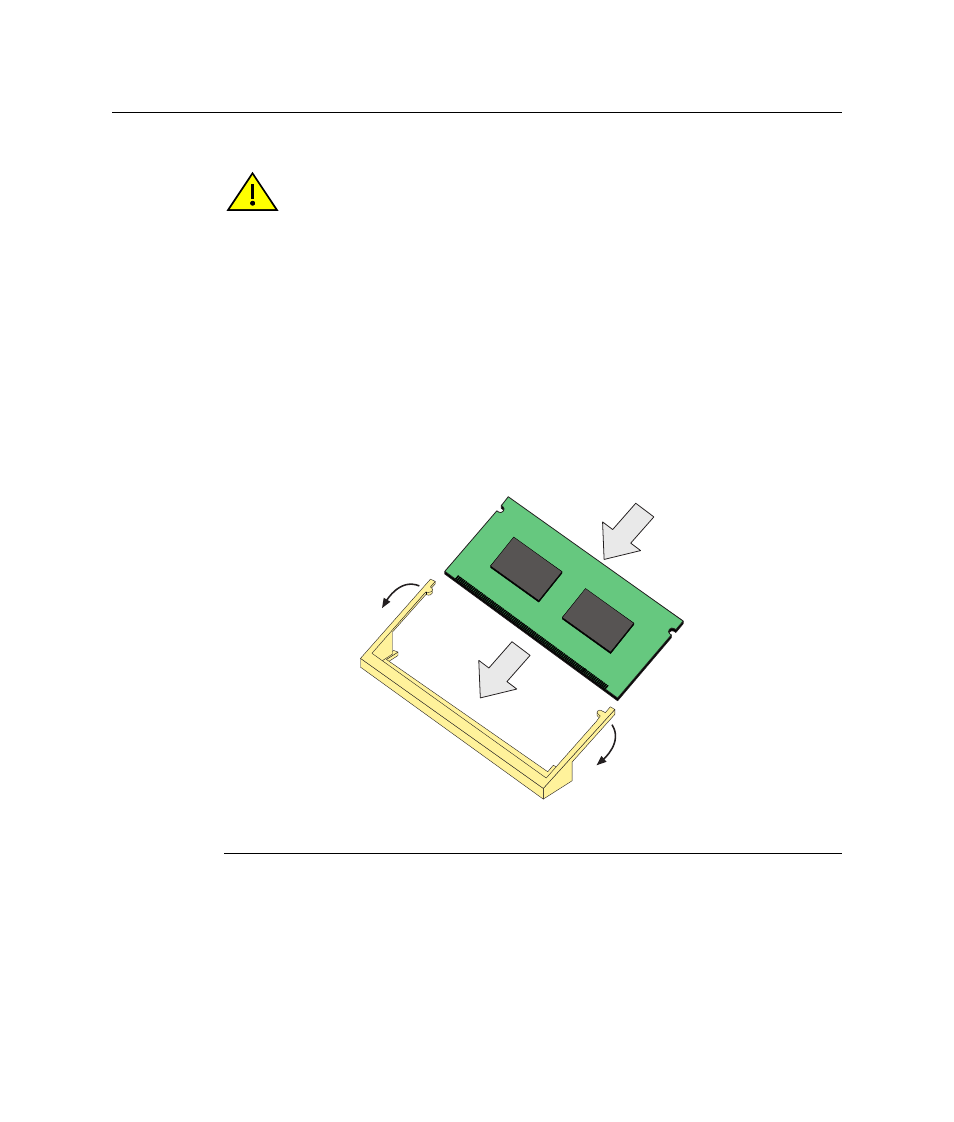

Figure B-8 Installing the DIMM
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
1 DIMM 3 Connector arms
2 Connector fingers 4 Alignment notches (2)
