Gaining Access to Memory Modules
B-10 Mode Switch Settings and Option Installations
DIMM Replacement Procedure
In the event that the DIMM needs to be replaced, the following sections explain how to
remove and install the DIMM. If you have questions concerning the replacement of the
DIMM, refer to
“Getting Help” on page xviii for details on how to contact
Enterasys Networks.
Removing the DIMM
To remove the existing DIMM, proceed as follows:
1. Remove and save the seven screws attaching the safety cover to the standoffs on the
main PC board.
2. Locate the DIMM connector on the main PC board. Refer back to Figure B‐2 for the
DIMM location on the 4H4285‐49.
3. Push the connector arms away from the DIMM, as shown in Figure B‐7 , and
simultaneously lift the DIMM enough to release it from the connector fingers.

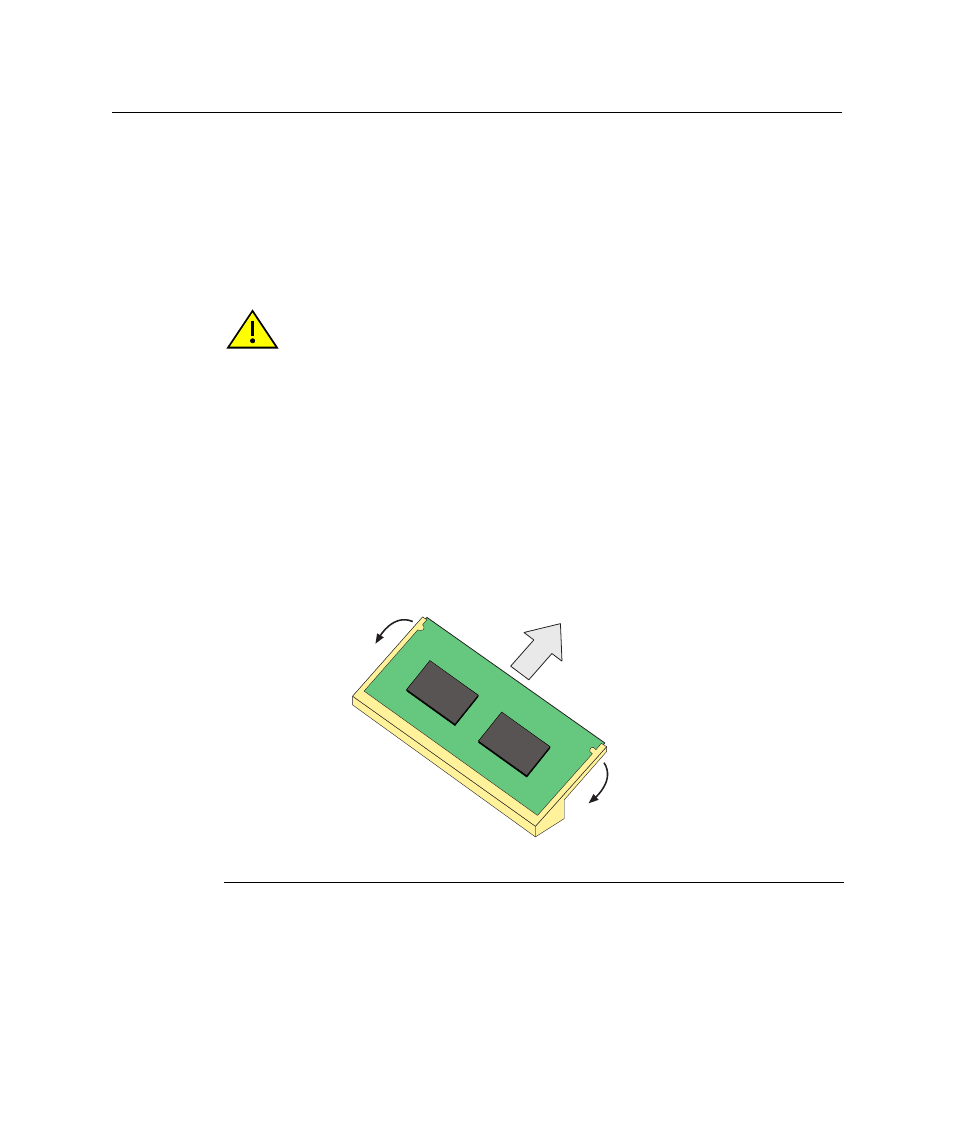

Figure B-7 Removing the Existing DIMM
4. Rotate the DIMM upwards, then remove it from the connector fingers.
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
1 Connector arms 2 DIMM 3 Connector fingers
