Completing the Installation
3-24 Installation
Completing the Installation
Completing the DFE module installation depends on if the module is being installed in:
• a new DFE module system (refer to “Completing the Installation” on page 3‐24), or
• an established, operating DFE module system (refer to “Completing the Installation
of a DFE‐Gold Module in an Existing System” on page 3‐26).
Completing the Installation of a New System
In a new system of DFE modules, one of the installed DFE modules will become the
management module on chassis power up, and all DFE modules will automatically be set
to the factory default values. A complete list of the factory default values are provided in
Chapter 3 of the Enterasys Matrix DFE‐Gold Series Configuration Guide.
After installing all DFE modules into the host chassis and making the connections to the
network, proceed to
“First‐Time Log‐In Using a Console Port Connection” on page 3‐25 to
access the module management startup screen from your PC, terminal, or modem
connection.

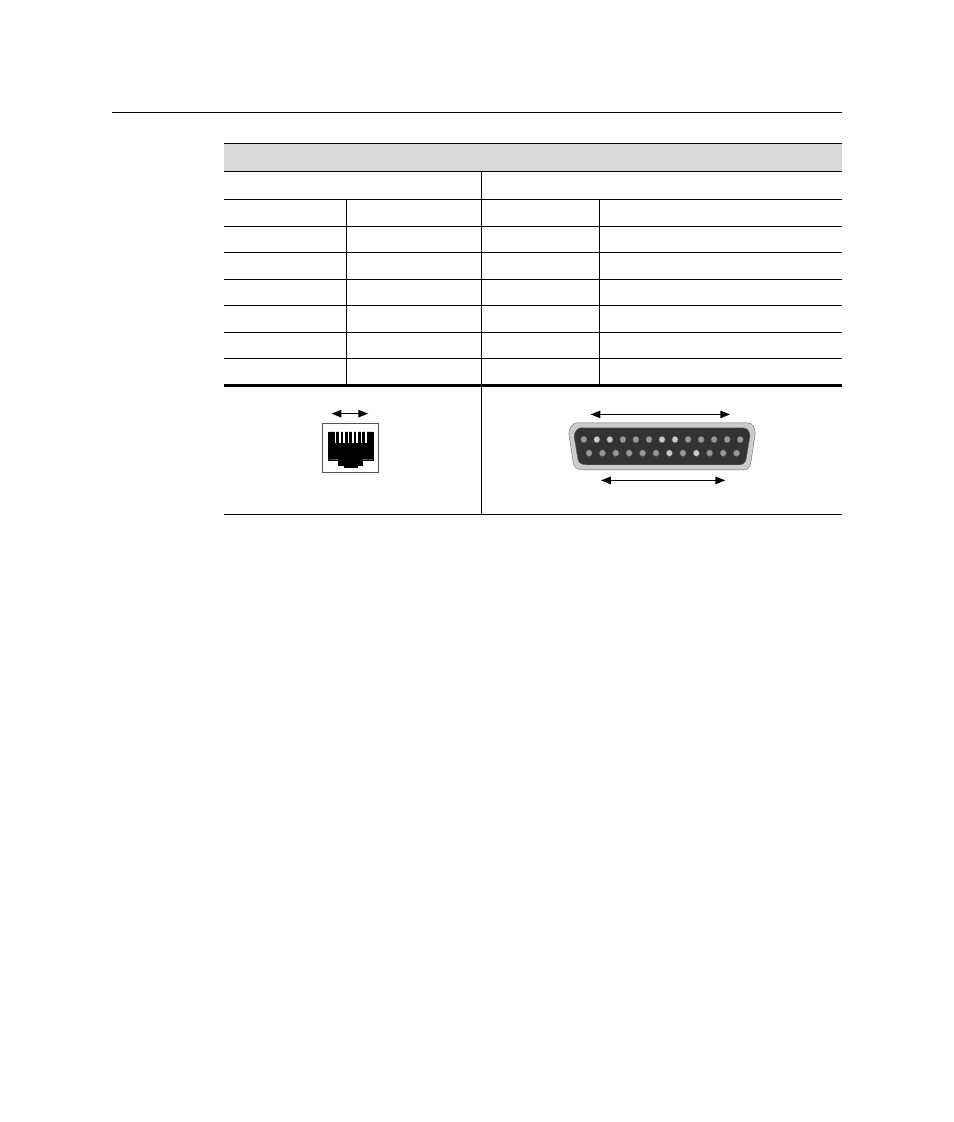

Modem Port Adapter Wiring and Signal Diagram
RJ45 DB25
Pin Conductor Pin Signal
1 Blue 2 Transmit (TX)
2 Orange 8 Data Carrier Detect (DCD)
4 Red 3 Receive
5 Green 7 Ground (GRD)
6 Yellow 20 Data Terminal Ready (DTR)
8 Gray 22 Ring Indicator
RJ45 Connector (Female)
8 1
Pins
DB25 Connector (Male)
13 1
Pins
14 25
