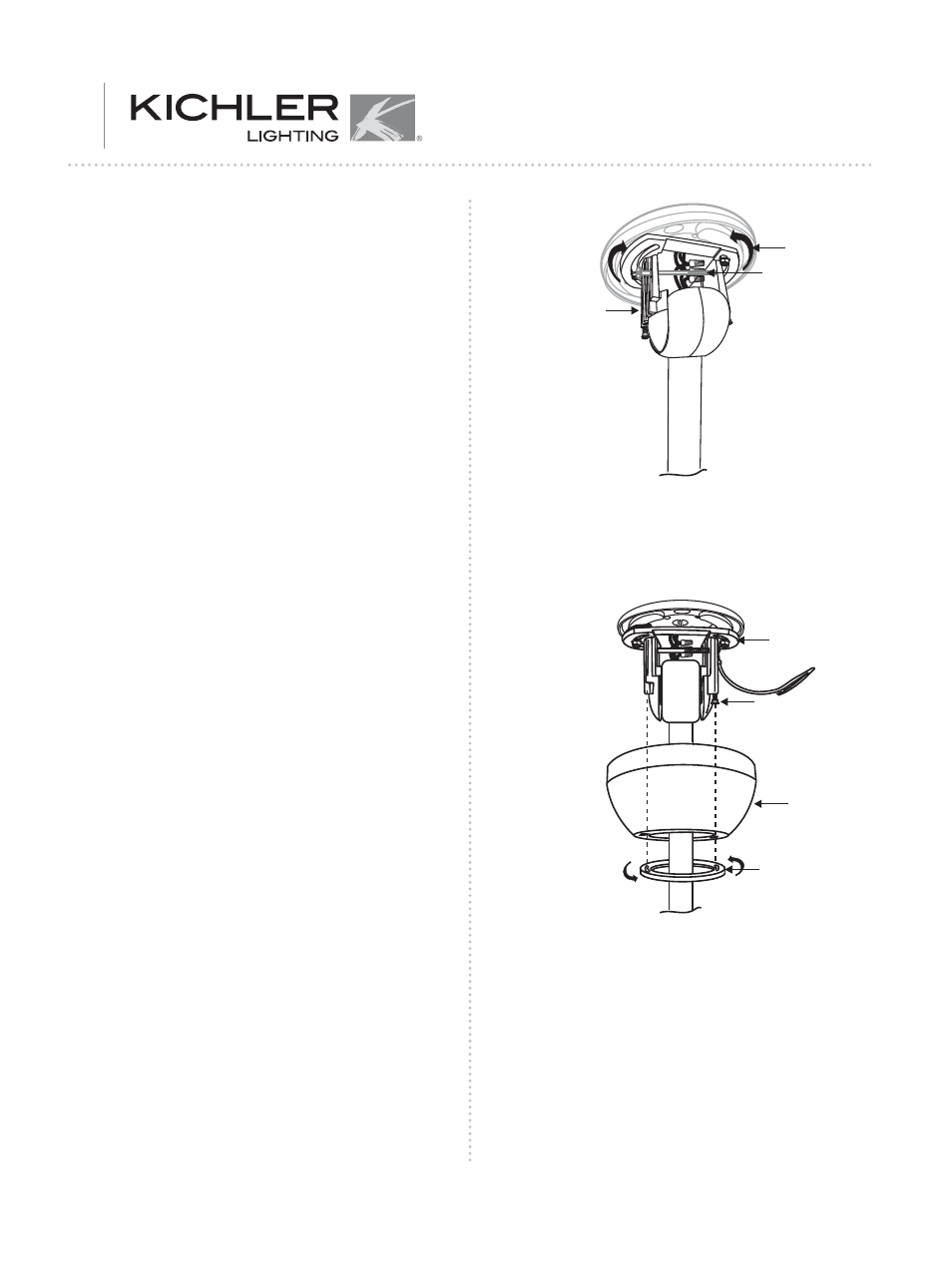

FINISHING THE INSTALLATION
1. Now, rotate the "entire fan and
slope adaptor assembly" (left or right) by
rotating the hanger bracket until the
downrod and the ceiling fan assembly are
hanging straight down and the entire
assembly "swings" freely in the exact
direction of the ceiling slope. (Fig. 15)
2. Now, Securely tighten the two (2) Hex
Nuts holding the hanger bracket to the
mounting plate. Making sure the Hanger
Bracket is secure and can not move.
Next, securely tighten the 3/16" X 65mm
Safety Pin. (Fig. 15)
3. Make all necessary electrical
connections by referring to your ceiling
fan installation manual.
Next, tuck all lead wires neatly into the
opening above the hanger ball.
4. Slide the canopy up to the ceiling and
place the mounting screws through the
key holes in the face of the canopy.
Rotate canopy clockwise. (Fig. 16)
Next, while holding the canopy with one
hand, slide the mounting screw cover
onto the heads of the mounting screws
and rotate clockwise until tight.
If necessary, adjust the canopy screws
until the canopy and mounting screw
cover are snug.
Hanger
bracket
Canopy
Canopy cover
Screws
7
Rotate
Hanger
bracket
Tighten
3/16" X 65mm
Safety Pin
