RGB 500 Series • Dimensions RGB 500 Series • Dimensions
Dimensions, cont’d
HAND SAND TO
0.06" RADIUS AROUND
THE TOP OF THESE EDGES.
RGB 500 Dual and RGB 560 Dual Faceplates
RGB 500 Dual faceplate dimensions
RGB 560 Dual faceplate dimensions
HAND SAND TO
0.06" RADIUS AROUND
THE TOP OF THESE EDGES.
C-3

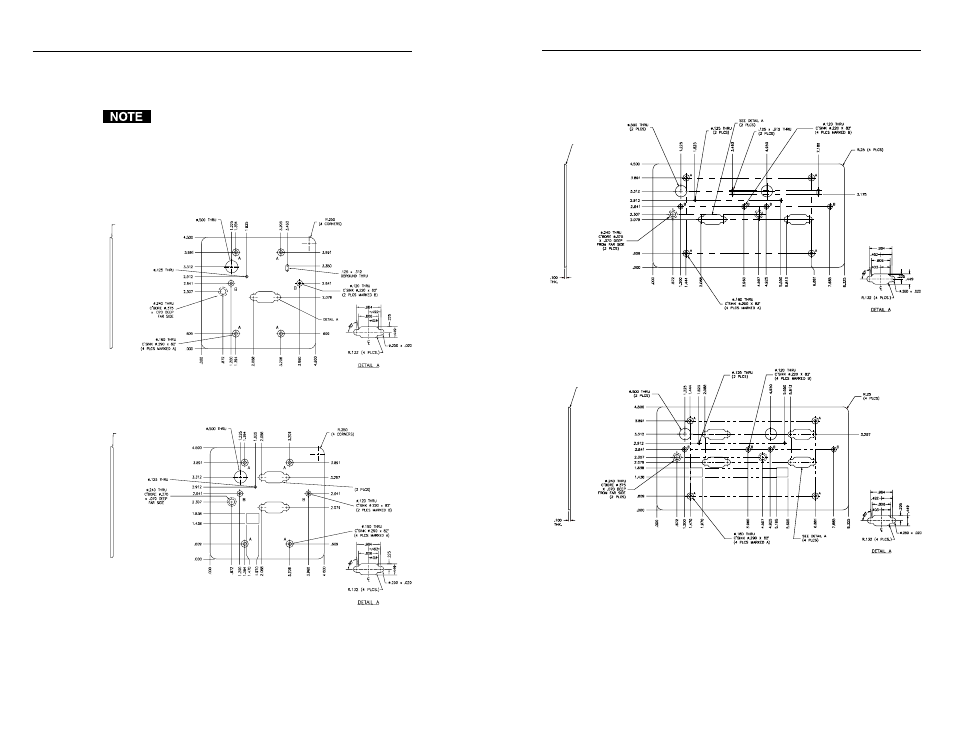

Dimensions of the RGB 500 Series faceplates are provided here
for those who wish to make their own customized faceplates.
The diagrams are shown at 70% of actual size.
All dimensions are given in inches.
RGB 500 and RGB 560 Faceplates
RGB 500 faceplate dimensions
RGB 560 faceplate dimensions
Dimensions
HAND SAND TO 0.06" RADIUS
AROUND THE TOP OF THESE EDGES.
HAND SAND TO
0.06" RADIUS AROUND
THE TOP OF THESE EDGES.
DETAIL A
C-2
