Single-Compressor Module

Installation

2.6.5 Wiring

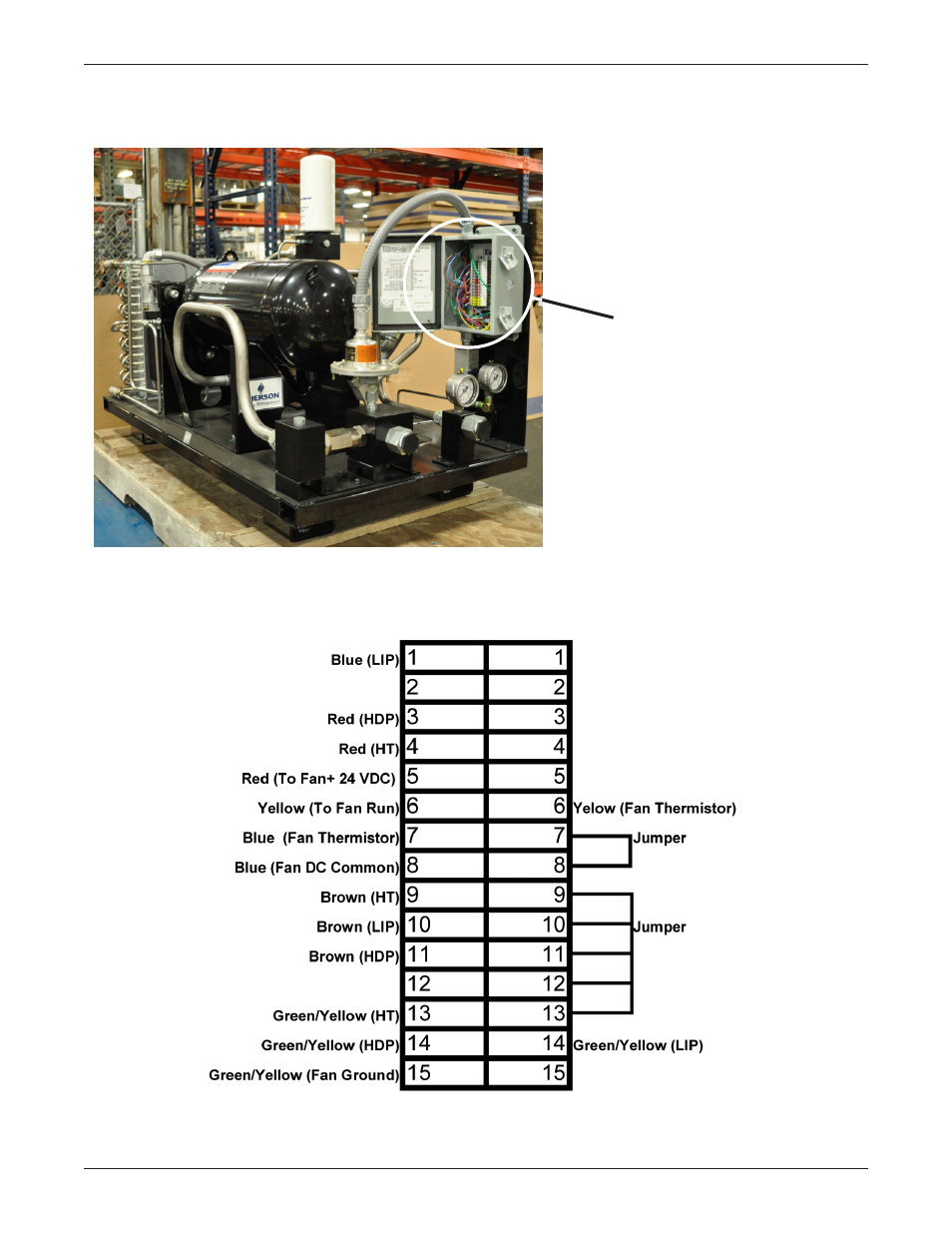

Figure 12 Control Circuit Terminations

Control Wiring Terminations
