11

2008SSD-34 (5/11)

10

2008SSD-34 (5/11)

Single-Compressor Module

Installation

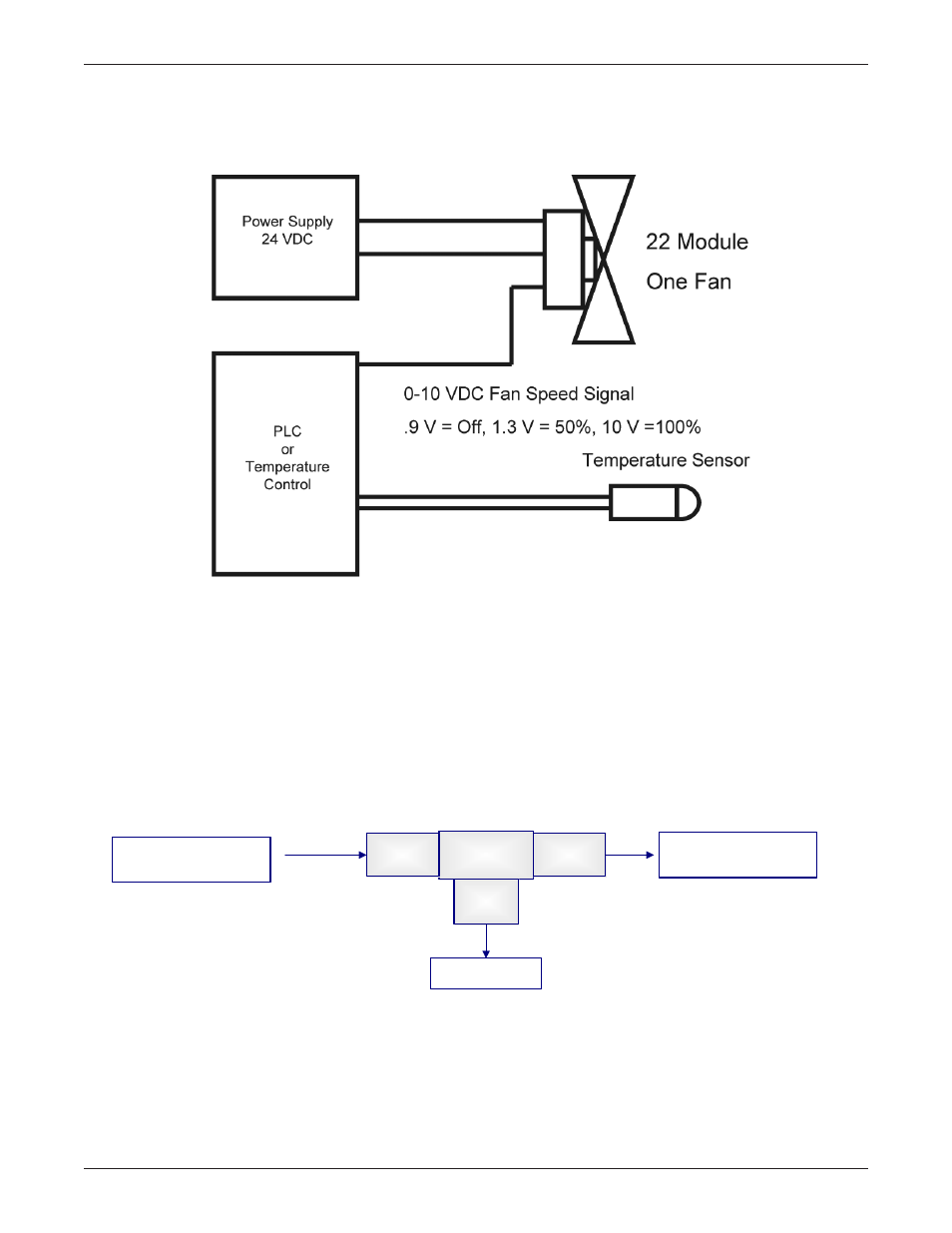

Figure 8 Optional Customer-Installed High Temperature Fan Control System

• Compressor requirements: 0.8 to 2 GPM (3.0-755 LPM) flow rate
• Thermal oil bypass valve, standard setting: 200°F (93°C) / 250°F model specific
• Thermal bypass valve operation (valve’s purpose is to provide discharge temperature control)
• Oil flow on valve is A to B when the unit is cold and A to C when the heat rises (see

Figure 9).

Figure 9 Oil Cooling and Thermal Valve

A

B

C

Oil Cooler

Return

to Compressor

1st-Stage Separator
