2008SSD-34 (5/11)
Single-Compressor Module
Installation
2.5 Process and Instrumentation Diagrams (P&IDs)

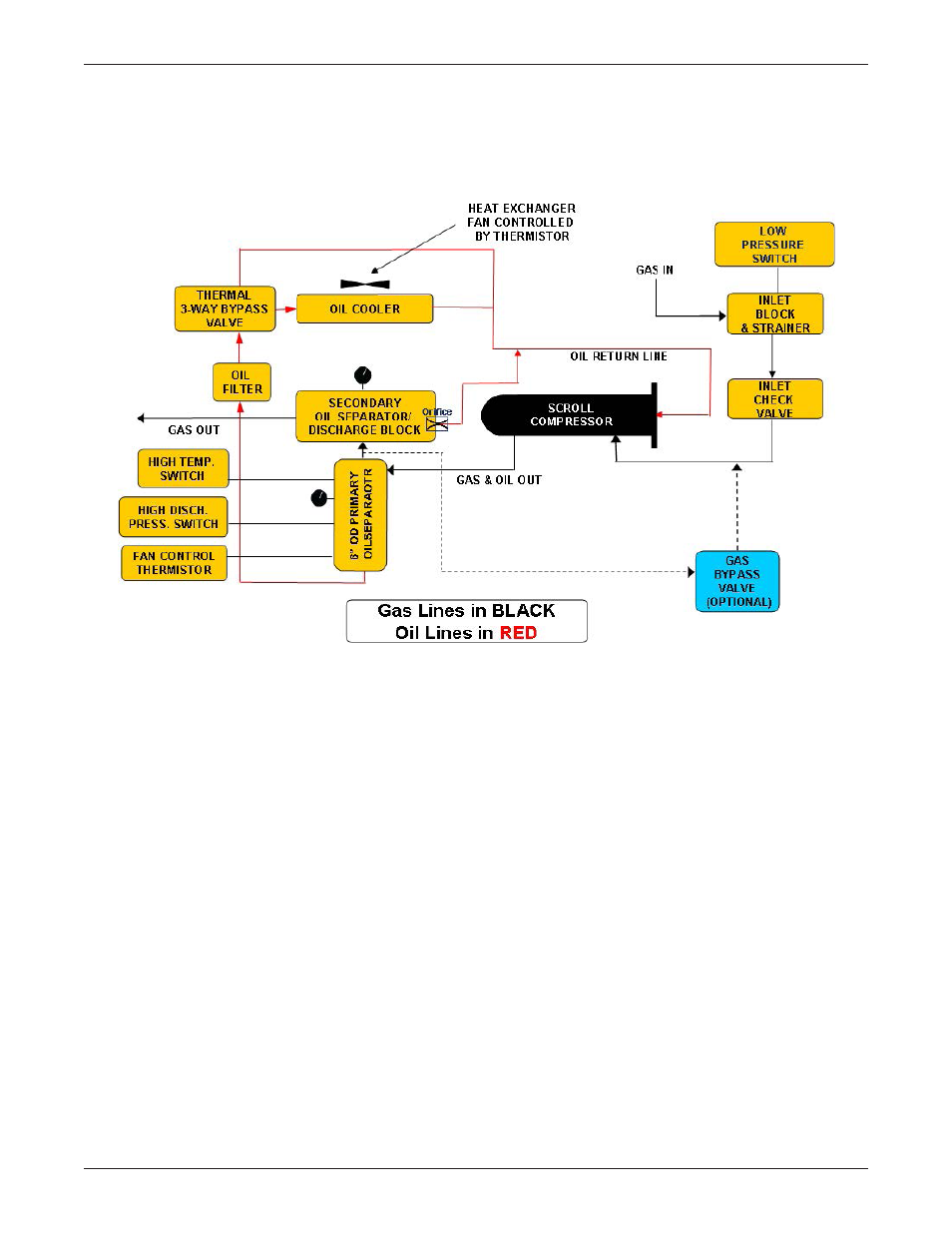

Figure 5 Compressor Module Gas and Oil Flow Diagram and Safety Shutdowns
Single Compressor Module Gas & Oil Flow Diagram & Safety Shutdowns
(Gas bypass valve shown is optional)
