Operation, cont’d
MGP 464 • Operation 3-18
PRELIMINAR
Y
Making changes to the serial port and IP configuration
To make changes to the serial port configuration, IP address, DHCP mode, Gateway
address, and/or Subnet mask, you must access the edit level screens as follows:
1
. With any Comm./IP Configuration menu view-level screen displayed,
press the Enter button and hold it until the Serial Config screen appears
(approximately 2 seconds).
2 . Press Next repeatedly to cycle through the edit level screens.
3 . To enter or change information on each screen, rotate the horizontal Adjust
knob ( [ ) to move the angle brackets to the desired setting. Rotate the
vertical Adjust knob ( { ) to adjust the setting.
4 . When finished editing the settings for the selected item, either press Next to
go to the editing screen for the next item, or press Menu to exit serial/IP edit
mode and go to the next menu (Advanced Configuration).
Screens are provided for editing the following parameters:
•
Serial Config: Configure the serial port by switching between RS-232 and
RS-422, and selecting the baud rate.
• Set DHCP Mode: Set DHCP to On or Off.
N DHCP must be off before you can edit the IP addresses.
• Set IP Address: Set the IP address.
• Set Gateway Addr: Set the gateway address.
• Set Subnet Mask: Set the subnet mask.
N You cannot edit the MAC address; there is no editing screen for it.
Background Capture
Comm. / IP
Configuration
Menu
Serial Port
RS232 9600
Next
IP Address
010.013.005.130
Next
Set DHCP Mode
Next
Rotate either Adjust knob
to adjust the submenus.
Press and
hold the
Enter button
for 2 seconds.
Next
DHCP Mode
Off
Next
Serial Config
9600
Next Next
MAC Address
0005A600C1A5
Gateway Address
010.013.000.100
NEXT
Set Gateway Addr
<010>.013.000.100
Subnet Mask
255.255.000.000
Set IP Address
<010>.013.005.130
Next
Set Subnet Mask
<255>.255.000.000
Next
Next
Next
Menu
Menu
View level Edit level
Advanced
Configuration

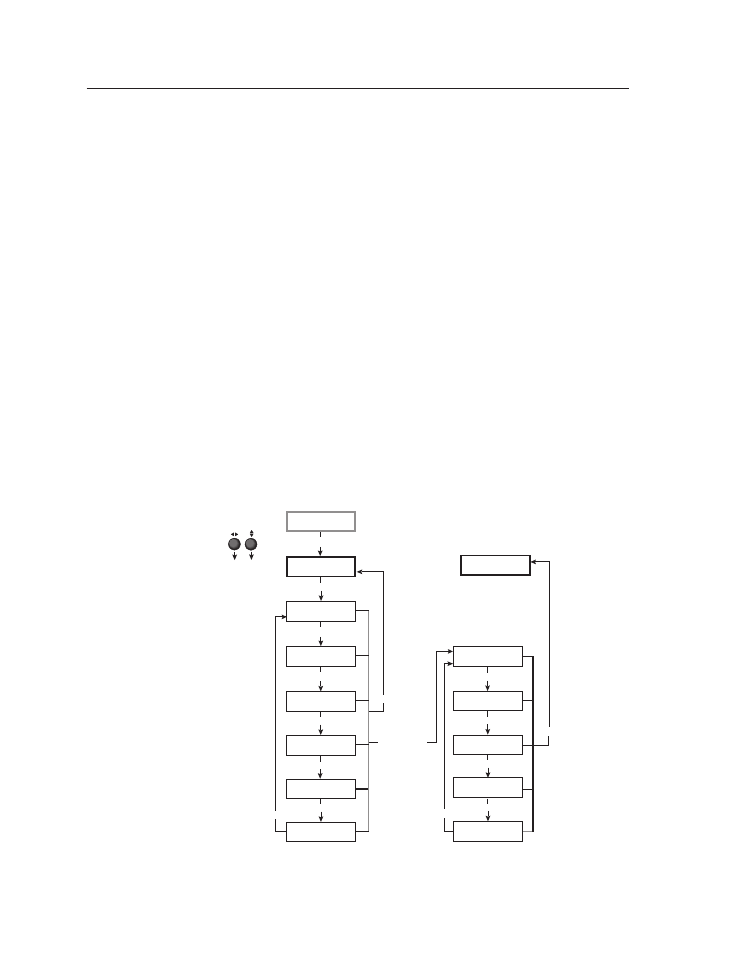

Communication/IP Configuration menu flow
