12 General information
UM5C05C P0745680 Standard 6.00 October 2001 Emerson Energy Systems
1.2. Models and mounting configurations
Two models of 200I rectifiers are available :
•
Models NT5C05CA / CB, without an ac cable
•
Model NT5C05CC, equipped with an ac cable terminated with a
male plug
Up to six switch mode 200I rectifiers can be installed in a 23-inch
NT6C43CB 1200 A cabinet or in an NT6C40 type frame. The cabinet is
specifically designed to provide modularity within a very compact unit.
For wooden floor applications in a zone 4 seismic region, up to three
rectifiers can be installed in a mounting frame mounting, but they must be
installed in the three lowest mounting positions in the frame.

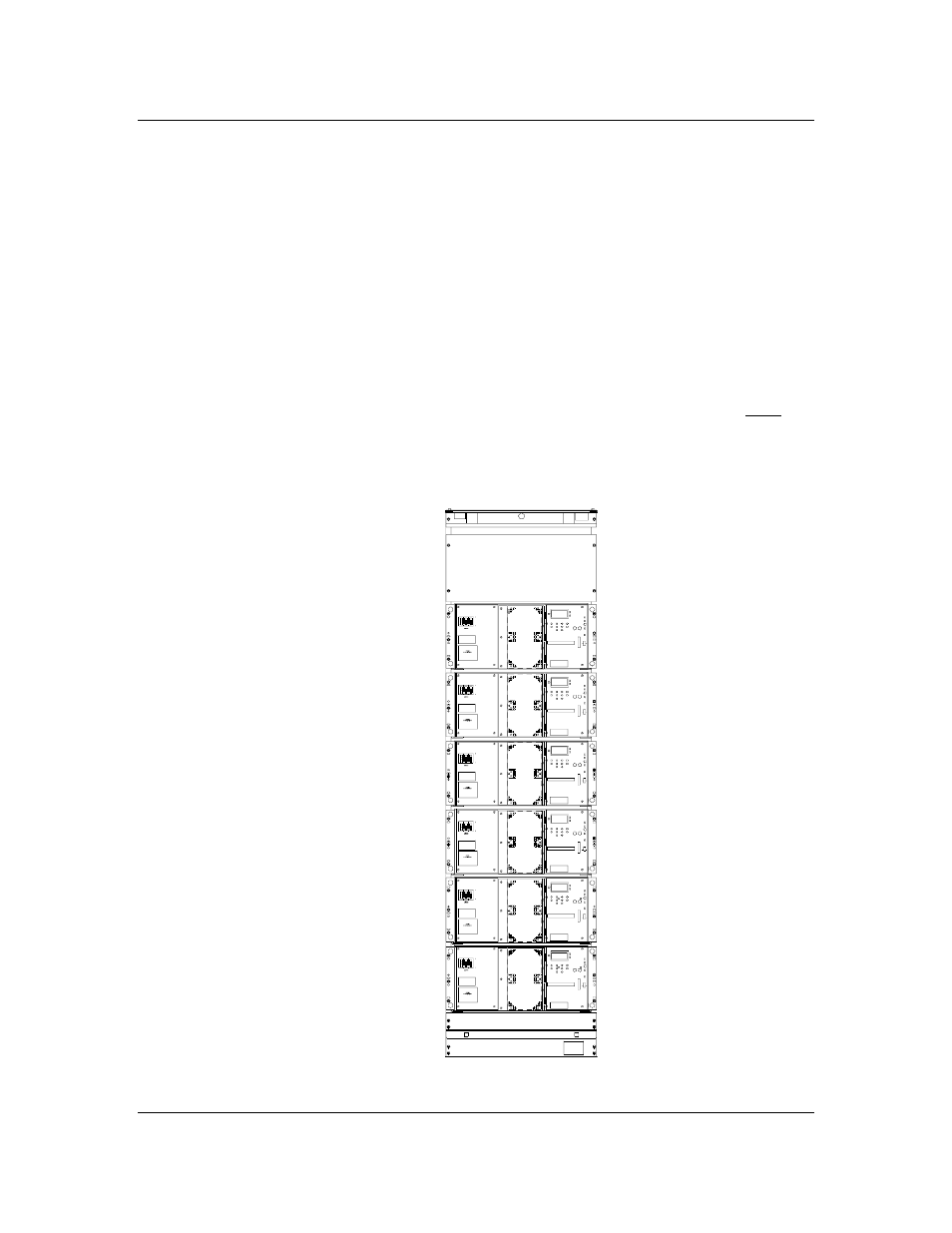

Figure 2 - Typical mounting in a cabinet or frame
RECTIFIER No. 1
RECTIFIER No. 2
RECTIFIER No. 3
RECTIFIER No. 4
RECTIFIER No. 5
RECTIFIER No. 6
