❏ Avoid locations near potential sources of
interference such as loud speakers or cordless
phones.
❏ Avoid locations near TVs, radios, air
conditioners, or humidifiers.
❏ Keep the printer away from combustible
substances.
Deciding Where to Unpack the Printer
Before unpacking, read the followings:
❏ Setup and assemble the printer near to the
chosen place of use, as moving the printer may
result in damage.
❏ Allow floor space of 4 × 4 m approx., and
height of at least two times that of the larger
box containing the printer unit.
Unpacking and Assembling the
Printer
Unpacking the base unit
Open the box and remove the fixers from the sides
of the box. Lift the box up and away from the
printer, then fold it and set it aside.
c Caution:
The printer unit is heavy and unwieldy. Have
two people unpack the printer unit, and four
people place the printer unit on top of the base
unit.

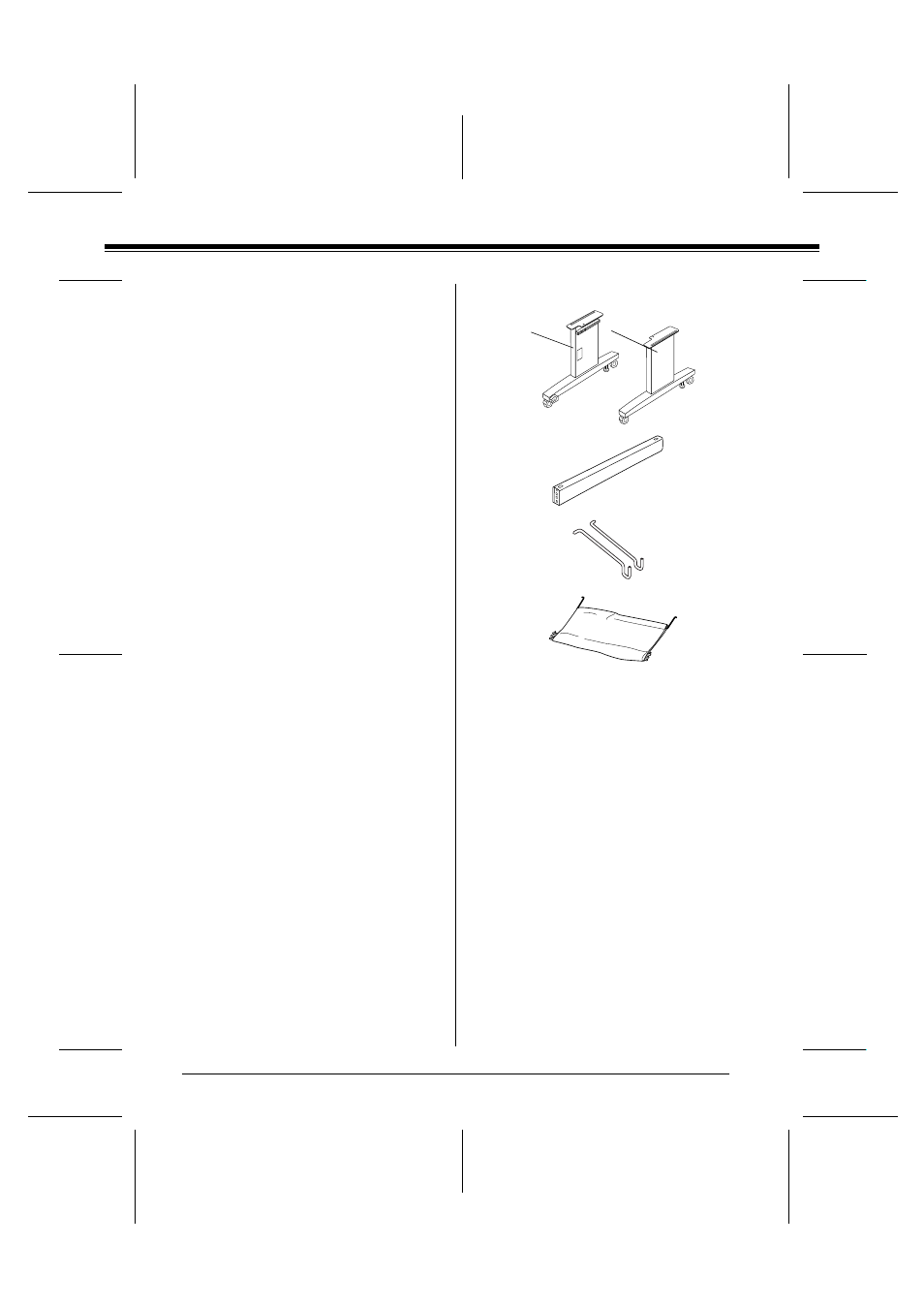

Parts:
A: Base upright, left
B: Base upright, right
C: Horizontal strut
D: Basket hooks (2)
E: Paper basket
A B
E
C
D
