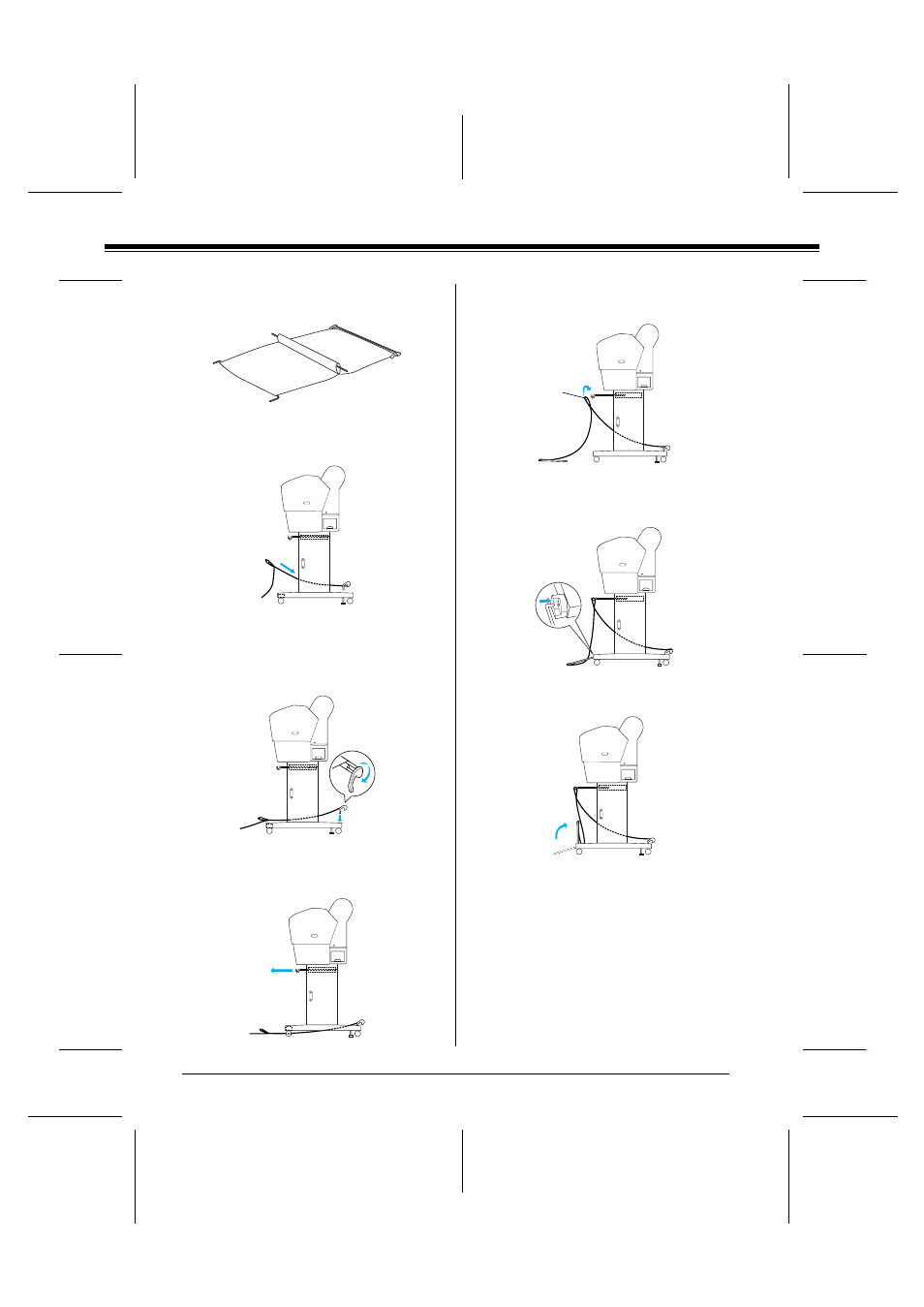

2. Turning the stitch side downward, spread the
paper basket on the floor.
3. Holding the rear shaft, pass it under the
horizontal struts.
4. Rotate the rear paper basket joints to enfold
the bar that is not attached to the fabric. Insert
the stanchion pins into the holes on the base
upright left and right, as shown.
5. Slide out the upper basket hooks to their full
length.
6. Hook both ends of the center shaft (O) on the
upper basket hooks.
7. Insert the lower shafts into the holes on the
bottom of the base unit as shown below.
8. Stand the lower shafts.
9. As shown in the figure, hook the paper feed
support film on the shaft of the paper basket
(the movable hook (a) on the intermediate
shaft and the stability hook (b) on the back
shaft), so that it hangs along the inner surface
of the basket.
O
