Accessories:

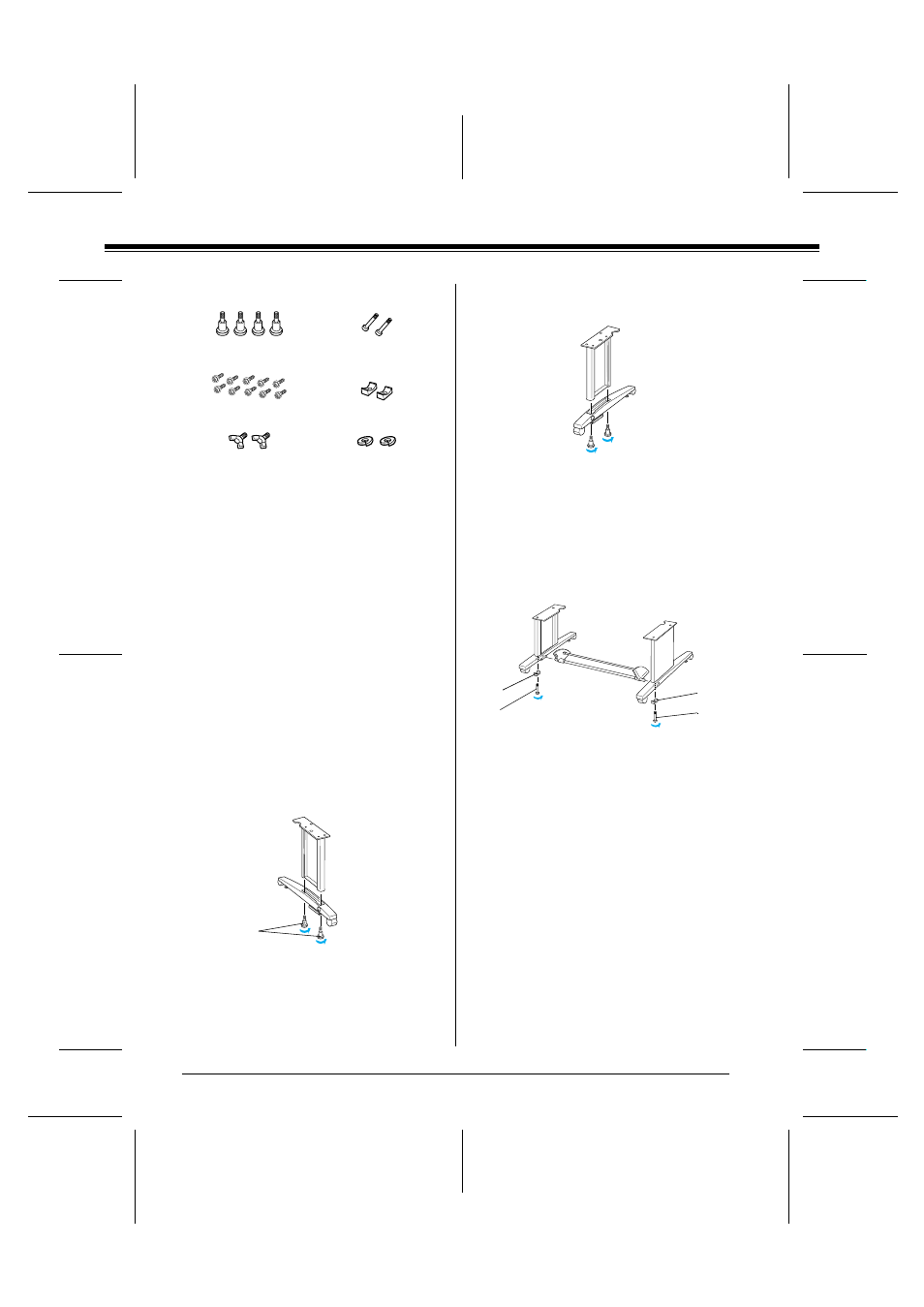

Assembling the Stand
c
Caution:
Assembly requires two people. Be careful to
match the right and left legs (R and L is engraved
on the inner side of the base parts) and base parts.
1. Insert the right leg into the right base by
sliding the leg slot onto the base projection as
shown. Use the hex wrench to fasten the leg to
the base with 2 base bolts (H).
2. Assemble the left leg and left base in the same
way as step 1.
3. Insert the bottom horizontal strut into the
right and left bases as shown. Use the hex
wrench (G) to fasten the strut with collars (K)
and strut bolts (I).
Note:
After assembling the bases and bottom horizontal
strut, make sure that they are fastened tightly.
H:
Base bolts (4)
I:
Strut bolts (2)
J:
Hex socket head bolts with washers (10)
K:
Collars (2)
L:
Wing screws (2)
M:
Washers (2)
H
I
K
L
M
J
H
K
I
K
I
