18

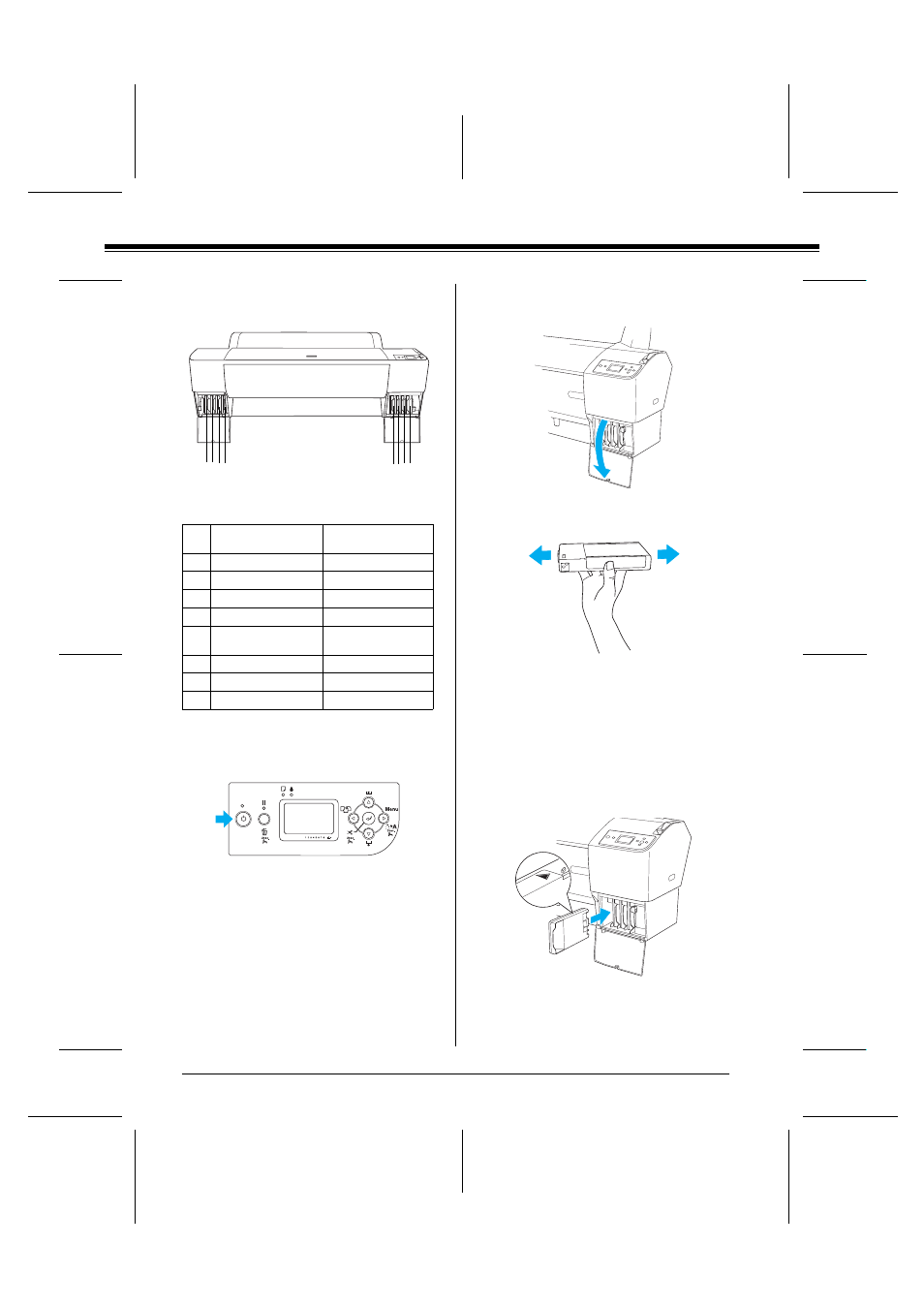

❏ Each slot can hold a particular color of ink. Be sure
to install the ink cartridges in the correct slots
according to the ink mode you choose.
1. Turn on the printer by pressing the Power
button. After a short time INSTALL INK
CARTRIDGE
is displayed on the LCD panel.
2. Open the ink compartment cover, and make
sure that the ink lever is in the up position.
3. Remove the package from an ink cartridge.
c Caution:
Do not shake cartridges (that have been
installed previously) with too much force.
4. Hold the ink cartridge with the arrow mark
facing up and pointing to the rear of the
printer, and then insert it in the slot until the
corresponding ink mark is displayed on the
LCD.
5. Repeat step 3 and 4 for the other ink cartridges.
No. EPSON Stylus Pro
9800/7800 EPSON Stylus Pro
9400/7400
#1 Light Light Black Matte Black
#2 Light Magenta Matte Black
#3 Light Cyan Magenta
#4 Light Black Magenta
#5 Matte Black or
Photo Black Cyan
#6 Cyan Cyan
#7 Magenta Yellow
#8 Yellow Yellow
1 2 3 4 5 6 7 8
