WARNING: Failure to position the parts in accordance

with this diagram or failure to use only parts

specifically approved with this appliance may result in

property damage or personal injury.

Attention: Do not use Figure 48B or Figure 49 to order

logs. Refer to parts view on page 45 and parts list on page

46 to order logs and/or ember material for your appropriate

fireplace model.

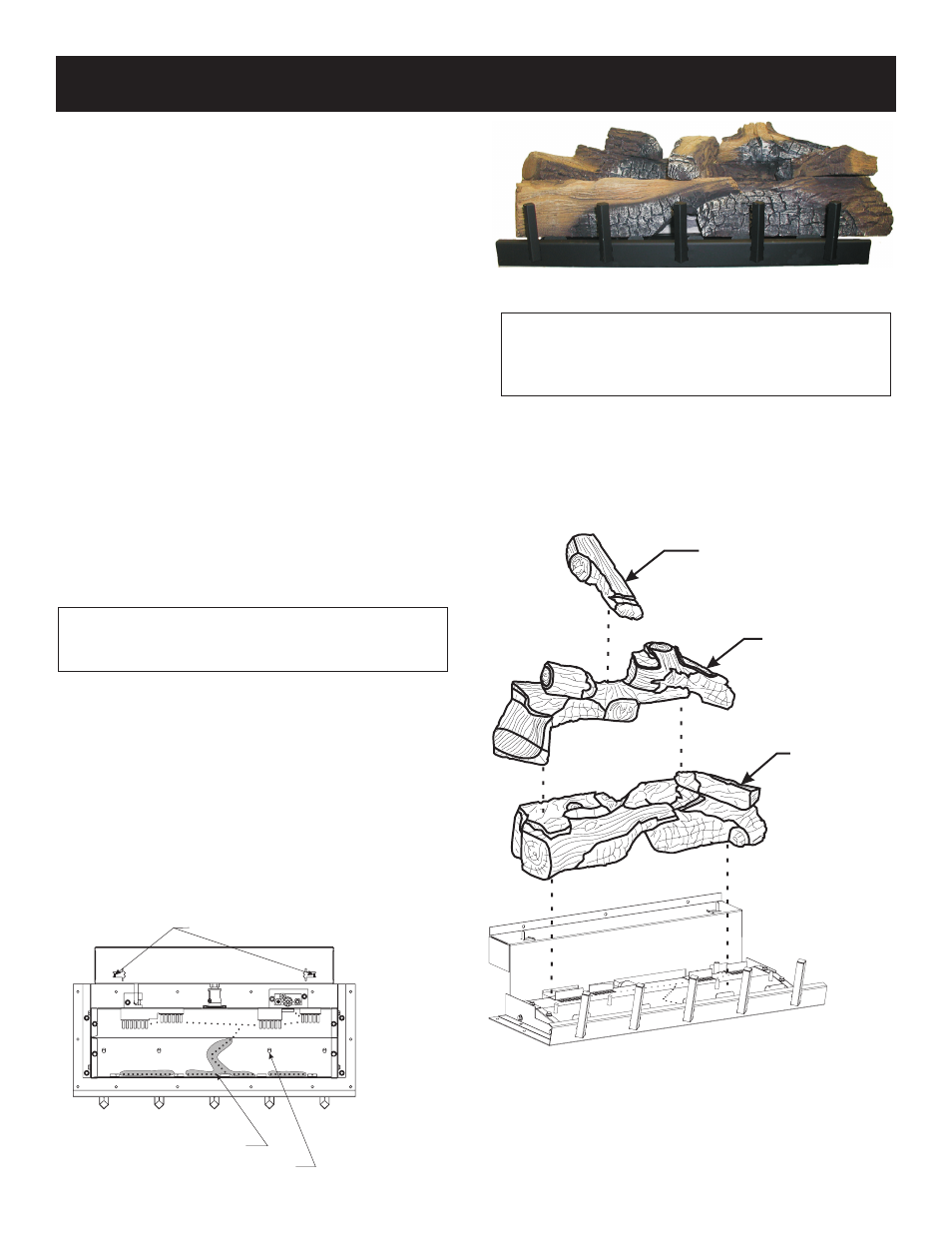

LOG PLACEMENT (3 LOG SET)

Before you begin: If you are installing logs into the DVP42

or DVP48 model then this fireplace is supplied with a set of

three ceramic fiber logs. Do not handle these logs with your

bare hands. Always wear gloves to prevent skin irritation

from ceramic fibers. After handling logs, wash your hands

gently with soap and water to remove any traces of fiber.
The positioning of logs is critical to safe and clean operation

of this fireplace. Sooting and other problems may result if the

logs are not properly and firmly positioned in the fireplace.

Please refer to Figure 48A, Figure 48B, and Figure 49 and

corresponding WARNING, when completing the following

log placement steps.

1. Remove top louver, grasp louver, lift and pull forward.

2. Lower bottom louver, lift and hinge forward.

3. Release two glass frame spring clamps at bottom of

firebox

4. Place bottom log onto main burner. Align holes on

bottom log with (4) locator pins on burner.

5. Place rear log on rear log shelf. Place rear log so that the

locator holes align with the (2) locator tabs in the log

support shelf.

6. Place top branch onto flat area of rear log and over the

front of the bottom log.

7. Place decorative rock in front of grates and sides of main

burner.

ATTENTION: Do not place decorative rock on logs or

on burner. The decorative rock should only be placed

on the fireplace floor.

8. After all logs are properly positioned, place small "dime"

size pieces of Rockwool lightly across the front round

"blueflame" ports. Place the ember material (Rockwool

pieces) side by side. Do not stack more than one layer of

embers across the burner ports. See Figure 48A.

9. Replace glass door onto firebox.
10. Secure the two glass frame spring clamps at bottom of

firebox.

11. Align the tabs on top louver brackets with slots in front

posts to secure top louver.

12. Close bottom louver. Lift slightly to engage the end tabs

into the slots in fireplace sides to close louver panel.

TOP BRANCH

REAR LOG

BOTTOM LOG

Figure 48B

Figure 48A

EMBER PLACEMENT

REAR LOG LOCATOR TABS

BOTTOM LOG LOCATOR PINS

Figure 49
