Page 22

17375-6-0705

I

nstalling Vent Components (Figure 36)

Begin the vent system installation by installing the first component,

90° elbow to the starting collars or straight pipe on the top of the

appliance, then the straight pipe length and then horizontal or

vertical termination kit.
NOTE: All outer connection joints must be sealed with

aluminum tape, screws or silicone sealant rated above

300°F/149°C. The inner flue joints do not require any

sealant.

All vent system components lock into place by sliding the concentric

pipe section with four (4) equally spaced interior beads onto the

appliance collar or previously installed component end with four

(4) equally spaced indented sections. When the internal beads of

each starting outer pipe line up, rotate pipe section clockwise 90°

(approximately 3 inches). The vent pipe is now locked together.
Continue adding components per the pre-planned vent system

configuration. Be certain that each succeeding vent component

is securely fitted and locked into the preceding component in the

vent system.

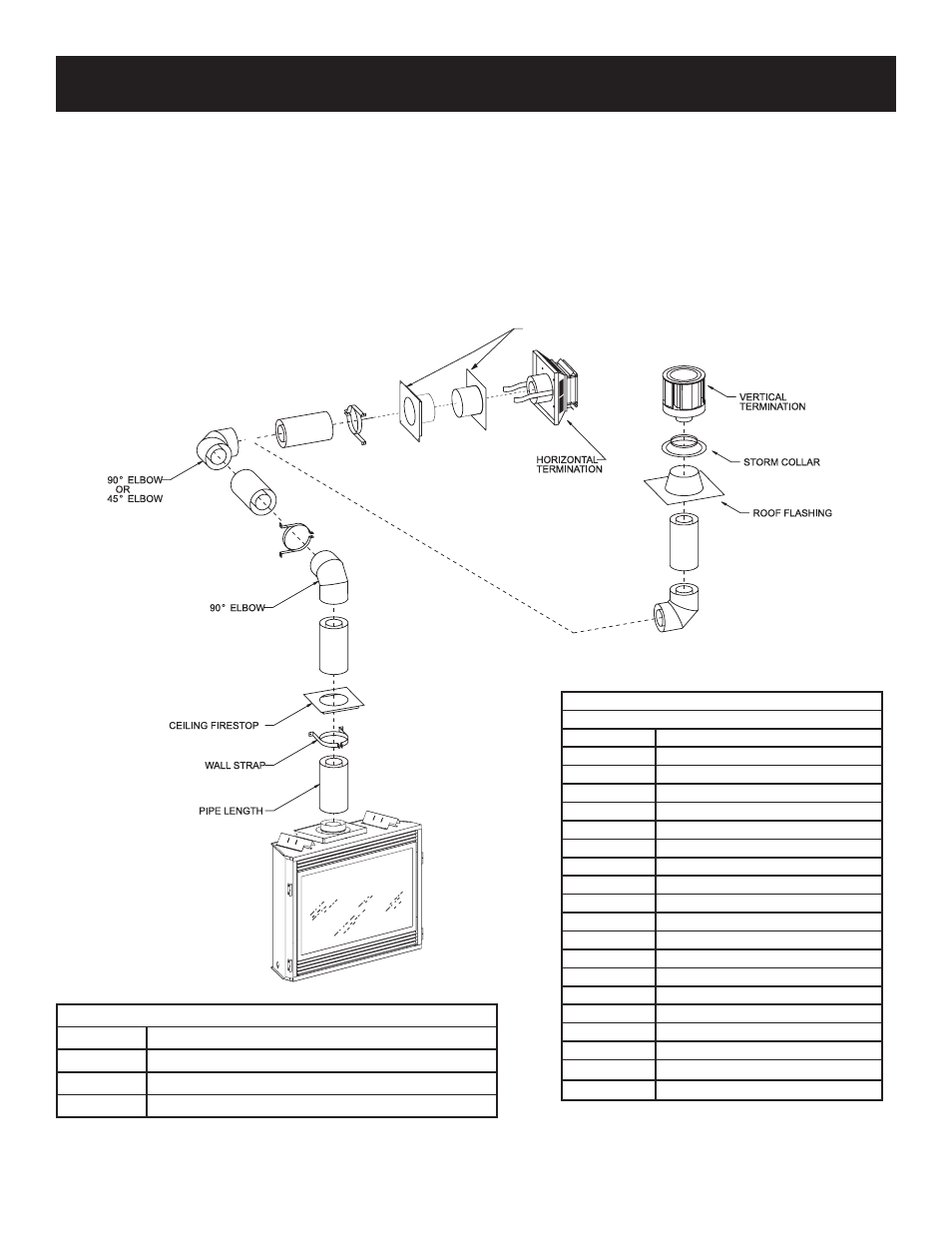

Figure 36

VENT SYSTEM IDENTIFICATION

WALL THIMBLE

(MAXIMUM OF

THREE 90 ELBOWS)

(MAXIMUM OF

TWO 90 ELBOWS)

Venting Components

Simpson Dura-Vent

Part Number

Description

SD-1208

6" Pipe Length

SD-1207

9" Pipe Length

SD-1206

12" Pipe Length

SD-1204

24" Pipe Length

SD-1203

36" Pipe Length

SD-1202

48" Pipe Length

SD-1211

Adjustable Pipe Length 11 - 14 5/8"

SD-1284

Horizontal Square Termination Cap

SD-1250

Vinyl Siding Standoff

SD-1245

45° Elbow

SD-1290

90° Elbow

SD-1249

Wall Firestop

SD-1263

Ceiling Firestop

SD-1243

Roof Flashing - 0/12 to 6/12 Roof Pitch

SD-1253

Storm Collar

SD-91291

High Wind Vertical Top

SD-1281

36" Snorkel

SD-1282

14" Firestop Snorkel

SD-1247

Wall Thimble Firestop

DV VENT KITS

DVVK-5V

DV vent kit vertical, Flashing Kit w/Vertical Cap

DVVK-5T

DV vent kit top thru-the-wall for 8 to 11" wall thickness

DVVK-5R

DV vent kit rear thru-the wall for 5 to 7" wall thickness

DVVK-5TS

DV vent kit top thru-the-wall for 4.5 to 6" wall thickness
