Page 12

17375-6-0705

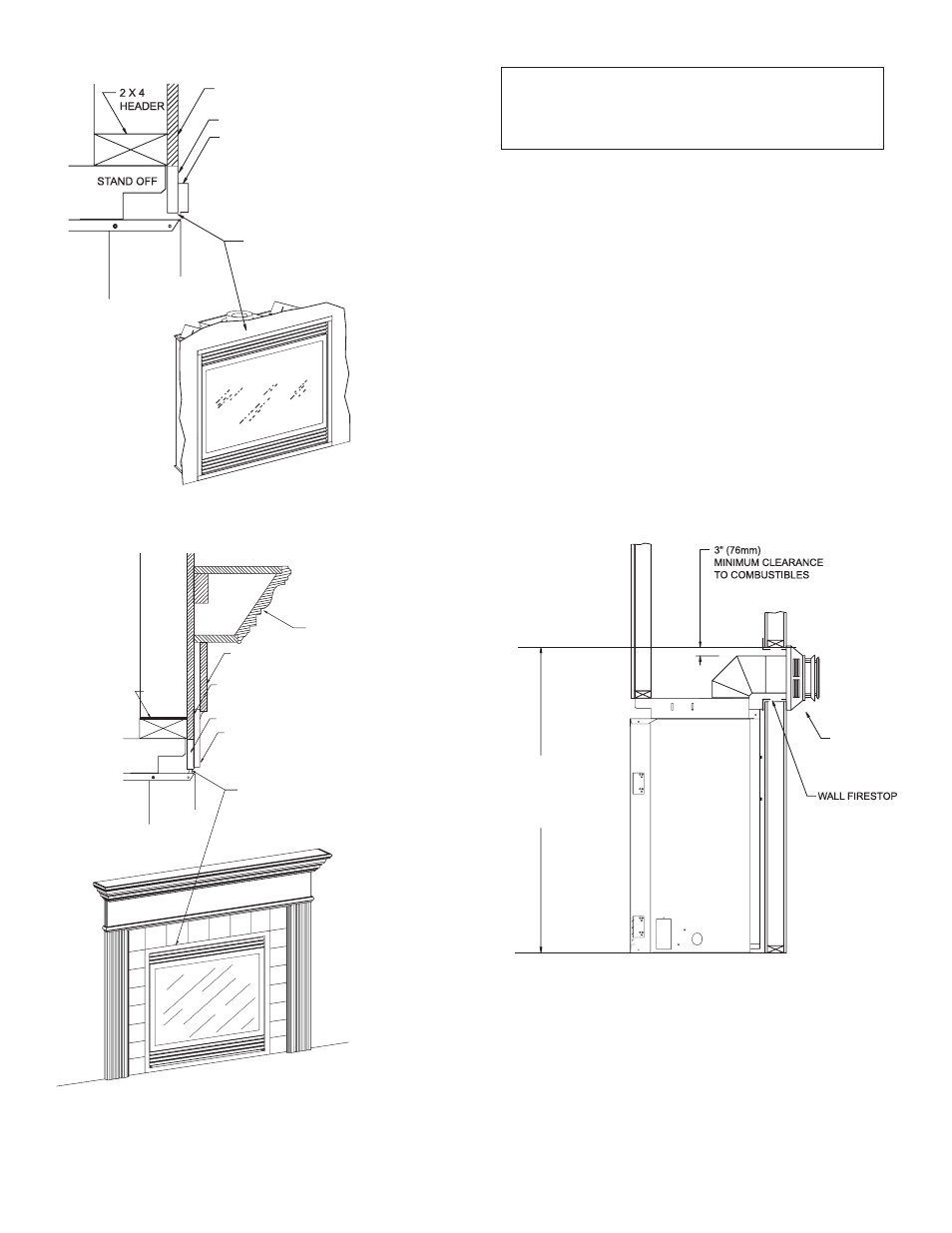

Flush Wall Installation

Figure 12

Combustible Surround Installation

Figure 13

Attention:

Cold climate installation recommendation:

When installing this unit against a non-insulated

exterior wall, it is mandatory that the outer walls be

insulated to conform to applicable insulation codes.

Vent Runs (Figures 14, 15, 16, 17 and 18)

In planning the installation for the fireplace, it is necessary to

install certain components before the appliance is completely

positioned and installed. These include the direct vent system,

gas piping for the appliance and the electrical wiring. (If the fan

option is used.)
The appliance can be mounted on any of the following surfaces:

1. A flat, hard combustible (burnable) surface.

2. A raised wooden platform.

3. Four (4) corner supports. (Example: Four (4) concrete masonry

blocks.) These supports must be positioned so they contact all

four (4) perimeter edges on the bottom of the unit.

VERTICAL, 90° ELBOW WITH HORIZONTAL

TERMINATION

Figure 14

3! OF NON-COMBUSTIBLE MATERIAL

FINISHED WALL

FRONT TRIM OR NON-

COMBUSTIBLE MA TERIAL

(INSTALLA TION IS OPTIONAL)

JOINT BETWEEN FINISHED

WALL AND UNIT SEALED

WITH 300° F, 149° C SEALANT

MATERIAL (SEALANT IS OPTIONAL)

DVP42, 48

49 ½”(126 mm)

TO BOTTOM

OF UNIT

VENT CAP/
THIMBLE

3! OF NON-COMBUSTIBLE MATERIAL

FINISHED WALL

FRONT TRIM OR NON-COMBUSTIBLE

MATERIAL (INSTALLATION IS OPTIONAL)

JOINT BETWEEN FINISHED WALL AND

UNIT SEALED WITH 300° F 149

MATERIAL (SEALANT IS OPTIONAL)

° C

SEALANT

COMBUSTIBLE SURROUND

MANTELSHELF

2 X 4

HEADER

STAND OFF

/

THIMBLE
