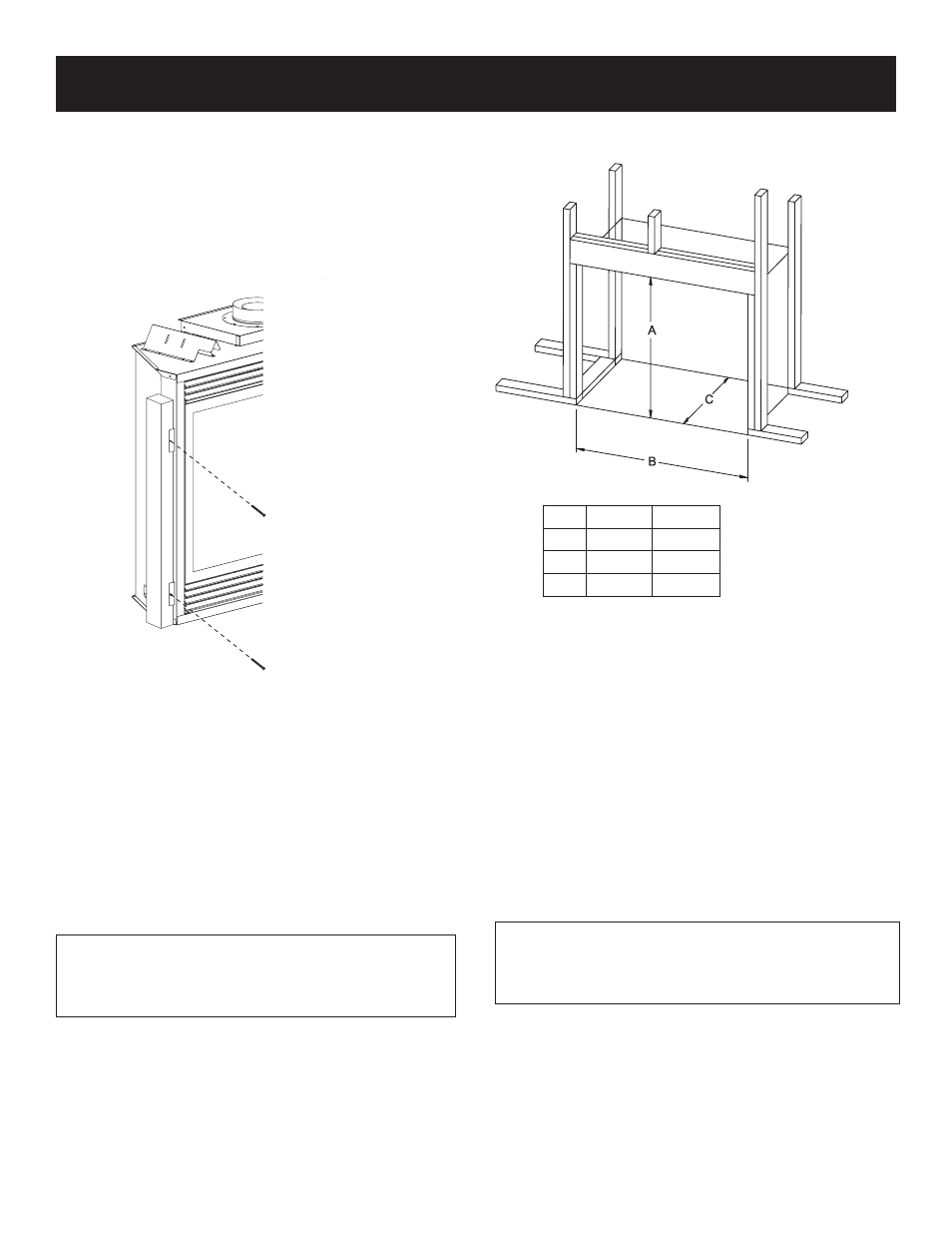

Note: For finishing to top of fireplace, refer to Figure 12.

DVP42

DVP48

"A" 37 3/4"

37 3/4"

"B" 43 3/8"

49 3/8"

"C" 19 7/8"

19 7/8"

Figure 11

Attention: If a base or mantel is not used and the appliance is

installed directly on carpeting, tile or other combustible material

other than wood flooring, it shall be installed on a metal or wood

panel extending the full width and depth of the appliance. The

vertical dimension in Figure 11 must be adjusted when a metal or

wood panel is placed beneath the appliance.
Finishing (Figures 12 and 13)

Finish the walls with the material of your choice. Figure 3 on

page 7 shows the minimum vertical and corresponding maximum

horizontal dimensions of mantels or other combustible projections

above the top front edge of the fireplace.

Only non-combustible materials may be used to cover the black

fireplace front.

Warning: When finishing the fireplace never obstruct or

modify the air inlet/outlet louvers in any manner. Provide

adequate clearances around air openings into the combustion

chamber.

Caution: If the joints between the finished wall and the fireplace

surround (top and sides) are sealed, a 300°F minimum sealant

material must be used. These joints are not required to be sealed.

Only non-combustible material (using 300°F minimum adhesive

if needed), can be applied as facing to the fireplace surround.

Flush Mount Mantel Installation (Figure 10)

The fireplace must extend 3/4" beyond finished wall surface when

using a flush mount mantel. Refer to Figure 10 to locate nailing

flanges on fireplace sides. Mark and drill two (2) 1/8" holes into

fireplace side to mount each nailing flange. Use eight (8) 1/2"

hex-head screws supplied in hardware package to attach nailing

flanges to fireplace sides.

Figure 10

Framing (Figure 11)

Fireplace framing can be built before or after the fireplace is set

in place. Framing should be positioned to accommodate wall

covering and fireplace facing material. The fireplace framing

should be constructed of 2 x 4 lumber or heavier. The framing

headers may rest on the fireplace standoffs. Refer to Figure 11 for

minimum framing dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND

VERIFY FRAMING METHODS, AND WALL COVERING

DETAILS BEFORE FRAMING CONSTRUCTION

BEGINS.

Framing dimension "A" includes a three inch clearance

for standoffs on firebox. After installing firebox into

framing, the finished wall surface must cover the three

inch opening above the firebox.

INSTALLATION (continued)

NAIL OR OTHER SUITABLE FASTENER
