HOW TO SET UP THE CONTROLS
The following chart (Diagram “B”) will explain how to set
up the controls on the Soundfield Management System.
But follow these instructions first.
1) The first thing you must do is measure two distances.
First measure the distance between the listening
position and one of the front speakers (D1 on
Diagram “A”), then measure the distance between
the listening position and the rear speakers, (D2 on
Diagram “A”). Subtract the two measurements, and
the resulting number is the difference. The bottom
scale of the chart shows the difference in distance.
See Diagram “A” for assistance, and Diagram “B” for
the actual chart.
Note: We do not recommend having the distance
between the listener and the rear speakers to be
greater than the front measurement.
2) Locate the measured difference on the bottom scale
of the graph (Diagram “B”), then follow the line up
to where it intersects with the horizontal line and
look to the left scale to see the level control setting
recommendation. The grayed section shows when
the Switch should be in Bi-Polar Mode, and the rest
of the chart shows the Di-Polar Mode as the
selected mode.
3) Always experiment with the controls, and adjust them
to your liking, the chart will give you a good starting
point, but each room is different, and depending on
the V2.0R's location, furniture placement and
materials in the room, adjustments may be necessary.

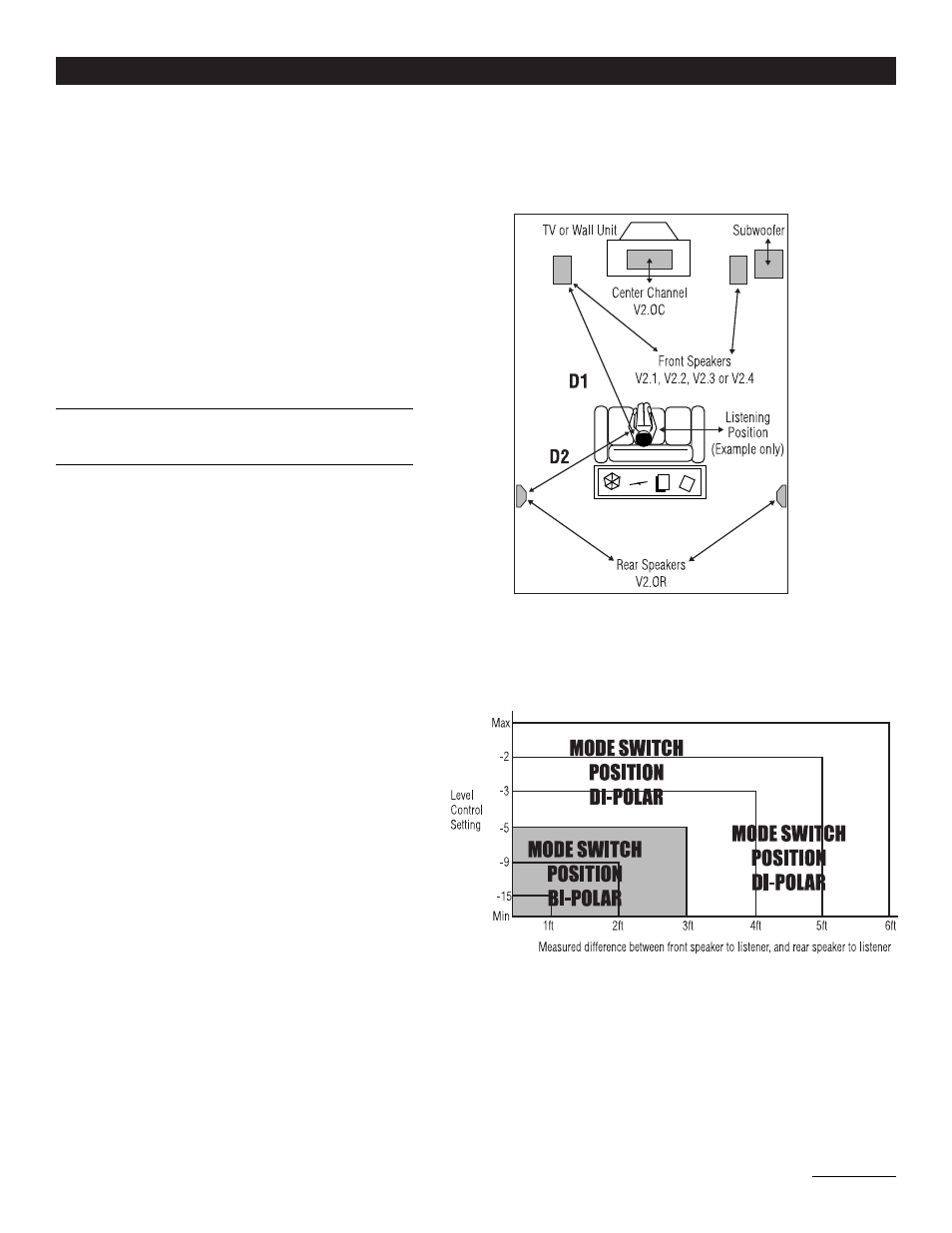

DIAGRAM A
DIAGRAM B
