10. DMX CHANNEL TRAITS
DMX Operation Notes:
The fixture will function in DMX mode whenever the unit is receiving a DMX signal. Please
note that this will override all manual settings.
This unit will keep and retain the last DMX command in the event of DMX signal failure. To
reset the fixture you must turn the power off.
DMX CHANNEL TRAITS
3-Channel mode: In this mode channel one controls all the red LEDs, channel two controls
all the green LEDs, and channels three controls all the blue LEDs.
CHANNEL 1:Red
CHANNEL 2:Green
CHANNEL 3:Blue

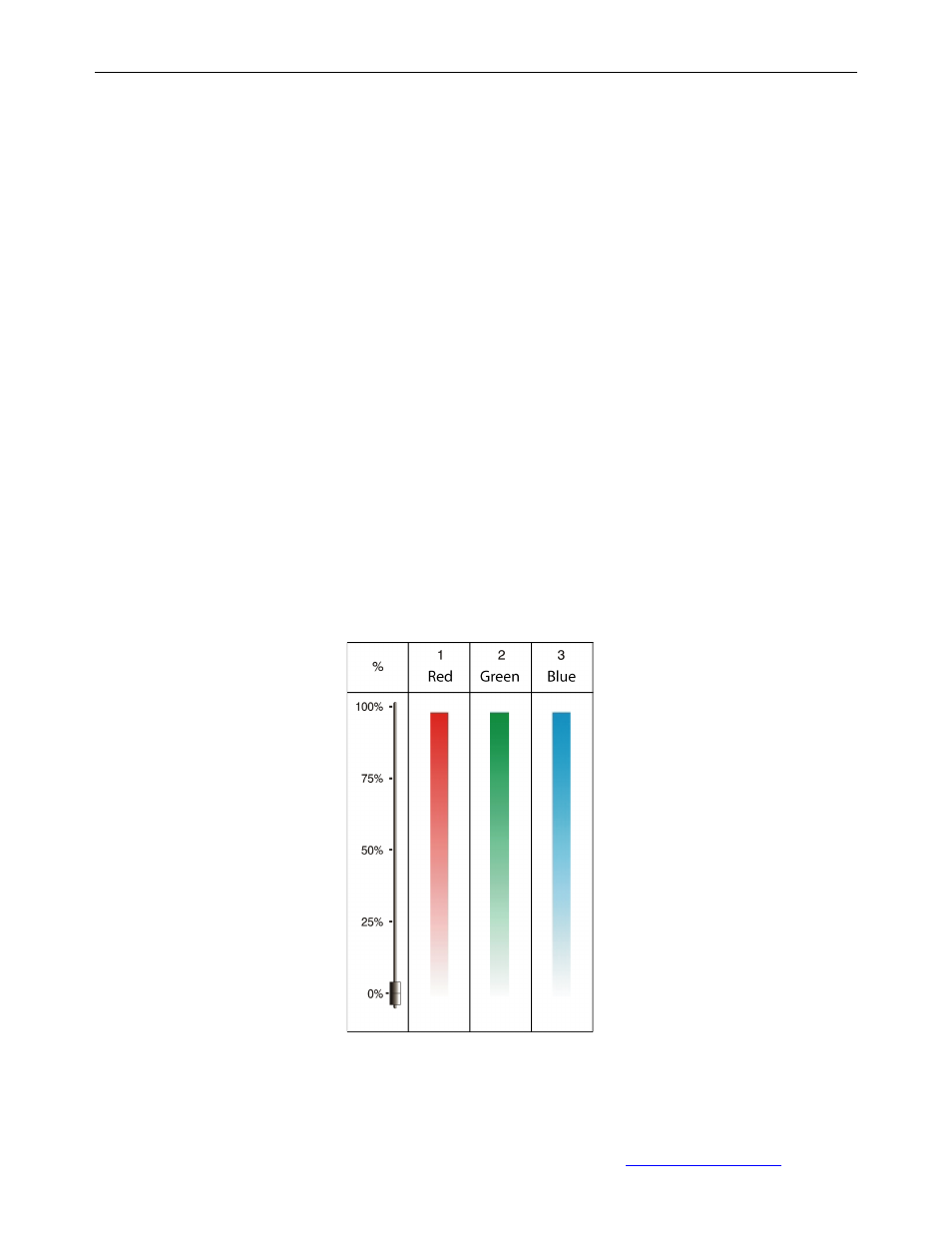

3-Channel Mode: The chart below details the DMX channel layout for 3-channel assignment.
