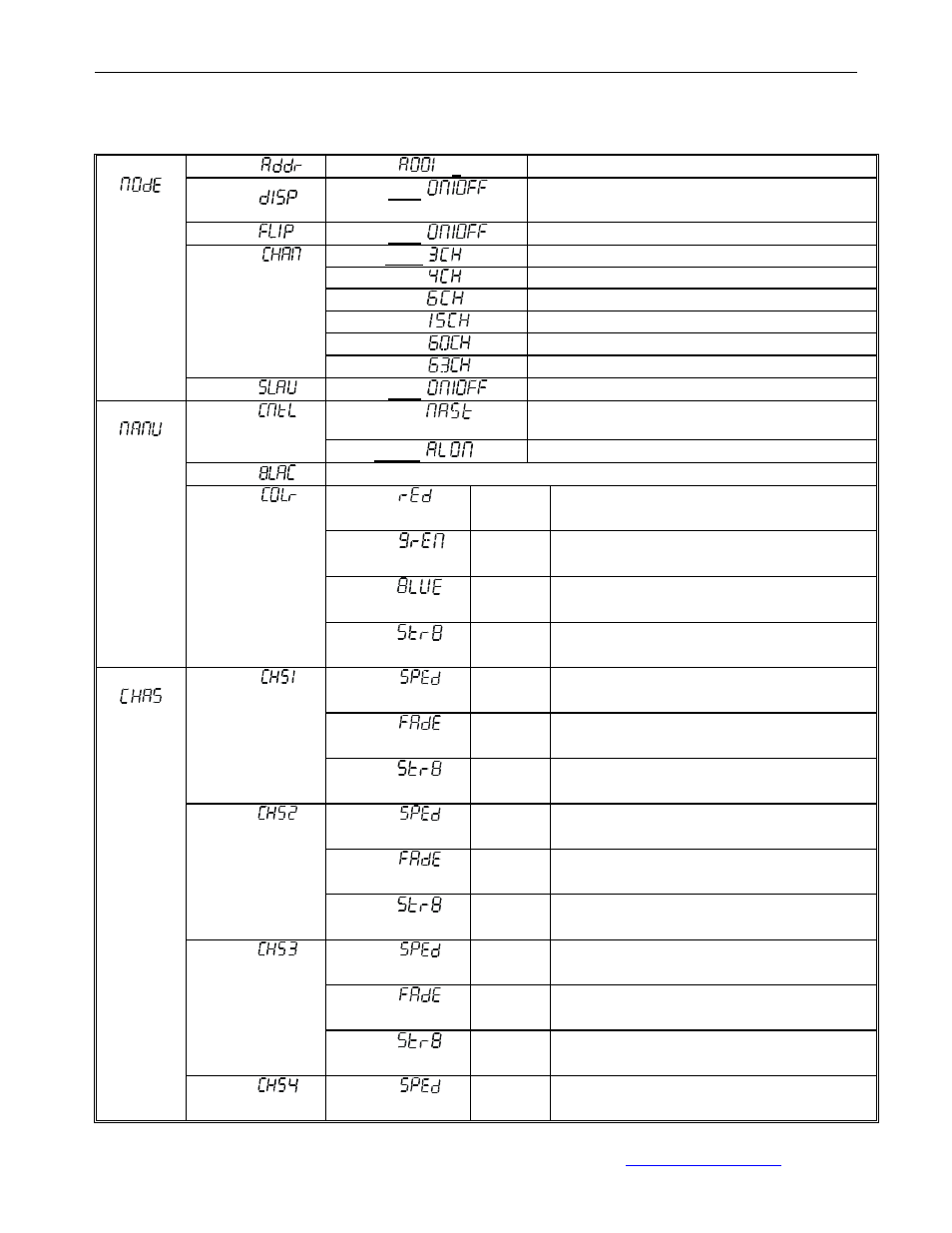

8. DISPLAY MENU
ADDR (
)
A001(
) (1-512)
Set the starting DMX address
DISP(
)
ON/OFF(
)
Set the display open or close when no
control after 2 minutes
FLIP(
)
ON/OFF(
)
Set the flip display
3 CH(
)
3 DMX CHANNELS (RGB)
4 CH(
)
4 DMX CHANNELS (RGB+MASTER DIM)
6 CH(
)
6 DMX CHANNELS
15 CH(
)
15 DMX CHANNELS
60 CH(
)
60 DMX CHANNELS
CHAN (
)
63 CH(
)
63 DMX CHANNELS
MODE
(
)
SLAV(
)
ON/OFF(
)
UNIT FUNCTIONS AS SLAVE
MAST(
)
Fixture will function as a master unit in
Master/Slave mode
CNTL(
)
ALON(
)
Fixture will function in “Stand Alone” mode
BLAC(
)
BLACKOUT – LED OUTPUT OFF
RED(
)
0-255
Manual adjustment of
RED levels
GREN(
)
0-255
Manual adjustment of
GREEN levels
BLUE(
)
0-255
Manual adjustment of
BLUE levels
MANU
(
)
COLR(
)
STRB(
)
0-255
Manual adjustment of
STROBE rate
SPED(
)
0-255
Adjust program 1 speed
FADE(
)
0-255
Adjust program 1 fade time
CHS1(
)
STRB(
)
0-255
Adjust strobe rate of program 1
SPED(
)
0-255
Adjust program 2 speed
FADE(
)
0-255
Adjust program 2 fade time
CHS2(
)
STRB(
)
0-255
Adjust strobe rate of program 2
SPED(
)
0-255
Adjust program 3 speed
FADE(
)
0-255
Adjust program 3 fade time
CHS3(
)
STRB(
)
0-255
Adjust strobe rate of program 3
CHAS
(
)
CHS4(
)
SPED(
)
0-255
Adjust program 4 speed
