CAUTION!

Be sure a qualified electrician performs all electrical
connections before attempting any operation.

Clamp Mounting

The Design LED 60 TriStrip™ provides a unique mounting bracket assembly that allows the

unit to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple

units to rigged together (see the illustration below). Regardless of the mounting option you

choose please refer to the safety guidelines in this manual to avoid damage to the unit

and/or injury to persons.

When mounting this fixture to truss be sure to secure an appropriately rated clamp to the

hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an

added safety measure be sure to attach at least one properly rated safety cable to the fixture.

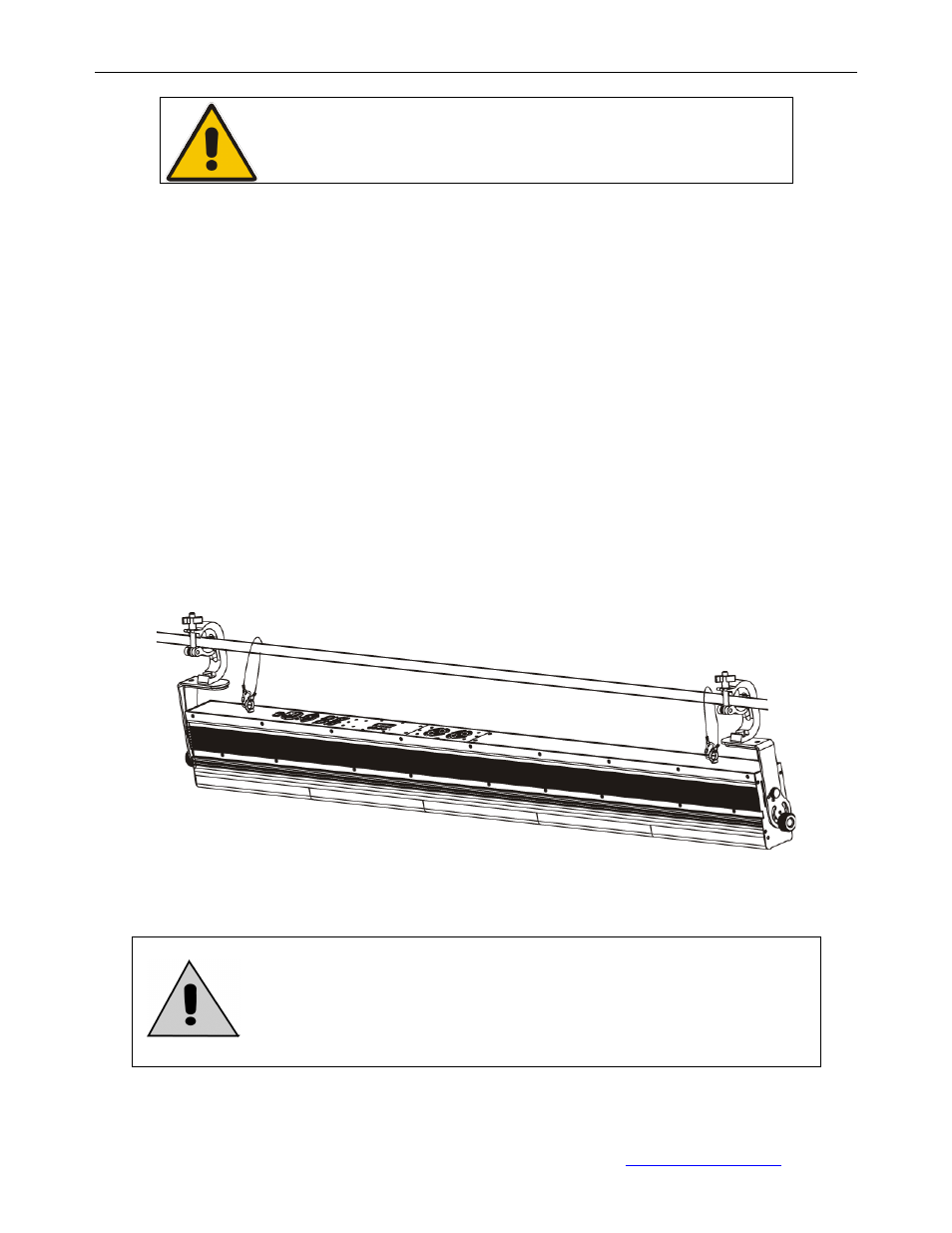

See illustration below.

Securing the Design LED 60 TriStrip™

Always secure your fixture with a safety cable when
suspending the unit from truss or other means. The fixture
provides a built-in rigging point for a safety cable as illustrated
above. Be sure to only use the designated rigging point for a
safety cable. Never secure a safety cable to the hanging
bracket.
