Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca.

15

www.ElationLighting.com

at 120 ohms, this cable is designed for DMX transmission and may be purchased from your

Elation dealer or at most professional lighting retailers. Your cables should be made with a

male and female XLR connector on either end of the cable. Also, remember that a DMX line

must be daisy chained and cannot be split, unless using an approved DMX splitter

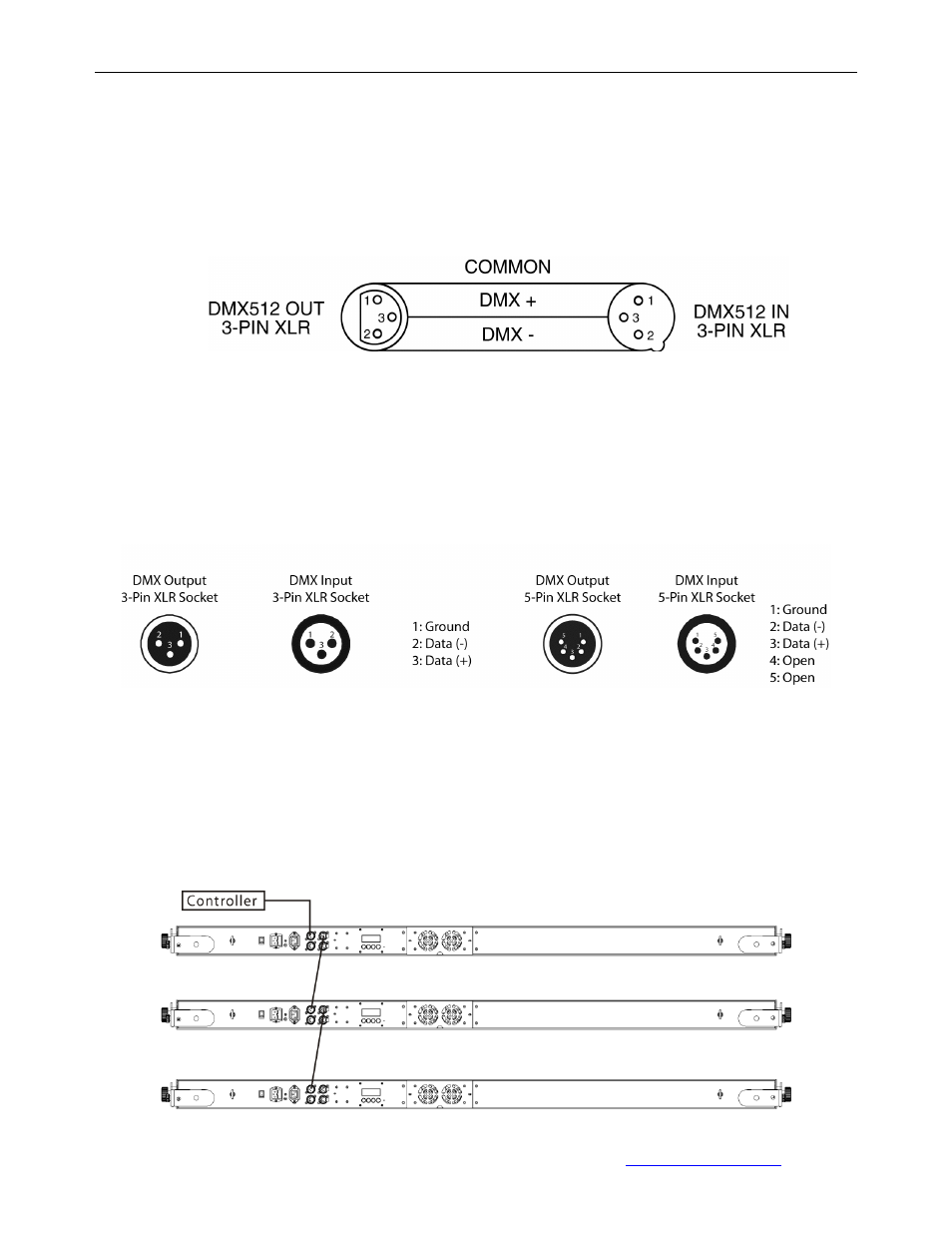

Be sure to follow the above figure when making your own cables. Do not use the ground lug

on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or

allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the

shield could cause a short circuit and erratic behavior.

DMX-512 control connection

Connect an XLR cable to the female XLR output of your controller and the other side to the

male XLR input of the fixture (Please refer to the diagram below.). You can chain multiple

moving heads together through serial linking. Remember to daisy-chain the “in” and “out”

data connections.
