-9-

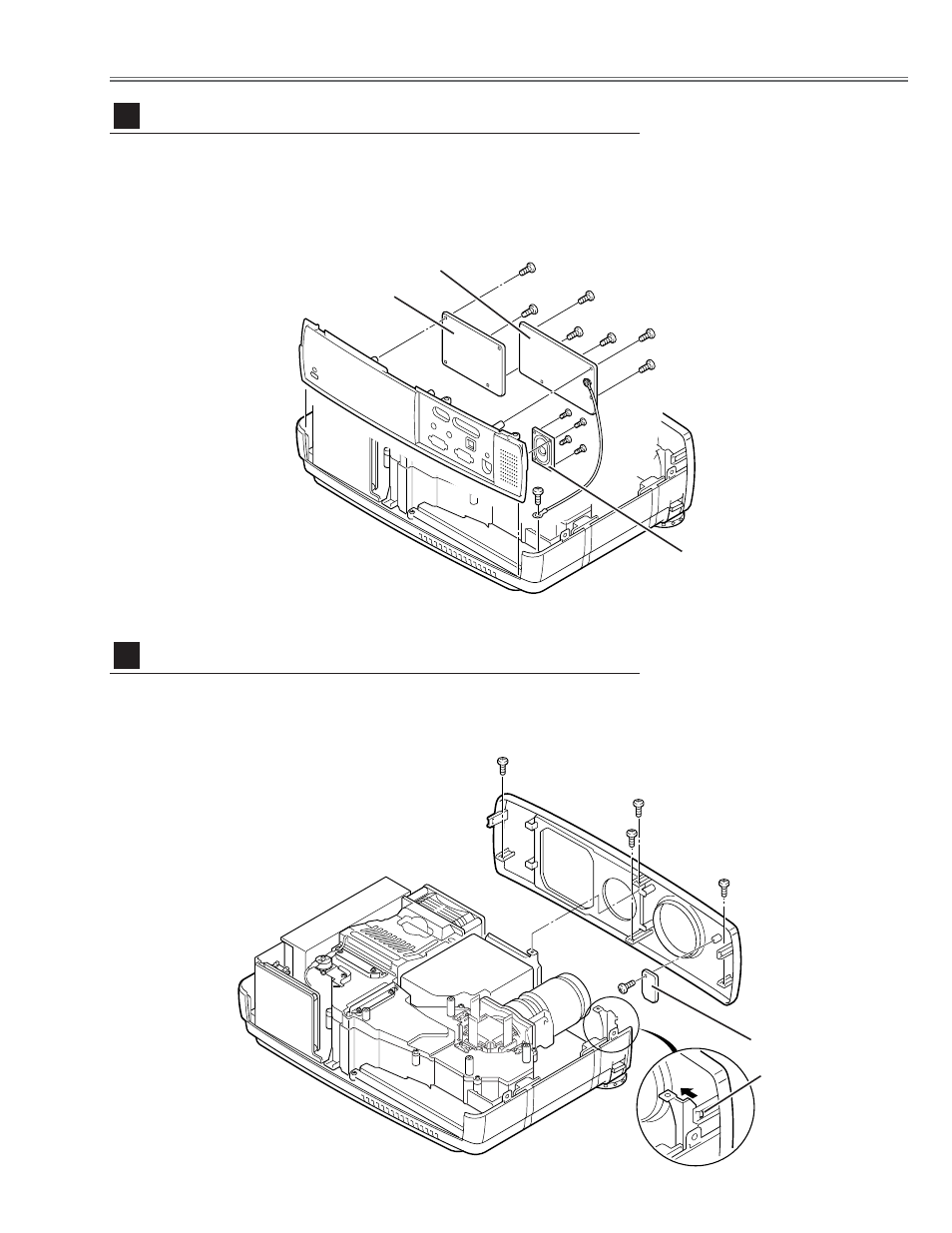

Mechanical Disassemblies

1

Remove 1 screw

A

to release a grounding wire.

2

Pull the Rear Panel ass’y upward.

3

Remove 4 screws

B

and take AV Board off.

4

Remove 4 screws

C

and take AV Sub Board off.

5

Remove 4 screws

D

and take Speaker off.

Fig.3

Fig.4

1

Remove 4 screws

A

and unhook 2 hooks

B

at the both of left and right

side, and the take the Front Panel ass’y off.

2

Remove 1 screw

C

to take the R/C Board off.

AV, AV Sub Board and Speaker removal

3

Front Panel and R/C Board removal

4

A

B

B

B

C

A

A

A

A

B

C

AV Sub board

AV board

Speaker

R/C board

B

C

C

D

D
